CV029IB-4N1 - 720p ECO Bullet Camera, 4 in 1 (HDTVI / HDCVI / AHD /…
search
  • CV029IB-4N1 - 720p ECO Bullet Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

CV029IB-4N1 - 720p ECO Bullet Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

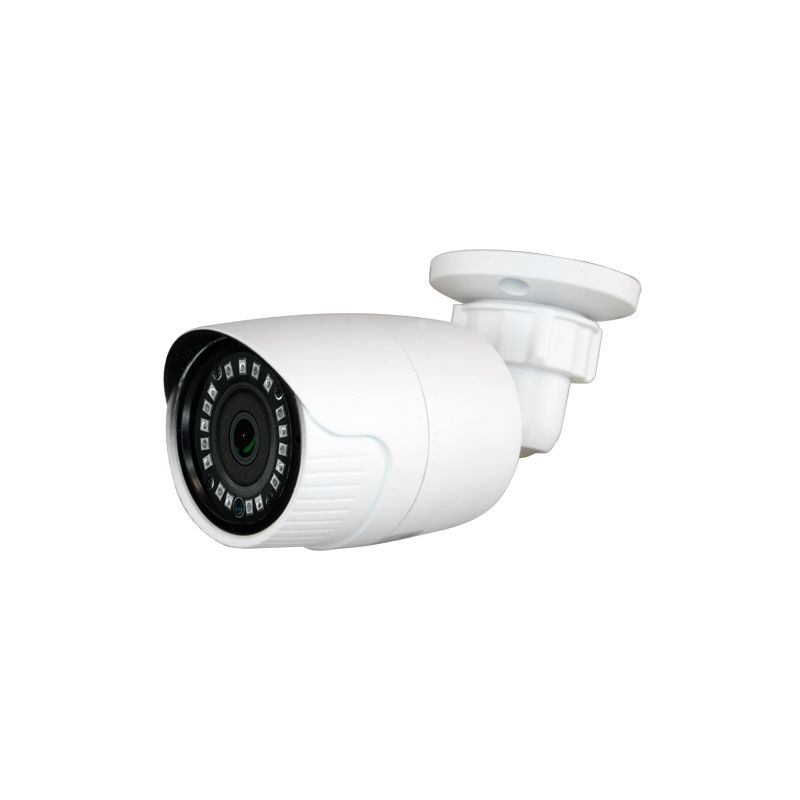

720p ECO Bullet Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/3" 1.3 Mpx PAS5130 - 3.6 mm Lens - 18 IR SMD LEDs Range 20 m - Weatherproof IP66
€22.75 €35.00 Save 35%
Tax included
Reference CV029IB-4N1
Brand Branded
Quantity
Out-of-Stock

Free shipping

Bullet camera with infrared, valid for outdoor use. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 720p ECO.

Consisting of a sensor 1/3" 1.3 Megapixel (model PAS5130) and DSP (model V20) that offers a resolution of 720P to 25 FPS in HDTVI / HDCVI / AHD formats and 1000 TVL in analogue CVBS format. Fixed lens of 3.6 mm with a diagonal vision field of 79º. 18 infrared SMD LEDs that activate automatically providing a sharp image at 0 Lux (total darkness) to a maximum distance of 20 m. The high sensitivity of the sensor allows a good performance at low light.

It has automatic IR Cut filter that permits clear, real colour, daytime images. It also incorporates Noise Reduction (2D-NR), Auto Exposure (AE) and Auto White Balance (AWB).

Video connection via BNC in formats HDTVI / HDCVI / AHD / CVBS switchable by switch by DIP combination.

The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. Integrated bracket for ceiling or wall. It incorporates a thread in the base of the support for easy installation.

Features

  • 720p ECO Bullet Camera
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/3" 1.3 Mpx PAS5130
  • 3.6 mm Lens
  • 18 IR SMD LEDs Range 20 m
  • Weatherproof IP66

Specs

Range 720p ECO
Image sensor 1/3" 1.3 Megapixel (model PAS5130)
DSP V20
Resolution HD 720p (1280x720) at 25 FPS / 1000 TVL
Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / 18 LEDs SMD IR (20 m)
Basic functions Day/Night (IR-CUT), 2D-NR, AE, AWB
Lens 3.6 mm (D: 79º)
Power DC 12 V / 450 mA max.
Degree of protection Weatherproof IP66
Temp. operation -10º C ~ +50º C
Dimensions 170 (D) x 58 (Ø) mm
Weight 320 g

Package content

  • Bullet camera 4 in 1
  • 3 plugs and 3 screws for mounting
  • Allen wrench
  • User instructions

Data sheet

Weight
320 g
320 g
Power
DC 12 V / 450 mA max.
Resolution
HD 720p (1280x720) at 25 FPS / 1000 TVL
Temp. operation
-10º C ~ +50º C
Degree of protection
Weatherproof IP66
Dimensions
170 (D) x 58 (Ø) mm
Power supply
DC 12 V / 450 mA max.
Range
720p ECO
Video output
1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor
1/3\" 1.3 Megapixel (model PAS5130)
DSP
V20
Minimum illumination
0 Lux / 18 LEDs SMD IR (20 m)
Basic functions
Day/Night (IR-CUT), 2D-NR, AE, AWB
Lens
3.6 mm (D: 79º)
