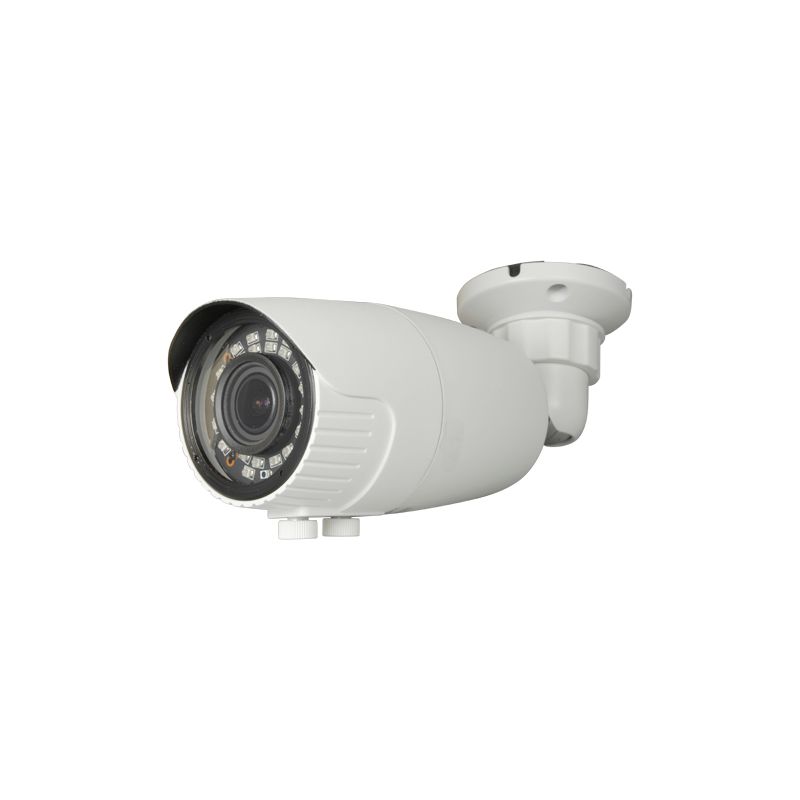

CV129VIB-4N1 - 720p ECO Bullet Camera, 4 in 1 (HDTVI / HDCVI / AHD /…
720p ECO Bullet Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/3" 1.3 Mpx PAS5130 - 2.8~12 mm Varifocal lens - 30 LEDs SMD Range 40 m - Weatherproof IP66
€31.20
€48.00
Save 35%
Tax included
Reference
CV129VIB-4N1
Brand
Branded
You might also like
Bullet camera with infrared, valid for outdoor use. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 720p ECO.
Consisting of a sensor 1/3" 1.3 Megapixel (model PAS5130) and DSP (model V20) that offers a resolution of 720P to 25 FPS in HDTVI / HDCVI / AHD formats and 1000 TVL in analogue CVBS format. Varifocal lens of 2.8 ~ 12 mm with a diagonal viewing angle of 94º to 25º. 30 infrared SMD LEDs that activate automatically providing a sharp image at 0 Lux (total darkness) to a maximum distance of 40 m.
It has automatic IR Cut filter that permits clear, real colour, daytime images. It also incorporates Noise Reduction (2D-NR), Auto Exposure (AE) and Auto White Balance (AWB).
Video connection via BNC in formats HDTVI / HDCVI / AHD / CVBS switchable by switch by DIP combination.
The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. Bracket for wall mount integrated.
Features
- 720p ECO Bullet Camera
- 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
- 1/3" 1.3 Mpx PAS5130
- 2.8~12 mm Varifocal lens
- 30 LEDs SMD Range 40 m
- Weatherproof IP66
Specs
| Range | 720p ECO |
| Image sensor | 1/3" 1.3 Megapixel (model PAS5130) |
| DSP | V20 |
| Resolution | HD 720p (1280x720) at 25 FPS / 1000 TVL |
| Video output | 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS |
| Minimum illumination | 0 Lux / 30 LEDs SMD IR (40 m) |
| Basic functions | Day/Night (IR-CUT), 2D-NR, AE, AWB |
| Lens | Varifocal 2.8 ~ 12 mm (94º ~ 25º) |
| Power | DC 12 V / 450 mA max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -20º C ~ +45º C |
| Dimensions | 260 (H) x 80 (Ø) mm |
| Weight | 600 g |
Package content
- Bullet Camera
- 3 plugs and 3 screws for mounting
- Allen wrench
- User instructions
Data sheet
- Weight
- 600 g
600 g - Power
- DC 12 V / 450 mA max.
- Resolution
- HD 720p (1280x720) at 25 FPS / 1000 TVL
- Temp. operation
- -20º C ~ +45º C
- Degree of protection
- Weatherproof IP66
- Dimensions
- 260 (H) x 80 (Ø) mm
- Power supply
- DC 12 V / 450 mA max.
- Range
- 720p ECO
- Video output
- 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
- Image sensor
- 1/3\" 1.3 Megapixel (model PAS5130)
- DSP
- V20
- Minimum illumination
- 0 Lux / 30 LEDs SMD IR (40 m)
- Basic functions
- Day/Night (IR-CUT), 2D-NR, AE, AWB
- Lens
- Varifocal 2.8 ~ 12 mm (94º ~ 25º)
720p ECO Bullet Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/3" 1.3 Mpx PAS5130 - 2.8~12 mm Varifocal lens - 30 LEDs SMD Range 40 m - Weatherproof IP66
