CV581KW-F4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 1080p (25…
search
  • CV581KW-F4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 1080p (25…

CV581KW-F4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 1080p (25…

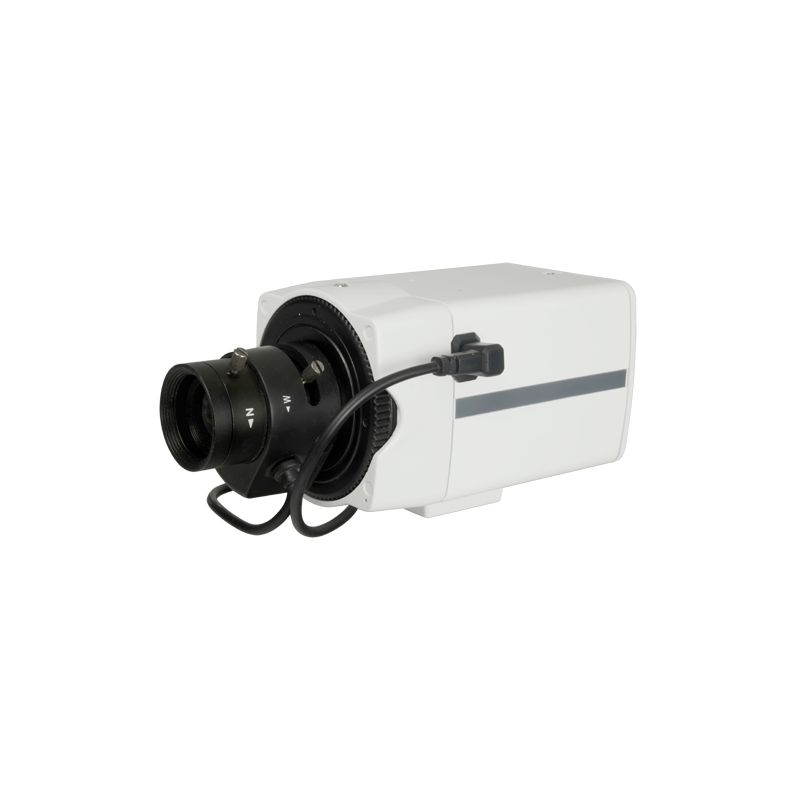

Box Camera HDTVI, HDCVI, AHD & Analogue - 1080p (25 fps) - 1/3" Panasonic© 2.0 Megapixel CMOS - Supports manual lenses and DC - Minimum illumination 0.01 Lux - OSD menu with real WDR
€40.30 €62.00 Save 35%
Tax included
Reference CV581KW-F4N1
Brand Branded
Quantity
Out-of-Stock

Free shipping

You might also like

  • Box Camera HDTVI, HDCVI, AHD & Analogue
  • ULTRA Range
  • 1/3" Panasonic© 2.0 Megapixel
  • MN34227+EN773E
  • HD 1080P (1920x1080)
  • Output 4in1
  • Accepts manual lens and DC iris (not included)
  • Colour 0.1 Lux / B&W 0.01 Lux
  • WDR (12FPS)
  • SenseUp
  • 3DNR
  • ATR
  • IR Cut

Features

  • Box Camera HDTVI, HDCVI, AHD & Analogue
  • 1080p (25 fps)
  • 1/3" Panasonic© 2.0 Megapixel CMOS
  • Supports manual lenses and DC
  • Minimum illumination 0.01 Lux
  • OSD menu with real WDR

Specs

Range 1080p ULTRA
Image sensor 1/3" Panasonic© 2.0 Megapixel (model MN34227)
DSP EN773E
Resolution HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Video output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Minimum illumination 0.1 Lux (Colour), 0.01 Lux (B/W)
Basic functions OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions WDR, Shutter control, SenseUp, ACE, AE, 3D-NR, AWB, AGC, Mask, MD, Defog
Lens Manual / Auto Iris (DC); mount for lenses type C or CS (not included)
Power DC 12 V / 1000 mA max.
Degree of protection Suitable for interior or installed in housing for exterior
Temp. operation -10º C ~ +50º C
Dimensions 110 (D) x 65 (W) x 77 (H) mm
Weight 300 g

Package content

  • 4in1 Box Camera
  • User instructions

Data sheet

Weight
300 g
300 g
Power
DC 12 V / 1000 mA max.
Resolution
HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Temp. operation
-10º C ~ +50º C
Degree of protection
Suitable for interior or installed in housing for exterior
Dimensions
110 (D) x 65 (W) x 77 (H) mm
Power supply
DC 12 V / 1000 mA max.
Range
1080p ULTRA
Video output
1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS / 1 x BNC (CVBS PAL system)
Image sensor
1/3\" Panasonic© 2.0 Megapixel (model MN34227)
DSP
EN773E
Minimum illumination
0.1 Lux (Colour), 0.01 Lux (B/W)
Basic functions
OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions
WDR, Shutter control, SenseUp, ACE, AE, 3D-NR, AWB, AGC, Mask, MD, Defog
Lens
Manual / Auto Iris (DC), mount for lenses type C or CS (not included)
