SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 9429 AND id_lang = 1 B581SW-5U4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 5 MP…
  • -35%

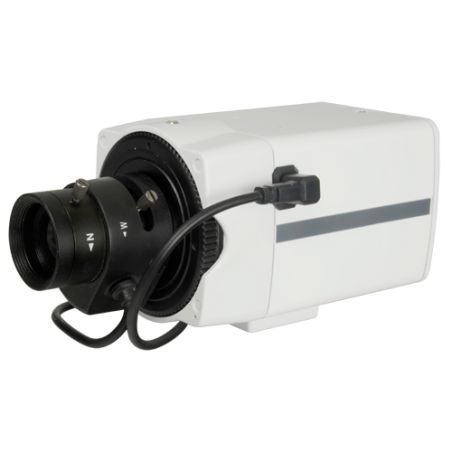

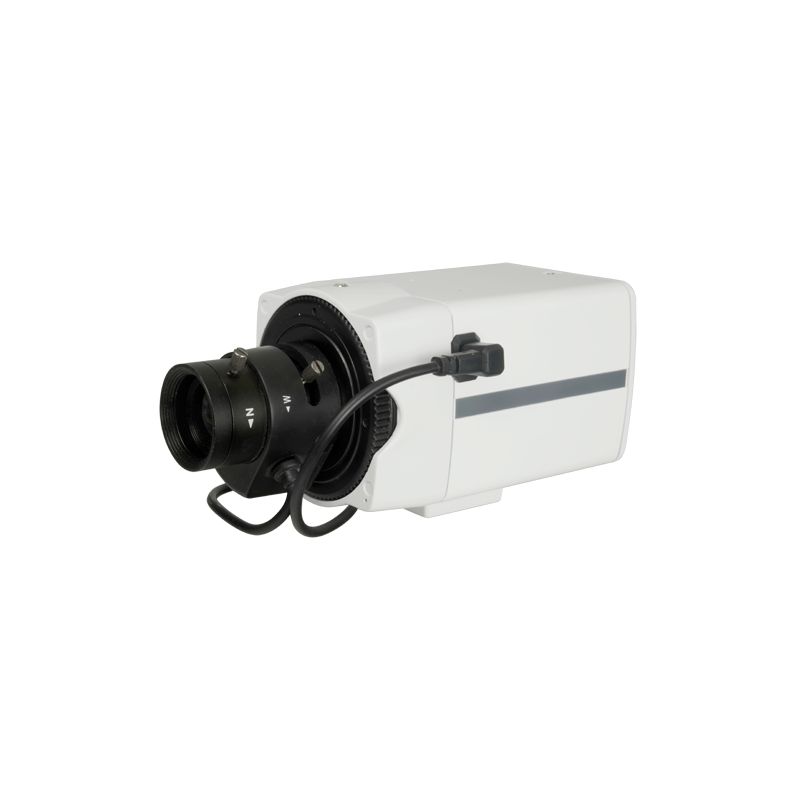

B581SW-5U4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 5 MP…
search
  • B581SW-5U4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 5 MP…

B581SW-5U4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 5 MP…

Box Camera HDTVI, HDCVI, AHD & Analogue - 5 MP (25/30 fps) - 1/2.8" 5 MP Sony Progressive Scan CMOS - Supports manual lenses and DC - Minimum illumination 0.01 Lux Color/ 0 Lux IR ON - OSD menu with WDR | Starlight
€65.00 €100.00 Save 35%
Tax included
Reference B581SW-5U4N1
Brand Branded
Quantity
Available in 24/48h

Free shipping
B581SW-5U4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 5 MP…

B581SW-5U4N1 - Box Camera HDTVI, HDCVI, AHD & Analogue, 5 MP…

€65.00 €100.00 Save 35%

You might also like

  • Box Camera HDTVI, HDCVI, AHD & Analogue
  • ULTRA Range
  • 1/2.8" 5.1 MP Sony Progressive Scan CMOS
  • IMX335+EN781
  • 5 Mpx (2592x1944)
  • Output 4in1
  • Accepts manual lens and DC iris (not included)
  • Colour 0.01 Lux / B&W 0 Lux
  • WDR
  • Starlight
  • 3DNR
  • OSD Menu
  • IR Cut

Features

  • Box Camera HDTVI, HDCVI, AHD & Analogue
  • 5 MP (25/30 fps)
  • 1/2.8" 5 MP Sony Progressive Scan CMOS
  • Supports manual lenses and DC
  • Minimum illumination 0.01 Lux Color/ 0 Lux IR ON
  • OSD menu with WDR | Starlight

Specs

Range 5 Mpx ULTRA
Image sensor 1/2.8" 5 MP Sony Progressive CMOS
DSP EN781
Resolution 5 Mpx, 1080p at 25/30 FPS; 720p at 25/30/50/60 FPS
Video output 1 x switchable BNC HDTVI / HDCVI / AHD / CVBS / 1 x BNC (CVBS PAL system)
Minimum illumination 0.01 Lux (Colour), 0 Lux (B/W)
Starlight Support
Basic functions OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions WDR, Shutter control, SenseUp, ACE, AE, 3D-NR, AWB, AGC, Mask, MD, Defog
Lens Manual / Auto Iris (DC); mount for lenses type C or CS (not included)
Power DC 12 V / 1000 mA max.
Degree of protection Suitable for interior or installed in housing for exterior
Temp. operation -10º C ~ +50º C
Dimensions 110 (D) x 65 (W) x 77 (H) mm
Weight 300 g

Package content

  • 4in1 Box Camera
  • User instructions

Data sheet

Weight
300 g
300 g
Power
DC 12 V / 1000 mA max.
Resolution
5 MP (2592x1944) a 25/30 FPS / CVBS 1000TVL
5 Mpx, 1080p at 25/30 FPS, 720p at 25/30/50/60 FPS
Temp. operation
-10º C ~ +50º C
Degree of protection
Suitable for interior or installed in housing for exterior
Dimensions
110 (D) x 65 (W) x 77 (H) mm
Power supply
DC 12 V / 1000 mA max.
Range
5 Mpx ULTRA
Video output
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS / 1 x BNC (CVBS PAL system)
Image sensor
1/2.8\" 5 MP Sony Progressive CMOS
DSP
EN781
Minimum illumination
0.01 Lux (Colour), 0 Lux (B/W)
Basic functions
OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions
WDR, Shutter control, SenseUp, ACE, AE, 3D-NR, AWB, AGC, Mask, MD, Defog
Lens
Manual / Auto Iris (DC), mount for lenses type C or CS (not included)
Starlight
Support
