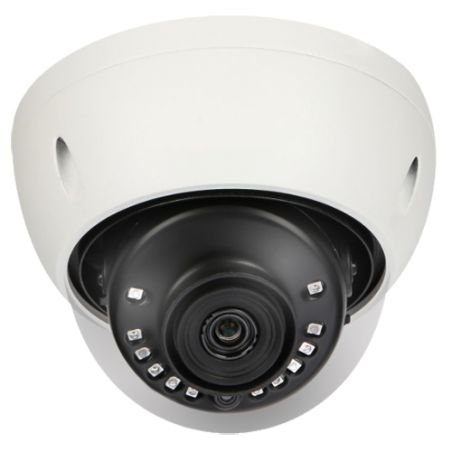

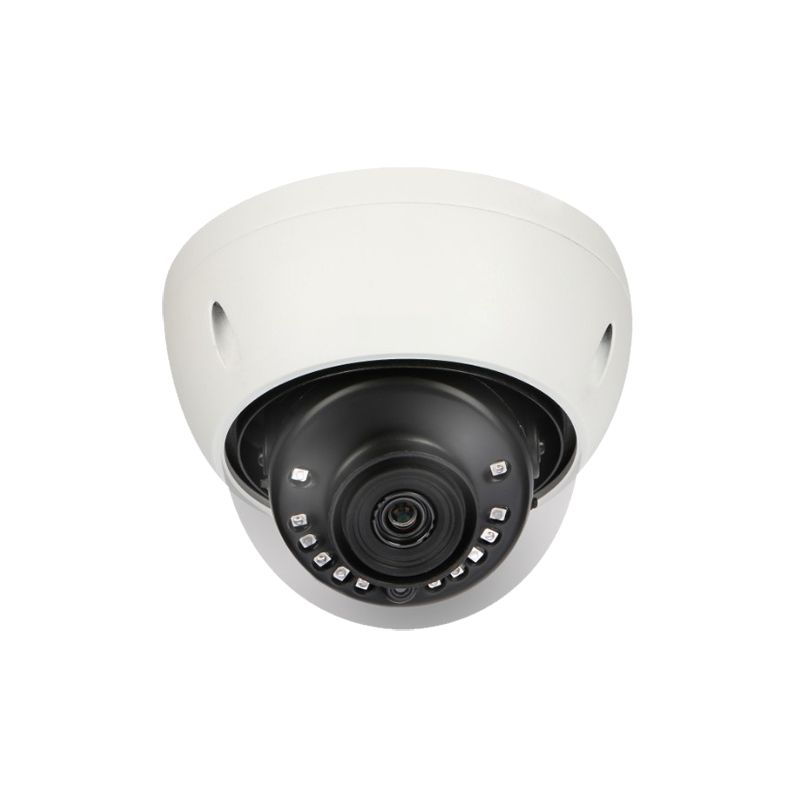

X-Security XS-D843W-8P4N1 - HDTVI, HDCVI, AHD and Analog X-Security Dome Camera,…
search
  • X-Security XS-D843W-8P4N1 - HDTVI, HDCVI, AHD and Analog X-Security Dome Camera,…

X-Security XS-D843W-8P4N1 - HDTVI, HDCVI, AHD and Analog X-Security Dome Camera,…

HDTVI, HDCVI, AHD and Analog X-Security Dome Camera - 1/2.7" CMOS 8 Megapixel - 2.8 mm Lens - WDR (120dB) - IR 30m - Waterproof IP67 | Anti-vandal IK10
€65.00 €100.00 Save 35%
Tax included
Reference XS-D843W-8P4N1
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-D843W-8P4N1 - HDTVI, HDCVI, AHD and Analog X-Security Dome Camera,…

X-Security XS-D843W-8P4N1 - HDTVI, HDCVI, AHD and Analog X-Security Dome Camera,…

€65.00 €100.00 Save 35%

You might also like

  • X-Security
  • HDTVI, HDCVI, AHD and Analog Dome Camera
  • PRO Range
  • 1/2.7" CMOS
  • 8Mpx (3840x2160)
  • Output 4in1
  • 2.8 mm Lens
  • B/W 0 Lux
  • IR Array Range 30 m
  • WDR (120dB)
  • IR Cut
  • Weatherproof IP67
  • Vandal proof IK10

Features

  • HDTVI, HDCVI, AHD and Analog X-Security Dome Camera
  • 1/2.7" CMOS 8 Megapixel
  • 2.8 mm Lens
  • WDR (120dB)
  • IR 30m
  • Waterproof IP67 | Anti-vandal IK10

Specs

Brand X-Security
Image sensor 1/2.7” Progressive CMOS
Maximum resolution 8 Megapixel (3840x2160)
Main Stream rate 8 Mpx(1 ~ 15fps),5 <Mpx(1 ~ 20fps),4 Mpx(1 ~ 25/30fps)
Lens 2.8 mm (H105º)
Minimum illumination 0.03Lux/F1.7 (Color,1/30s,30IRE)
Infrared lighting 0 Lux / IR LEDs Array (30 m)
Image improvements WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, Motion Detection, ROI
Day / Night Removable mechanical ICR filter
Alarm No
Audio No
Power DC 12 V / 400 mA
Degree of protection Waterproof IP67 | Anti-vandal IK10
Temp. operation -40º C ~ +60º C
Dimensions 110 (Ø) x 81 (h) mm
Weight 320 g

Package content

  • 4n1 X-SECURITY Dome Camera
  • 3 plugs and 3 screws for mounting
  • Installation template
  • User instructions

Data sheet

Weight
320 g
Power
DC 12 V / 400 mA
Temp. operation
-40º C ~ +60º C
Degree of protection
Waterproof IP67 | Anti-vandal IK10
Dimensions
110 (Ø) x 81 (h) mm
Power supply
DC 12 V / 400 mA
Alarm
No
Audio
No
Image sensor
1/2.7” Progressive CMOS
Minimum illumination
0.03Lux/F1.7 (Color,1/30s,30IRE)
Lens
2.8 mm (H105º)
Maximum resolution
8 Megapixel (3840x2160)
Infrared lighting
0 Lux / IR LEDs Array (30 m)
Image improvements
WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, Motion Detection, ROI
Day / Night
Removable mechanical ICR filter
Main Stream rate
8 Mpx (1 ~ 15fps), 5 Mpx(1 ~ 20fps), 4 Mpx(1 ~ 25/30fps)
8 Mpx(1 ~ 15fps),5 ≤Mpx(1 ~ 20fps),4 Mpx(1 ~ 25/30fps)
Degré de protection
Étanche IP67 | Anti-vandale IK10
Temp. fonctionnement
-40º C ~ +60º C
Taux Main Stream
8 Mpx(1 ~ 15fps),5 Mpx(1 ~ 20fps),4 Mpx(1 ~ 25/30fps)
