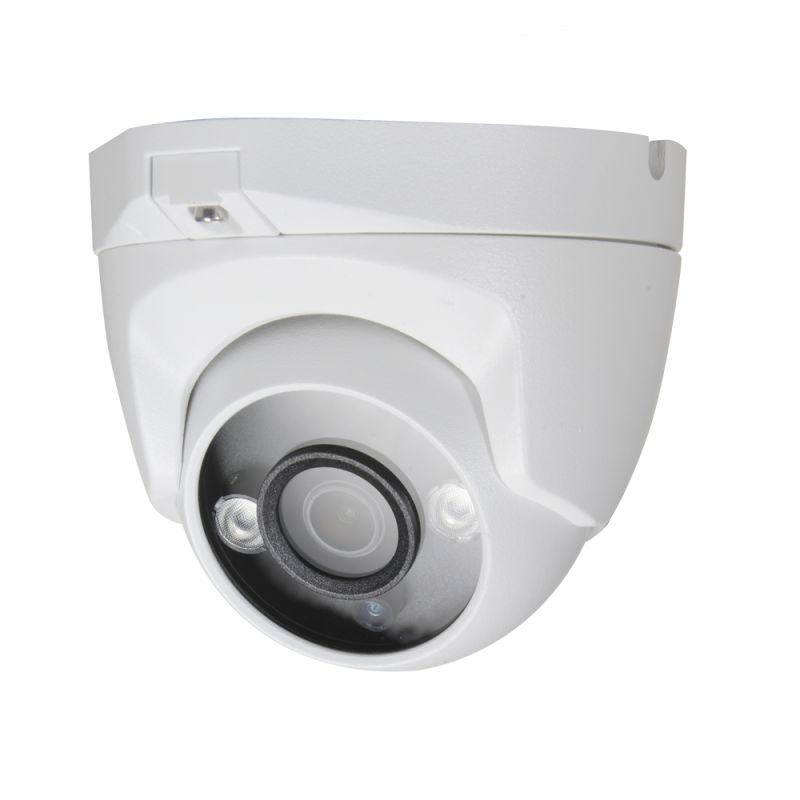

DM821IB-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

Dome camera with infrared, suitable for indoor. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p ECO.

Composed by a sensor 1/2.7" 2.1 megapixel (model BG0806) and DSP (model V30), that offers a resolution of 1080p to 25 FPS. Fixed lens of 3.6 mm with a diagonal vision field of 79º. 2 infrared LEDs Array that are activated automatically giving a sharp image at 0 Lux (total darkness) at a maximum distance of 30 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

• AE Shutter, automatic exposure control to optimize the input of received light
• 2D-NR, digital noise reduction system without loss of focus
• AWB, automatic white balance for true colours

Video connection via BNC in HD formats HDTVI / HDCVI / AHD / CVBS, switchable by switch by DIP combination.

The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. It has a sphere with three axes of rotation (3AXIS) that allow easy and accurate adjustment of the viewing angle, with wall or ceiling installation. It incorporates a screw connecting the base with the camera structure, for easy installation.

Features

• 1080p ECO Dome Camera
• 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
• 1/2.7" 2.1 Mpx BG0806
• 3.6 mm Lens
• 2 LEDs Array IR Range 30 m
• Weatherproof IP66

Specs

Package content

• Dome camera 4 in 1
• 4 plugs and 4 screws for mounting
• Allen wrench
• User instructions
• Easy installation template
