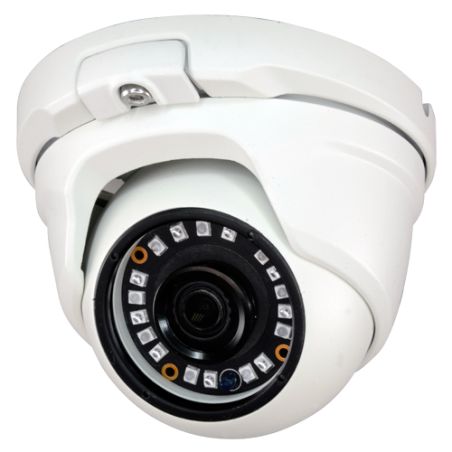

Dome camera with infrared, valid for exterior. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p ECO.

1/2.7" PrimeSensor© 2.0 Megapixel (model PS5220) & DSP (model V30) with a resolution of 1080p @ 25 FPS. Fixed lens of 3.6 mm with a diagonal vision field of 79º. 18 infrared SMD LEDs that activate automatically providing a sharp image at 0 Lux (total darkness) to a maximum distance of 20 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

• AE Shutter, automatic exposure control to optimize the input of received light
• 2D-NR, digital noise reduction system without loss of focus
• AWB, automatic white balance for true colours

BNC video connection in HD formats HDTVI / HDCVI / AHD and in CVBS standard analogue format for video test, commutable by switch by combining 3 threads.

The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. It has three axes (3AXIS) that allow easy and accurate adjustment of the viewing angle, with ceiling or wall installation. It incorporates a screw connecting the base with the camera structure, for easy installation.

Features

• 1080p ECO Dome Camera
• 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
• 1/2.7" PrimeSensor© PS5220
• 3.6 mm Lens
• 18 IR SMD LEDs Range 20 m
• OSD remote menu from DVR

Specs

Package content

• - 4 in 1 Dome camera
• - 4 plugs and 4 screws for mounting
• - Allen wrench
• - User instructions
