SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 3187 AND id_lang = 1 DM957VI-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…
  • -35%
DM957VI-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…
search
  • DM957VI-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

DM957VI-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

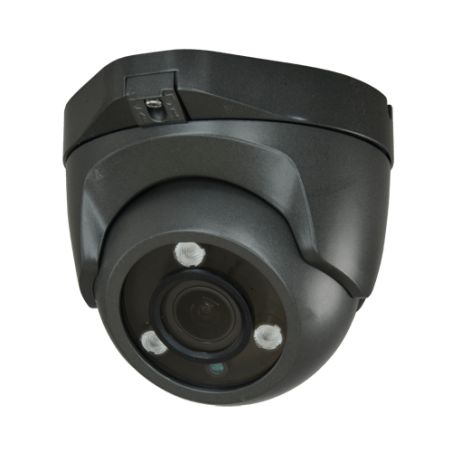

1080p ECO Dome Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" 2.1 Mpx PS5220 - 2.8~12 mm Varifocal lens - 3 LEDs Array IR Range 40 m - OSD remote menu from DVR
€48.10 €74.00 Save 35%
Tax included
Reference DM957VI-F4N1
Brand Branded
Quantity
Available in 24/48h

Free shipping
DM957VI-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

DM957VI-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

€48.10 €74.00 Save 35%

You might also like

Cámara domo varifocal con infrarrojos, apta para exterior. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p ECO.

Composed by a sensor 1/2.7" 2.1 megapixel (model PS5220) and DSP (model V30), that offers a resolution of 1080p to 25 FPS. Varifocal lens of 2.8 ~ 12 mm with a diagonal viewing angle of 94º to 25º. 3 infrared LEDs Array that are activated automatically giving a sharp image at 0 Lux (total darkness) at a maximum distance of 40 m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Thanks to its DSP it has OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

  • AE Shutter, automatic exposure control to optimize the input of received light
  • 2D-NR, digital noise reduction system without loss of focus
  • AWB, automatic white balance for true colours

Video connection via BNC in HD formats HDTVI / HDCVI / AHD / CVBS, switchable by switch by DIP combination.

The housing is made of aluminum and is weatherproof according to protocol IP66, which makes it suitable for both indoor and outdoor. It has a sphere with three axes of rotation (3AXIS) that allow easy and accurate adjustment of the viewing angle, with wall or ceiling installation. It incorporates a screw connecting the base with the camera structure, for easy installation.

Features

  • 1080p ECO Dome Camera
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.7" 2.1 Mpx PS5220
  • 2.8~12 mm Varifocal lens
  • 3 LEDs Array IR Range 40 m
  • OSD remote menu from DVR

Specs

Range 1080p ECO
Image sensor 1/2.7" 2.1 Megapixel (model PS5220)
DSP V30
Resolution HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Video output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / 3 IR LEDs Array (40 m)
Basic functions OSD menu (remote), Day/Night with IR-CUT (ICR)
Configurable OSD functions DWDR, 2D-NR, AE, AWB, AGC
Lens Varifocal 2.8 ~ 12 mm (D: 94º ~ 25º)
Power DC 12 V / 450 mA
Degree of protection Weatherproof IP66
Temp. operation -10º C ~ +60º C
Dimensions 95 (D) x 120 (Ø) mm
Weight 500 g

Package content

  • Dome camera 4 in 1
  • 4 plugs and 4 screws for mounting
  • Allen wrench
  • User instructions
  • Easy installation template

Data sheet

Weight
500 g
500 g
Power
DC 12 V / 450 mA
Resolution
HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Temp. operation
-10º C ~ +60º C
Degree of protection
Weatherproof IP66
Dimensions
95 (D) x 120 (Ø) mm
Power supply
DC 12 V / 450 mA
Range
1080p ECO
Video output
1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Image sensor
1/2.7\" 2.1 Megapixel (model PS5220)
DSP
V30
Minimum illumination
0 Lux / 3 IR LEDs Array (40 m)
Basic functions
OSD menu (remote), Day/Night with IR-CUT (ICR)
Configurable OSD functions
DWDR, 2D-NR, AE, AWB, AGC
Lens
Varifocal 2.8 ~ 12 mm (D: 94º ~ 25º)
