DM940-Q4N1 - Dome Camera 5Mpx/4Mpx Range ECO, 4 in 1 (HDTVI / HDCVI…
search
  • DM940-Q4N1 - Dome Camera 5Mpx/4Mpx Range ECO, 4 in 1 (HDTVI / HDCVI…

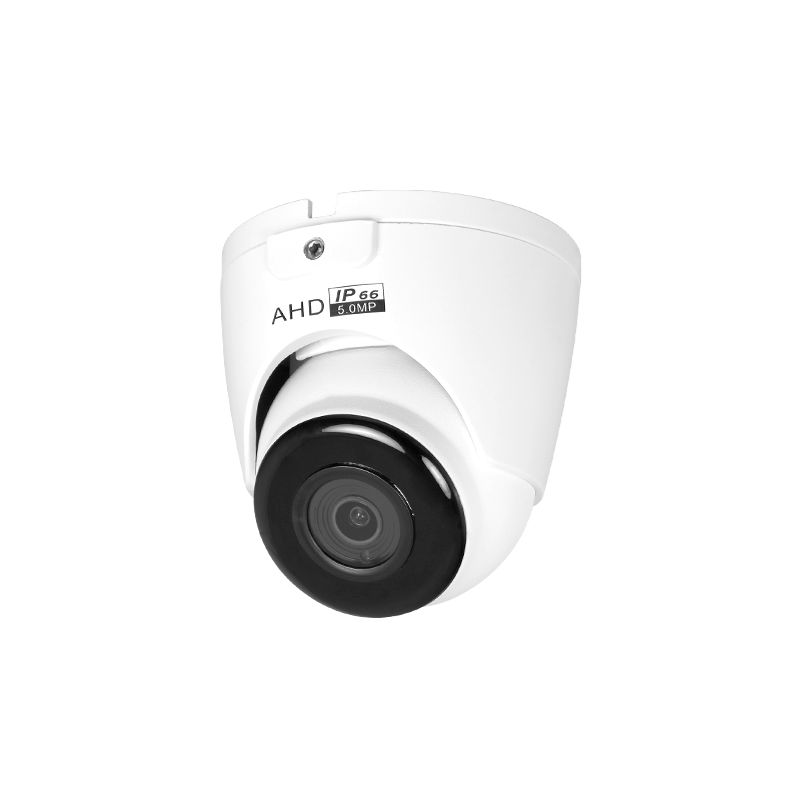

DM940-Q4N1 - Dome Camera 5Mpx/4Mpx Range ECO, 4 in 1 (HDTVI / HDCVI…

Dome Camera 5Mpx/4Mpx Range ECO - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" SmartSens© SC5035+FH8538M - 2.8 mm Lens - IR LEDs SMD Range 30 m - OSD remote menu from DVR
€31.20 €48.00 Save 35%
Tax included
Reference DM940-Q4N1
Brand Branded
Quantity
Out-of-Stock

Free shipping

You might also like

  • HDTVI, HDCVI, AHD and Analogue dome camera
  • ECO Range
  • Sensor 1/2.7" 5.0Mpx CMOS
  • SC5035+FM8538M
  • 5 Mpx (2592x1944)
  • Output 4in1
  • 2.8 mm Lens
  • 0 Lux - IR SMD Range 30 m
  • IR Cut
  • Weatherproof IP66

Features

  • Dome Camera 5Mpx/4Mpx Range ECO
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.7" SmartSens© SC5035+FH8538M
  • 2.8 mm Lens
  • IR LEDs SMD Range 30 m
  • OSD remote menu from DVR

Specs

Range 5Mpx/4Mpx ECO
Image sensor 1/2.7" SmartSens© SC5035
DSP FH8538M
Resolution Default: 4Mpx@25FPS (HDTVI, HDCVI, AHD)
Optional via menu: 5Mpx@20FPS (HDTVI, AHD)
Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / IR SMD LEDs (30 m)
Basic functions OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions AE, 2DNR, AWB
Lens 2.8 mm
Power DC 12 V / 4.2 W max.
Degree of protection Weatherproof IP66
Temp. operation -30º C ~ +55º C
Dimensions 89.5 (D) x 100.5 (Ø) mm
Weight 350 g

Package content

  • Dome camera 4 in 1
  • Mounting material
  • User instructions

Data sheet

Weight
350 g
350 g
Power
DC 12 V / 4.2 W max.
Resolution
Default: 4Mpx@25FPS (HDTVI, HDCVI, AHD) Optional via menu: 5Mpx@20FPS (HDTVI, AHD)
Temp. operation
-30º C ~ +55º C
Degree of protection
Weatherproof IP66
Dimensions
89.5 (D) x 100.5 (Ø) mm
Power supply
DC 12 V / 4.2 W max.
Range
5Mpx/4Mpx ECO
Video output
1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor
1/2.7\" SmartSens© SC5035
DSP
FH8538M
Minimum illumination
0 Lux / IR SMD LEDs (30 m)
Basic functions
OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions
AE, 2DNR, AWB
Lens
2.8 mm
