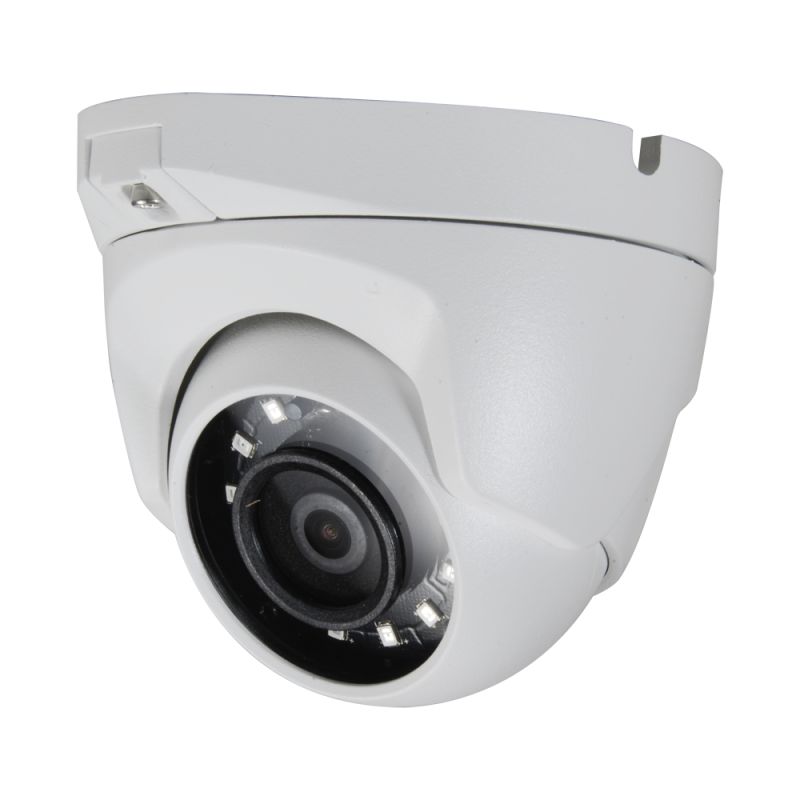

1080p ECO Dome Camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" Brigates© 2.1 MP BG0806 - Wide angle lens 2.1 mm - IR LEDs Range 30 m - Offset spherical deformation
€27.30 €42.00 Save 35%
Tax included
Reference DM822-WIDE-F4N1
Brand Branded
Quantity
Available in 24/48h

Free shipping
DM822-WIDE-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

DM822-WIDE-F4N1 - 1080p ECO Dome Camera, 4 in 1 (HDTVI / HDCVI / AHD /…

€27.30 €42.00 Save 35%

You might also like

  • HDTVI, HDCVI, AHD and Analogue dome camera
  • ECO Range - 2.1 Megapixel - BG0806+FH8536H
  • HD 1080P (1920x1080)
  • Output 4in1
  • 2.1 mm Lens
  • 0 Lux
  • IR Range 30 m
  • 2DNR
  • IR Cut
  • Weatherproof IP66
  • Dewarping: Wide angle without spherical deformation

Features

  • 1080p ECO Dome Camera
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.7" Brigates© 2.1 MP BG0806
  • Wide angle lens 2.1 mm
  • IR LEDs Range 30 m
  • Offset spherical deformation

Specs

Range 1080p ECO
Image sensor 1/2.7" Brigates© 2.1 Megapixel (BG0806)
DSP associated with the sensor FH8550D
Resolution HD 1080p (1920x1080) at 25 FPS
Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / IR LEDs (30 m)
Basic functions OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions 2D-NR, BLC, AE, AWB Pro, AGC
Lens Wide angle 2.1 mm compensated with dewarping
Opening angle 140º
Power DC 12 V / 300 mA max.
Degree of protection Weatherproof IP66
Temp. operation -10º C ~ +50º C
Dimensions 81.7 (H) x 105.2 (D) x 93.2 (W) mm
Weight 310 g

Package content

  • Dome camera 4 in 1
  • Installation material
  • User instructions

Data sheet

Weight
310 g
310 g
Power
DC 12 V / 300 mA max.
Resolution
HD 1080p (1920x1080) at 25 FPS
Temp. operation
-10º C ~ +50º C
Degree of protection
Weatherproof IP66
Dimensions
81.7 (H) x 105.2 (D) x 93.2 (W) mm
Power supply
DC 12 V / 300 mA max.
Range
1080p ECO
Video output
1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor
1/2.7\" Brigates© 2.1 Megapixel (BG0806)
Minimum illumination
0 Lux / IR LEDs (30 m)
Basic functions
OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions
2D-NR, BLC, AE, AWB Pro, AGC
Lens
Wide angle 2.1 mm compensated with dewarping
DSP associated with the sensor
FH8550D
Opening angle
140º
