  • -35%
OC-PIR-F4N1 - 1080p PRO Series hidden camera, 4 in 1 (HDTVI / HDCVI…
search
  • OC-PIR-F4N1 - 1080p PRO Series hidden camera, 4 in 1 (HDTVI / HDCVI…

OC-PIR-F4N1 - 1080p PRO Series hidden camera, 4 in 1 (HDTVI / HDCVI…

1080p PRO Series hidden camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.9" Sony© 2.12 Mpx Exmor IMX322 - 3.7 mm Pinhole Lens - 0 Lux / 18 LED's (10 m) - OSD Menu
€50.70 €78.00 Save 35%
Tax included
Reference OC-PIR-F4N1
Brand Branded
Quantity
Available Now

Free shipping
OC-PIR-F4N1 - 1080p PRO Series hidden camera, 4 in 1 (HDTVI / HDCVI…

OC-PIR-F4N1 - 1080p PRO Series hidden camera, 4 in 1 (HDTVI / HDCVI…

€50.70 €78.00 Save 35%

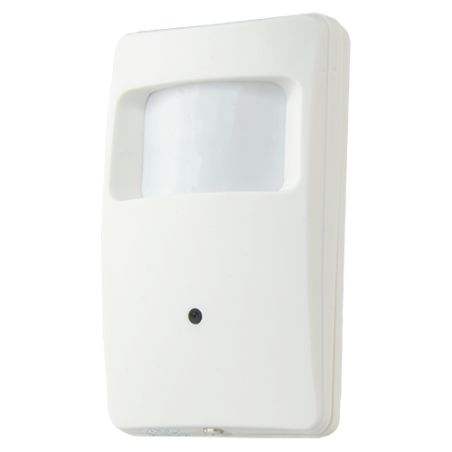

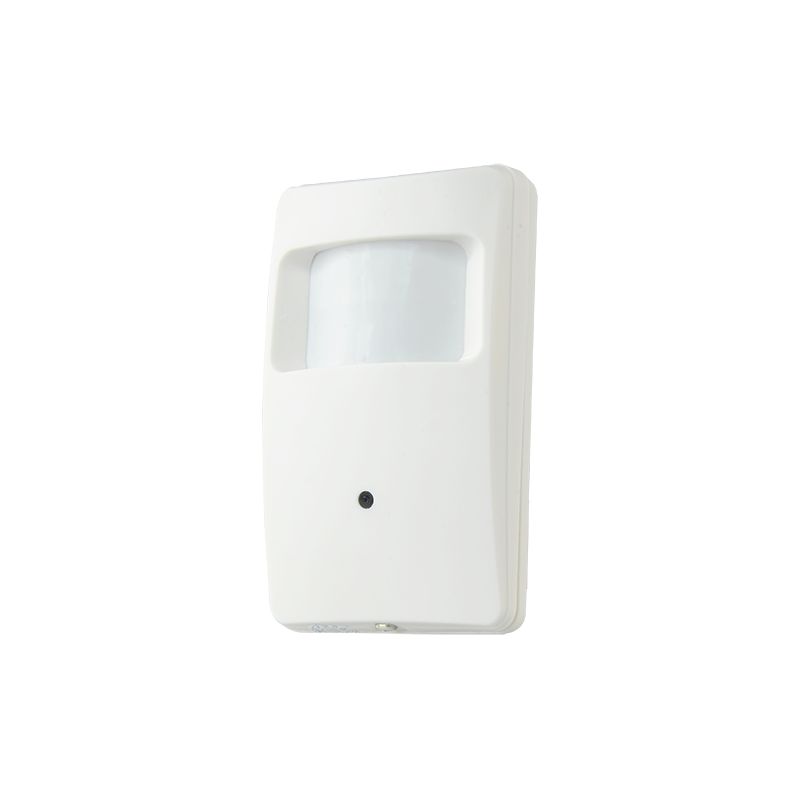

Hidden camera in simulated PIR Detector with infrared illumination. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.

Consisting of a 1/2.9" Sony© 2.12 Megapixel Exmor sensor (model IMX322) and DSP (model V30), which offers a resolution of 1080p at 25 FPS. 3.7mm fixed Pinhole lens with a diagonal FOV of 79º. 18 infrared LEDs that are activated automatically providing a sharp image at 0 Lux (total darkness) at a maximum distance of 10 m. The IR LED's are behind the simulated PIR lens. When activated they simulate the illumination of a real PIR Detector. It has automatic IR Cut filter that permits clear, real colour, daytime images.

OSD Menu in HD format, remotely accessible from the recorder via the coaxial cable connection o via the integrated multi-function button, for configuring the cameras parameters:

  • ATR, Adaptive Tone Reproduction which improves the gradient and the definition
  • AE Shutter, automatic exposure control to optimize the input of received light
  • 2D-NR, digital noise reduction system without loss of focus
  • AWB, automatic white balance for true colours

BNC video connection in high definition formats HDTVI / HDCVI / AHD / CVBS, switchable with button.

PVC housing, for interior use. Easy wall mounting with the bracket provided.

Features

  • 1080p PRO Series hidden camera
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.9" Sony© 2.12 Mpx Exmor IMX322
  • 3.7 mm Pinhole Lens
  • 0 Lux / 18 LED's (10 m)
  • OSD Menu

Specs

Range 1080p PRO
Image sensor 1/2.9" Sony© 2.12 Megapixel Exmor (model IMX322)
DSP V30
Resolution HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / 18 LEDs IR (10 m)
Basic functions OSD menu (remote), Day/Night with IR-CUT (ICR), ATR
Configurable OSD functions DWDR, 2D-NR, AE, AWB, AGC
Lens 3.7 mm (79º)
Power DC 12 V / 300 mA
Degree of protection Interior
Temp. operation -10º C ~ +50º C
Dimensions 105 (H) x 60 (W) x 30 (D) mm
Weight 120 g

Package content

  • Hidden camera
  • 2 plugs and 2 screws for mounting
  • Wall bracket
  • User instructions

Data sheet

Weight
120 g
120g
Power
DC 12 V / 300 mA
Resolution
HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Temp. operation
-10º C ~ +50º C
Degree of protection
Interior
Dimensions
105 (H) x 60 (W) x 30 (D) mm
Power supply
DC 12 V / 300 mA
Range
1080p PRO
Video output
1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor
1/2.9\" Sony© 2.12 Megapixel Exmor (model IMX322)
DSP
V30
Minimum illumination
0 Lux / 18 LEDs IR (10 m)
Basic functions
OSD menu (remote), Day/Night with IR-CUT (ICR), ATR
Configurable OSD functions
DWDR, 2D-NR, AE, AWB, AGC
Lens
3.7 mm (79º)
