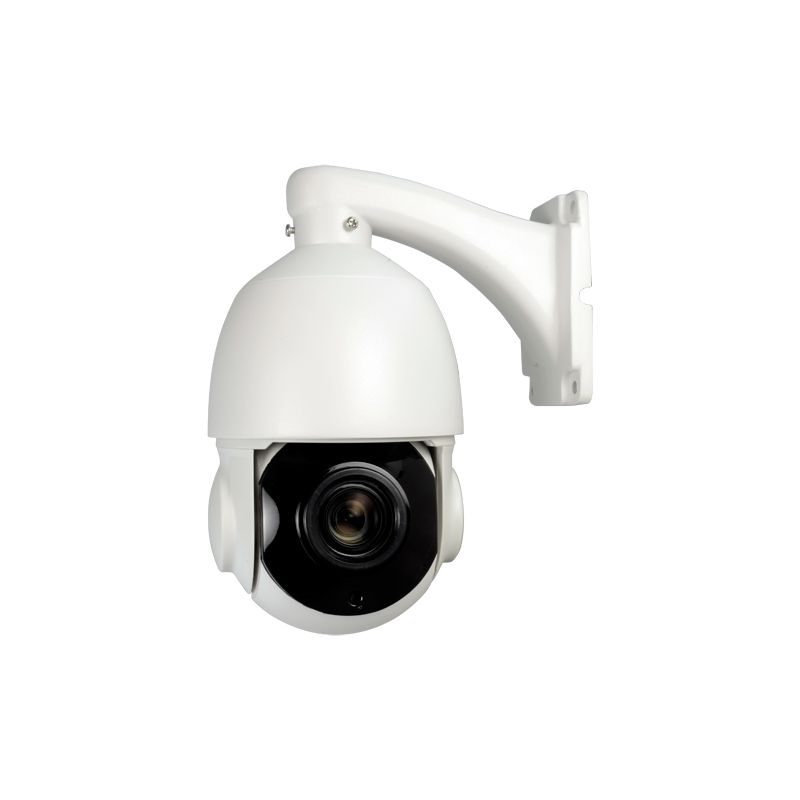

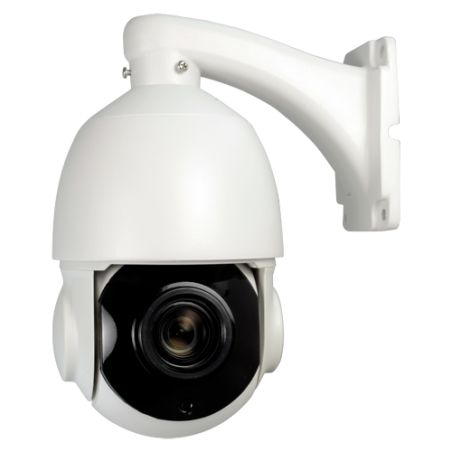

SD6136FI-FTVI - HDTVI Speed dome camera, 1080P, Optical Zoom 36X (4.6…
HDTVI Speed dome camera - 1080P - Optical Zoom 36X (4.6 ~ 165 mm) - 1/3" Sony© Exmor IMX323 CMOS - IR Range 120 m - Suitable for exterior IP66
€292.50
€450.00
Save 35%
Tax included
Reference
SD6136FI-FTVI
Brand
Branded
SD6136FI-FTVI - HDTVI Speed dome camera, 1080P, Optical Zoom 36X (4.6…
€292.50
€450.00
Save 35%
You might also like
- HDTVI Speed dome camera
- High Speed 200º/segundo
- 36X Optical zoom
- 1/3" Sony© Exmor IMX323 CMOS
- HD 1080P (1920x1080)
- Output 4n1
- 4.6 ~165 mm varifocal lens
- 0 Lux
- IR Range 120 m
- IR Cut
- Pelco P/D protocols supported
- OSD Menu
- Weatherproof IP66
- Wall bracket included
Features
- HDTVI Speed dome camera
- 1080P
- Optical Zoom 36X (4.6 ~ 165 mm)
- 1/3" Sony© Exmor IMX323 CMOS
- IR Range 120 m
- Suitable for exterior IP66
Specs
| Image sensor | 1/3" Sony© Exmor IMX323 CMOS |
| Resolution | 1080P |
| Video output | AHD/TVI/CVI (PTZ available with RS485)/CVBS |
| Minimum illumination | 0.1 Lux (color) / 0.01 Lux (B/W) / IR range 120 m |
| Lens | Varifocal 4.6 ~ 165 mm (Optical Zoom 36X) |
| Day / Night | Removable mechanical ICR filter |
| Gain Control | Auto / Manual |
| Backlight compensation | BLC, DWDR, AWB, AGC, 2D-NR |
| S/N ratio | > 50 dB |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: 0°~93° auto flip 180° |
| Manual speed | Horizontal: 0.02° ~ 45°/sec, Vertical: 0.02° ~ 30°/sec |
| Speed between Presets | Horizontal: 200° /s, Vertical: 200° /s |
| Preset positions | 220 preset, 1 auto tour, auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D |
| Audio | No |
| Alarms | No |
| Power | DC12 V / 3A |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | IP66 |
| Dimensions (without bracket) | 250 mm (H) x 120 (Ø) mm |
| Weight (without bracket) | 5 kg |
Package content
- Speed dome camera
- User instructions
- Power supply DC 12V / 3 A
Data sheet
- Power
- DC12 V / 3A
- Resolution
- 1080P
1080P at 30 FPS - Temp. operation
- -40º C ~ +60º C
- Degree of protection
- IP66
- Dimensions (without support)
- 250 mm (H) x 120 (Ø) mm
- Power supply
- DC12 V / 3A
- Communication
- RS485, Pelco P / Pelco D
- Video output
- AHD/TVI/CVI (PTZ available with RS485)/CVBS
- Audio
- No
- Image sensor
- 1/3\" Sony© Exmor IMX323 CMOS
- Minimum illumination
- 0.1 Lux (color) / 0.01 Lux (B/W) / IR range 120 m
0.1 Lux (colour) / 0.01 Lux (B/N) - Lens
- Varifocal 4.6 ~ 165 mm (Optical Zoom 36X)
- Day / Night
- Removable mechanical ICR filter
- Pan/Tilt Range
- Horizontal: 0°~360°, Vertical: 0°~93° auto flip 180°
- Manual speed
- Horizontal: 0.02° ~ 45°/sec, Vertical: 0.02° ~ 30°/sec
- Preset positions
- 220 preset, 1 auto tour, auto pan, auto scan
- Alarms
- No
- Speed between Presets
- Horizontal: 200° /s, Vertical: 200° /s
- Weight (without support)
- 5 kg
- Gain Control
- Auto / Manual
- Backlight compensation
- BLC, DWDR, AWB, AGC, 2D-NR
- S/N ratio
- ≥ 50 dB
- Dimensions (without bracket)
- 250 mm (H) x 120 (Ø) mm
- Weight (without bracket)
- 5 kg
HDTVI Speed dome camera - 1080P - Optical Zoom 36X (4.6 ~ 165 mm) - 1/3" Sony© Exmor IMX323 CMOS - IR Range 120 m - Suitable for exterior IP66
