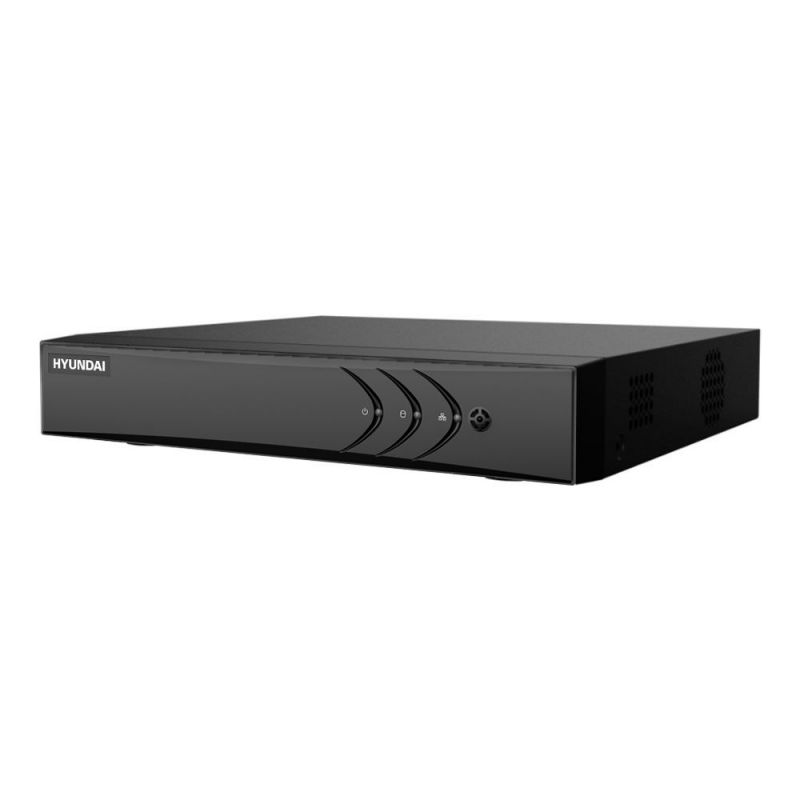

Hyundai ZVR4116M-A-2MLITE-AUDIO. ZVR 5 in 1 of 16 channels HDCVI / HDTVI / AHD / CVBS + 2 channels IP 5MP. Video format H.265 + / H.265 / H.264 + / H264. Two-way audio. Coaxial audio. 16-channel simultaneous playback. 1080N, 720P, WD1, D1, VGA, CIF, QVGA, QCIF recording. Simultaneous HDMI and VGA outputs at 1080P. 1 HDD SATA capacity up to 10TB. RJ45 Fast Ethernet. Onvif, P2P, DDNS. 2 USB. 12V DC.

Characteristics

    H.265 + / H.265 / H.264 + / H.264 video compression

    5-in-1 video input (HDCVI / HDTVI / AHD / CVBS)

    Coaxial cable audio

    16 + 2 IP channels at 5 megapixels

    HDTVI 1080P transmission up to 800 meters

    Allows up to 10TB of hard disk

    ZVR 5-in-1 16-channel H.265 + / H.265 / H.264 + / H.264 format

    H.265 + compression format improves encoding efficiency and reduces storage costs

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS

    16 BNC inputs (supports coaxitron):

        HDCVI: 1080N / 720P @ 25 ips

        HDTVI: 1080N / 720P @ 25 ips

        AHD: 720P @ 25 ips

        Analog CVBS: 960H

    16 + 2 IP inputs at 5MP

    Simultaneous HDMI and VGA outputs (1080P)

    Two-way audio: 1 RCA input / 1 RCA output

    Supports audio over coaxial cable (only compatible with HYUNDAI NEXTGEN cameras with audio over coaxial)

    Recording resolution: 1080N (960x1080), 720P (1280x720), WD1 (960x576), D1 (704x576), VGA (640x480), CIF (352x288)

    Main stream with 1080N mode enabled: 1080N, 720P, WD1, D1, VGA (15 ips)

    Main stream with 1080N mode off: 720P, WD1, D1, VGA, (25 ips)

    Secondary stream: CIF, QVGA, QCIF (25 ips)

    16 channel simultaneous playback

    Internal capacity for 1 SATA HDD up to 10TB (sold separately)

    Graphical User Interface (GUI) and One-Touch Start Recording (Wizard) support

    Video Quality Diagnostic Manual

    Smart search for more efficient playback (for NEXTGEN IP cameras)

    Supports multiple VCA (Video Content Analytics) events from IP cameras

    Supports PTZ control through Genetec's VMS Omnicast protocol

    Self-adaptive RJ45 (10 / 100M) Ethernet network interface

    Network protocols: TCP / IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

    ONVIF compliant

    Remote access for up to 128 users

    Remote access through iPhone / iPad, Android devices

    Multi browser compatibility: Chrome, Firefox, Safari, IE

    P2P in the cloud, DDNS DEMES, Push and channel zero

    2 USB 2.0 ports

    Power supply: 12V DC, 1.6A

    Consumption: ≤10W

    Operating temperature: -10 ° C ~ + 55 ° C

    Relative humidity: 10 ~ 90%

    Dimensions: 260 × 222 × 45mm (desktop)
