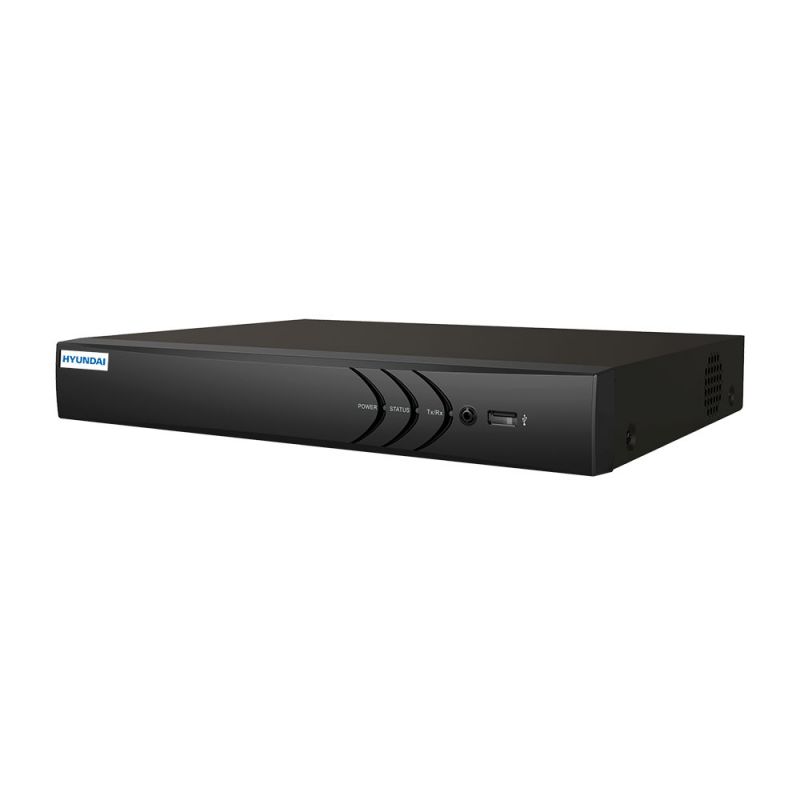

Hyundai HYU-787 ZVR 5 in 1 with 4 channels HDCVI / HDTVI / AHD /…

Hyundai HYU-787. ZVR 5 in 1 with 4 channels HDCVI / HDTVI / AHD / CVBS + 1 channel IP 6MP. Video format H.265 Pro / H.265 Pro / H.265 / H.264 + / H.264. Two-way audio. 4-channel synchronized playback. Recording 4M-N, 3MP, 1080P, 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF. HDMI and VGA outputs at 1080P. Behavioral analysis and facial detection. 1 HDD SATA capacity up to 10TB. RJ45 Fast Ethernet. Onvif, P2P, DDNS. RS485, 2 USB2.0. 12V DC.

Features

    Behavioral analysis based on deep-learning or face detection

    Video compression H.265 Pro / H.265 Pro / H.265 / H.264 + / H.264

    5-in-1 video input (HDCVI / HDTVI / AHD / CVBS)

    4 BNC inputs

    1 + 4 IP channels at 6 megapixels

    HDTVI 1080P transmission up to 800 meters

    Allows up to 10TB per hard drive

    ZVR 5-in-1 4-channel H.265 Pro / H.265 Pro / H.265 / H.264 + / H.264 format

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS

    4 BNC inputs (supports coaxitron):

        HDTVI: 3MP (channel 1 only), 1080P @ 25 ips, 720P @ 25/50 ips

        HDCVI: 4MP, 1080P, 720P @ 25 ips

        AHD: 4MP, 1080P, 720P @ 25 ips

        CVBS: Analog: 960H

    1 IP input (up to 5) at 6MP

    Simultaneous HDMI and VGA (1080P) outputs

    BNC output (1.0 Vp-p)

    Two-way audio

    1 RCA input / 1 RCA audio output

    Recording resolution: 4M-N, 3MP, 1080P, 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF

    Main stream with 1080P Lite mode disabled:

        Stream 4MP: 4M-N (15 ips), 1080P Lite, 720P, WD1, 4CIF, VGA, CIF (25 ips)

        Stream 3MP: 3MP, 1080P, 720P, VGA, WD1, 4CIF, CIF (15 ips)

        Stream 1080P: 1080P, 720P (15 ips), VGA, WD1, 4CIF, CIF (25 ips)

        Stream 720P: 720P, VGA, WD1, 4CIF, CIF (25 ips)

    Main stream with 1080P Lite mode activated:

        4M-N, 3MP (15 ips), 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25 ips)

    Secondary stream: WD1, 4CIF (12 ips), CIF (25 ips)

    4-channel synchro playback

    Internal capacity for 1 SATA HDD up to 10TB (sold separately)

    Graphical User Interface (GUI) and One-Touch Start Recording (Wizard) support

    Smart search for more efficient playback (for NEXTGEN IP cameras)

    Supports multiple VCA (Video Content Analytics) events from IP cameras

    Supports 1 channel HD face detection and capture (with disabled people / vehicle analysis)

    Supports up to 2 channels of false alarm reduction in human / vehicle analysis (with detection and facial capture disabled)

    Self-adaptive RJ45 (10 / 100M) Ethernet network interface

    Network protocols: TCP / IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS

    ONVIF compliant

    Remote access for up to 32 users

    Remote access through iPhone / iPad, Android devices

    Multi browser compatibility: Chrome, Firefox, Safari, IE

    P2P in the cloud, DDNS DEMES, Push and channel zero

    RS48 half-duplex port

    2 USB 2.0 ports

    Power: 12V DC

    Consumption: ≤18W

    Operating temperature: -10 ° C ~ + 55 ° C

    Relative humidity: 10 ~ 90%

    Dimensions: 315 × 242 × 45mm
