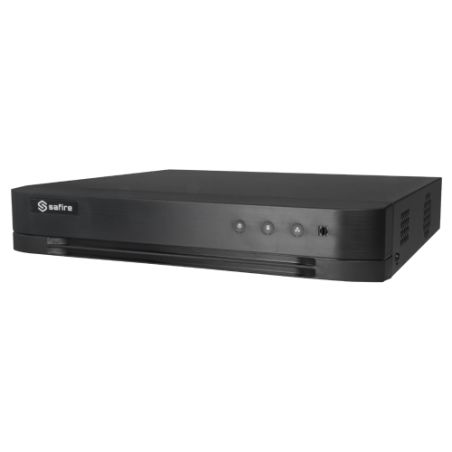

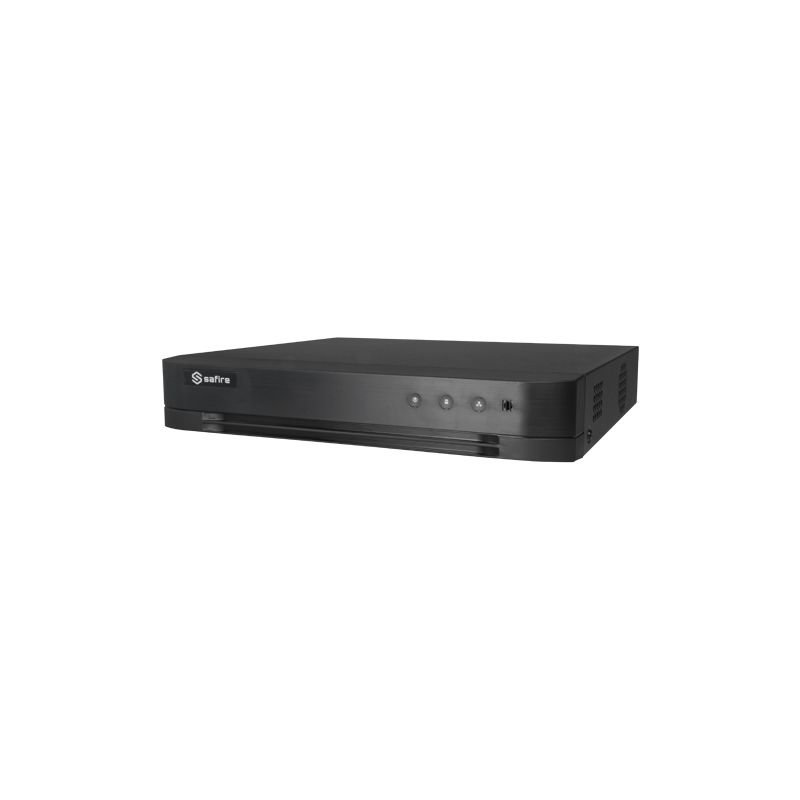

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 104SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13348 AND id_lang = 1 Safire SF-XVR3116S - Safire 5n1 DVR, Audio over coaxial cable, 16CH…
  • -35%
Safire SF-XVR3116S - Safire 5n1 DVR, Audio over coaxial cable, 16CH…
search
  • Safire SF-XVR3116S - Safire 5n1 DVR, Audio over coaxial cable, 16CH…

Safire SF-XVR3116S - Safire 5n1 DVR, Audio over coaxial cable, 16CH…

Safire 5n1 DVR - Audio over coaxial cable - 16CH HDTVI/HDCVI/AHD/CVBS/ 16+2 IP - 1080P Lite (25FPS) - Full HD HDMI and VGA Output - 1 HDD
€123.50 €190.00 Save 35%
Tax included
Reference SF-XVR3116S
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-XVR3116S - Safire 5n1 DVR, Audio over coaxial cable, 16CH…

Safire SF-XVR3116S - Safire 5n1 DVR, Audio over coaxial cable, 16CH…

€123.50 €190.00 Save 35%

You might also like

  • Safire
  • DVR 5n1
  • 4 CH video HDTVI/HDCVI/AHD/CVBS / 16+2 IP
  • H.264+/H.264
  • Resolution 1080PLite/720P (25FPS)
  • Audio over coaxial cable HDTVI
  • Full HD HDMI and VGA Output
  • Mouse
  • Space for 1 HDD

Features

  • Safire 5n1 DVR
  • Audio over coaxial cable
  • 16CH HDTVI/HDCVI/AHD/CVBS/ 16+2 IP
  • 1080P Lite (25FPS)
  • Full HD HDMI and VGA Output
  • 1 HDD

Specs

Brand SAFIRE
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Default: 16 Channels from BNC and 16 (substitution) + 2 (extra) IP Channels (up to 1080P)
Video outputs 1 HDMI Full HD, 1 VGA
Audio inputs 1 Channel RCA
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input/output
Video / audio compression H.264+ / H.264 / H.265+ / H.265 / H.265 Pro / H265 Pro+ / G.711u
Display resolution 1920x1080, 1280x1024, 1280x720, 1024x768
BNC input resolution 1080p / 720p
Main Stream coding 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
Extra Stream coding WD1 / 4CIF (12FPS) / CIF (25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Video analysis No
Recording method Manual, programmed, motion detection
Backup USB / Network / Cloud (Microsoft One Drive, Dropbox)
Internal memory 1 HDD SATA 3.5" of up to 6TB (not included)
Communication 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet)
Remote access Web browser, Smartphone App and Safire Control Center CMS Software
Power DC 12 V / 1.5 A (Consumption without HDD)
Dimensions / Weight 45 (H) x 260 (W) x 222 (D) mm / 1.2 Kg

Package content

  • Safire 5 in 1 DVR
  • Mouse
  • Adapter AC/DC 12 V / 1.5 A
  • CD with manual and software

Data sheet

Power
DC 12 V / 1.5 A (Consumption without HDD)
Power supply
DC 12 V / 1.5 A (Consumosin HDD ≤ 12 W )
DC 12 V / 1.5 A (Consumosin HDD ≤ 12 W)
DC 12 V / 1.5 A (Consumption without HDD)
DC 12 V / 1.5 A (Consumption without HDD ≤ 12W)
Dimensions / Weight
45 (H) x 260 (W) x 222 (D) mm / 1.2 Kg
Communication
2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet)
2 x USB 2.0 (Ratón y backup) / RJ45 (Ethernet)
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio
Reusing the audio input/output
Display resolution
1920x1080, 1280x1024, 1280x720, 1024x768
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection
Manual, programmed, motion detection, alarm
Internal memory
1 HDD SATA 3.5\" of up to 6TB (not included)
Remote access
Web browser, Smartphone App and Safire Control Center CMS Software
Video outputs
1 HDMI Full HD, 1 VGA
Video / audio compression
H.264+ / H.264 / G.711u
H.264+ / H.264 / H.265+ / H.265 / H.265 Pro / H265 Pro+ / G.711u
Main Stream coding
1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
Hybrid configuration
Default: 16 Channels from BNC and 16 (substitution) + 2 (extra) IP Channels (up to 1080P)
Por defecto: 16 Canales desde BNC y 16 (sustitución) + 2 (extra) Canales IP ( hasta 1080P)
Audio inputs
1 Channel RCA
Audio outputs
1 Channel RCA
Extra Stream coding
WD1 / 4CIF (12FPS) / CIF (25 FPS)
Backup
USB / Network / Cloud (Microsoft One Drive, Dropbox)
USB / Red
USB / Red/ Nube (Microsoft One Drive, Dropbox)
Video analysis
No
No dispone
Brand
Safire
Resolución de entrada BNC
1080p / 720p
BNC input resolution
1080p / 720p
