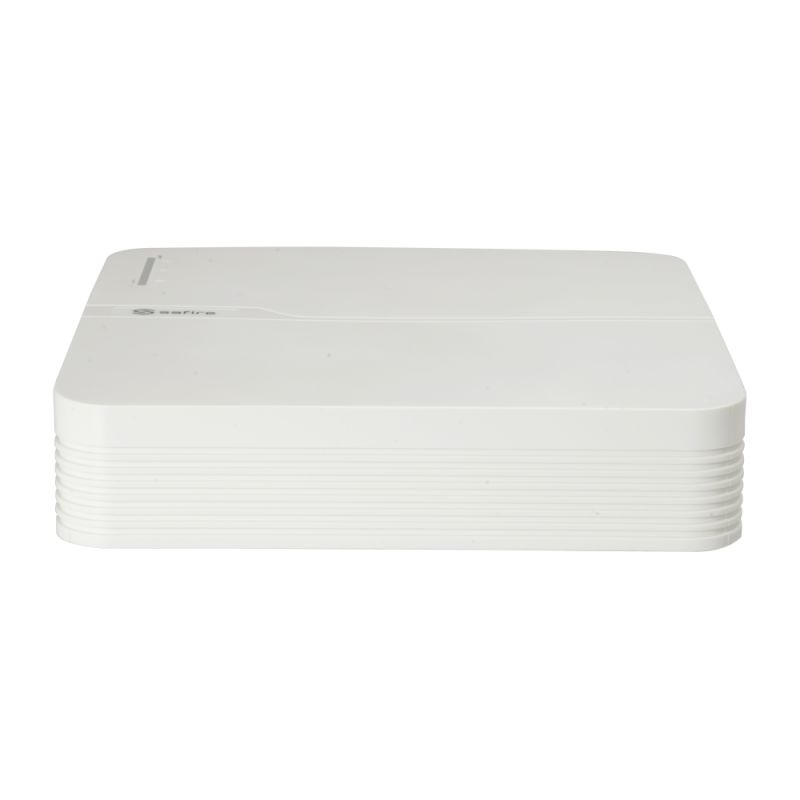

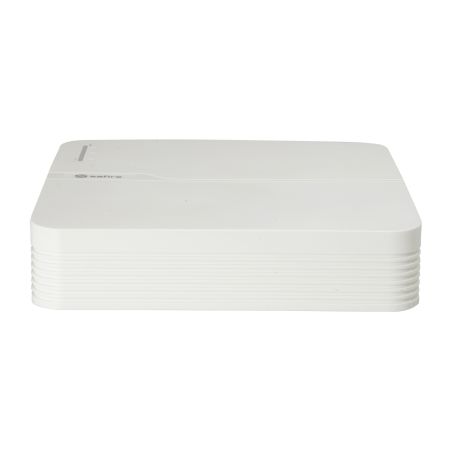

Safire 5n1 H.265Pro+ Recorder - Audio over coaxial cable - 4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP - 4Mpx Lite/1080p (12FPS) - Full HD HDMI and VGA Output - 1 CH audio / 1 HDD
€76.70 €118.00 Save 35%
Tax included
Reference SF-XVR6104MS
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-XVR6104MS - Safire 5n1 H.265Pro+ Recorder, Audio over coaxial…

Safire SF-XVR6104MS - Safire 5n1 H.265Pro+ Recorder, Audio over coaxial…

€76.70 €118.00 Save 35%

You might also like

  • Safire
  • DVR 5n1
  • 4 CH video HDTVI/HDCVI/AHD/CVBS / 4+2 IP / 1 CH audio
  • H.265Pro+/H.265Pro/H.264+/H.264
  • Resolution 4Mpx Lite /1080p (15FPS) or 1080PLite/720P (25FPS)
  • PTZ Control (RS485/Coaxial)
  • Audio over coaxial cable
  • No alarms
  • HDMI Full HD, VGA & CVBS Outputs
  • Mouse
  • Space for 1 HDD
  • Cloud storage for substream (OneDrive, Dropbox...)

Features

  • Safire 5n1 H.265Pro+ Recorder
  • Audio over coaxial cable
  • 4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP
  • 4Mpx Lite/1080p (12FPS)
  • Full HD HDMI and VGA Output
  • 1 CH audio / 1 HDD

Specs

Brand SAFIRE
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Default: 4 Channels from BNC and 4 (substitution) + 1 (extra) IP Channels (up to 6Mpx)
Enhanced IP Mode:4 Channels from BNC and 4 (substitution) + 2 (extra) IP Channels (up to 6Mpx)
Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Note: Enhanced IP mode is not compatible with Enhanced VCA mode
Input bandwidth 24 Mbps
Video outputs 1 HDMI Full HD, 1 VGA
Audio inputs 1 Channel RCA
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input/output
Video / audio compression H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
Display resolution 1920x1080, 1280x1024, 1280x720, 1024x768
BNC input resolution 4Mpx / 3Mpx / 1080p / 720p
Main Stream coding 4Mpx Lite/ 3Mpx (CH1) / 1080p (15 FPS), 1080p Lite 720p/ / VGA / WD1 4CIF/ CIF (25FPS)
Extra Stream coding WD1 / 4CIF (12FPS) / CIF (25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Video analysis Default: 2 CH VCA, Enhanced VCA Mode: 4 CH VCA
Tripwire | Area intrusion | Audio exception
Recording method Manual, programmed, motion detection, alarm
Backup USB / Network / Cloud (Microsoft One Drive, Dropbox)
Internal memory 1 HDD SATA 3.5" of up to 10TB (not included)
Communication RS485 (PTZ) / 2 x USB 2.0 (Mouse and Backup) / RJ45 (Ethernet)
Remote access Web browser, Smartphone App and Safire Control Center CMS Software
Power DC 12 V / 1.5 A (Consumption without HDD < 6 W)
Dimensions / Weight 45 (H) x 200 (W) x 200 (D) mm / 1 Kg

Package content

  • Safire 5 in 1 DVR
  • Mouse
  • Adapter AC/DC 12 V / 1.5 A
  • CD with manual and software

Data sheet

Power
DC 12 V / 1.5 A (Consumption without HDD ≤ 6 W)
Power supply
DC 12 V / 1.5 A(Consumosin HDD ≤ 6 W)
DC 12 V / 1.5 A (Consumption without HDD ≤ 6 W)
Dimensions / Weight
45 (H) x 200 (W) x 200 (D) mm / 1 Kg
45 (H) x 315 (W) x 242 (D) mm / 1.16 Kg
Communication
2 x USB 2.0 (Ratón y backup) / RJ45 (Ethernet)
RS485 (PTZ) / 2 x USB 2.0 (Mouse and Backup) / RJ45 (Ethernet)
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio
Reusing the audio input/output
Display resolution
1920x1080, 1280x1024, 1280x720, 1024x768
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection, alarm
Internal memory
1 HDD SATA 3.5\" of up to 6TB (not included)
1 HDD SATA 3.5\" of up to 10TB (not included)
Remote access
Web browser, Smartphone App and Safire Control Center CMS Software
Video outputs
1 HDMI Full HD, 1 VGA, 1 BNC (CVBS) Independent
Video / audio compression
H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
Main Stream coding
4Mpx Lite / 3Mpx (CH1) / 1080p (12 FPS), 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
4Mpx Lite/ 3Mpx (CH1) / 1080p (15 FPS), 1080p Lite 720p/ / VGA / WD1 4CIF/ CIF (25FPS)
Hybrid configuration
Default: 4 Channels from BNC and 4 (substitution) + 1 (extra) IP Channels (up to 6Mpx) Enhanced IP Mode:4 Channels from BNC and 4 (substitution) + 2 (extra) IP Channels (up to 6Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel Note: Enhan
Por defecto: 4 Canales desde BNC y 4 (sustitución) + 1 (extra) Canales IP ( hasta 6Mpx) Modo IP mejorado: 4 Canales desde BNC y 4 (sustitución) + 2 (extra) Canales IP ( hasta 6Mpx) El modo IP mejorado limita el ancho de banda a 4Mbps por canal IP
Audio inputs
1 Channel RCA
Audio outputs
1 Channel RCA
Extra Stream coding
WD1 / 4CIF (12FPS) / CIF (25 FPS)
Backup
USB / Network / Cloud (Microsoft One Drive, Dropbox)
USB / Red
Video analysis
Default: 2 CH VCA, Enhanced VCA Mode: 4 CH VCA Tripwire | Area intrusion | Audio exception
No dispone
Brand
Safire
Input bandwidth
24 Mbps
Resolución de entrada BNC
4Mpx / 3Mpx / 1080p / 720p
BNC input resolution
4Mpx / 3Mpx / 1080p / 720p
