  • Safire SF-XVR6104S-1FACE - Safire 5n1 DVR, 4 CH HDTVI/HDCVI/AHD/CVBS (4Mpx) + 1…

Safire SF-XVR6104S-1FACE - Safire 5n1 DVR, 4 CH HDTVI/HDCVI/AHD/CVBS (4Mpx) + 1…

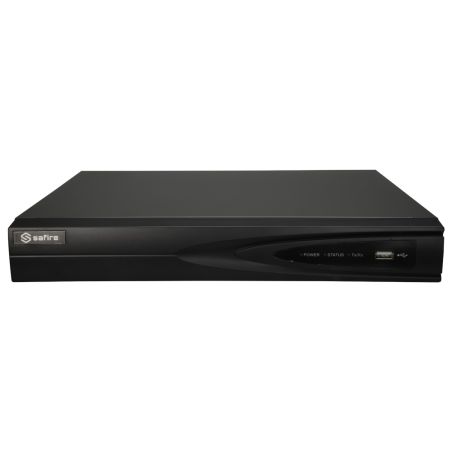

Safire 5n1 DVR - 4 CH HDTVI/HDCVI/AHD/CVBS (4Mpx) + 1 IP (6Mpx) - Audio over coaxial - Resolution 4Mpx Lite (15FPS) or 1080p Lite/720P (25FPS) - 1 CH facial recognition - 2 CH Human and vehicle recognition
€148.00
Tax included
Reference SF-XVR6104S-1FACE
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-XVR6104S-1FACE - Safire 5n1 DVR, 4 CH HDTVI/HDCVI/AHD/CVBS (4Mpx) + 1…

Safire SF-XVR6104S-1FACE - Safire 5n1 DVR, 4 CH HDTVI/HDCVI/AHD/CVBS (4Mpx) + 1…

€148.00
  • Safire
  • DVR 5n1
  • 4 CH video HDTVI/HDCVI/AHD/CVBS / 4+1 IP / 4 CH audio
  • H.265Pro+/H.265Pro/H.264+/H.264
  • Resolution 4Mpx Lite (15FPS) or 1080p Lite/720P (25FPS)
  • PTZ Control (RS485/Coaxial)
  • Audio over coaxial
  • HDMI Full HD, VGA & CVBS Outputs
  • 1 CH Face Comparison (Available for 1CH analog video)
  • TrueSense, false alarm filter for vehicles and people (Available for 2 CH for coaxial video)
  • Mouse
  • Space for 1 HDD

Features

  • Safire 5n1 DVR
  • 4 CH HDTVI/HDCVI/AHD/CVBS (4Mpx) + 1 IP (6Mpx)
  • Audio over coaxial
  • Resolution 4Mpx Lite (15FPS) or 1080p Lite/720P (25FPS)
  • 1 CH facial recognition
  • 2 CH Human and vehicle recognition

Specs

Brand Safire
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Default: 4 Channels from BNC and 4 (replacement) + 1 (extra) IP Channels (up to 6Mpx)
Enhanced IP Mode: Channels from BNC and 2 (replacement) + 2 (extra) IP channels (up to 6Mpx))
Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Video outputs 1 HDMI 1080p, 1 VGA andCVBS
Video / audio compression H.265+/H.265/H.264+/H.264
Display resolution 1920x1080, 1280x1024, 1280x720
Total bandwidth 64 Kbps
Input resolution 4 Mpx, 3 Mpx, 1080p, 720p, WD1, 4CIF, D1, CIF
Main Stream coding 4Mpx Lite /3 Mpx / 1080p (1~15 FPS); 720p / WD1 / 4CIF / VGA / CIF (1~25 FPS)
*3 Mpx is only available for the CH1
Extra Stream coding D1 / 4CIF (1~15 FPS); CIF (25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Audio inputs 4 Channel via audio over coaxial
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input/output
Alarms IN/OUT No
Video analysis IVS: Tripwire | Area intrusion | Abandoned object | Face detection
Advanced features Facial recognition: Up to 1 analog channel for face comparison

Truesense: Up to 2 channels (False alarm filter capable of classifying objects between humans and vehicles)

Note: TrueSense and Facial Recognition cannot be enabled at the same time.
Recording method Manual, programmed, motion detection, alarm
Backup USB / Network
Internal memory 1 SATA HDD 3.5" of up to 10 TB (not included)
Communication RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) / Wi-Fi
Remote access Web browser, mobile phone application or PSS software
Power DC 12V / 1.5A
Dimensions / Weight 45 (H) x 242 (W) x 315 (D) mm / 1.16 Kg

Package content

  • Safire 5 in 1 DVR
  • Mouse
  • 12VDC Power supply

Data sheet

Power
DC 12V / 1.5A
Dimensions / Weight
45 (H) x 242 (W) x 315 (D) mm / 1.16 Kg
Communication
RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) / Wi-Fi
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio
Reusing the audio input/output
Display resolution
1920x1080, 1280x1024, 1280x720
Total bandwidth
64 Kbps
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Recording method
Manual, programmed, motion detection, alarm
Internal memory
1 SATA HDD 3.5\" of up to 10 TB (not included)
Remote access
Web browser, mobile phone application or PSS software
Video outputs
1 HDMI 1080p, 1 VGA andCVBS
Video / audio compression
H.265+/H.265/H.264+/H.264
Main Stream coding
4Mpx Lite /3 Mpx / 1080p (1~15 FPS), 720p / WD1 / 4CIF / VGA / CIF (1~25 FPS) *3 Mpx is only available for the CH1
Hybrid configuration
Default: 4 Channels from BNC and 4 (replacement) + 1 (extra) IP Channels (up to 6Mpx) Enhanced IP Mode: Channels from BNC and 2 (replacement) + 2 (extra) IP channels (up to 6Mpx)) Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Audio inputs
4 Channel via audio over coaxial
Audio outputs
1 Channel RCA
Extra Stream coding
D1 / 4CIF (1~15 FPS), CIF (25 FPS)
Backup
USB / Network
Video analysis
IVS: Tripwire | Area intrusion | Abandoned object | Face detection
Brand
Safire
Alarms IN/OUT
No
Advanced features
Facial recognition: Up to 1 analog channel for face comparison Truesense: Up to 2 channels (False alarm filter capable of classifying objects between humans and vehicles) Note: TrueSense and Facial Recognition cannot be enabled at the same time.
Input resolution
4 Mpx, 3 Mpx, 1080p, 720p, WD1, 4CIF, D1, CIF
