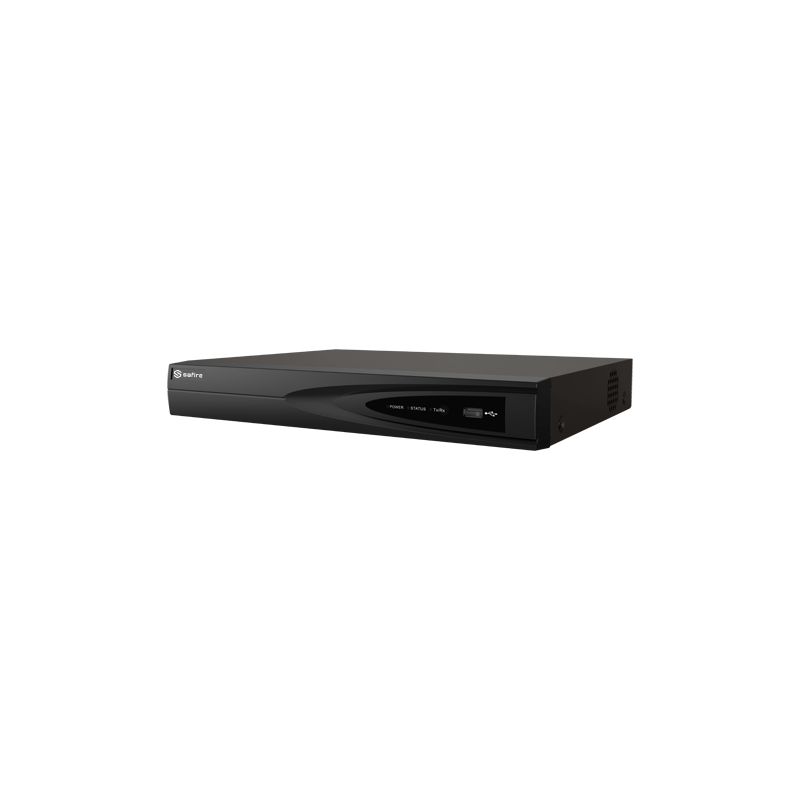

Safire SF-XVR6108AS-1FACE - Safire 5n1 DVR, 8CH HDTVI/HDCVI/AHD/CVBS/ 8+2 IP, 4Mpx…

Safire 5n1 DVR - 8CH HDTVI/HDCVI/AHD/CVBS/ 8+2 IP - 4Mpx Lite (15FPS) - Full HD HDMI and VGA Output - Audio Over Coax / Alarms - Rec. Facial and TrueSense
€188.00
Tax included
Reference SF-XVR6108AS-1FACE
Brand Safire
Quantity
In Stock

Free shipping
Safire SF-XVR6108AS-1FACE - Safire 5n1 DVR, 8CH HDTVI/HDCVI/AHD/CVBS/ 8+2 IP, 4Mpx…

Safire SF-XVR6108AS-1FACE - Safire 5n1 DVR, 8CH HDTVI/HDCVI/AHD/CVBS/ 8+2 IP, 4Mpx…

€188.00
  • Safire
  • DVR 5n1
  • 8 CH video HDTVI/HDCVI/AHD/CVBS / 8+2 IP / 8 CH audio
  • H.265Pro+/H.265Pro/H.264+/H.264
  • 4MpxLite/1080p (15FPS) or 1080pLite/720P (25FPS) resolution
  • Audio Over Coax
  • PTZ Control (RS485/Coaxial)
  • HDMI Full HD, VGA & CVBS Outputs
  • 1 CH comparison of face
  • TrueSense, false alarm filter for vehicles and people (Available for 4 CH for coaxial video)
  • Alarms
  • Mouse
  • Space for 1 HDD

Features

  • Safire 5n1 DVR
  • 8CH HDTVI/HDCVI/AHD/CVBS/ 8+2 IP
  • 4Mpx Lite (15FPS)
  • Full HD HDMI and VGA Output
  • Audio Over Coax / Alarms
  • Rec. Facial and TrueSense

Specs

Brand SAFIRE
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 8 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Default: 8 Channels from BNC and 8 (replacement) + 2 (extra) IP Channels (up to 6Mpx)
Enhanced IP Mode: 8Canales from BNC and 8 (replacement) + 4 (extra) IP channels (up to 6Mpx)
Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Input bandwidth 64 Mbps
Video outputs 1 HDMI Full HD, 1 VGA, 1 BNC (CVBS) Independent
* HDMI and VGA are simultaneous
Audio 8ch on Coaxial cable (HDTVI), 1 input / 1 output RCA
Bidirectional audio Using Audio Inputs and RCA Output
Video / audio compression H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
Display resolution HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
BNC input resolution 4Mpx / 1080p / 720p
Main Stream coding 4 Mpx Lite / 1080P (15 FPS), 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
Extra Stream coding WD1 / 4CIF (12FPS) / CIF (25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms IN / OUT 4 / 1
Advanced features Facial recognition: Up to 1 analog channel for face comparison

Truesense: Up to 4 channels (False alarm filter capable of classifying objects between humans and vehicles)

Note: TrueSense and Facial Recognition cannot be enabled at the same time.
Recording method Manual, programmed, motion detection, alarm
Backup USB / Network/ Cloud (Microsoft One Drive, Dropbox)
Internal memory 1 HDD SATA 3.5" of up to 10TB (not included)
Communication RS485 (PTZ) / 2 x USB 2.0 (Mouse and backup) / 1xRJ45 10/100M (Ethernet)
Remote access Web browser, Smartphone App and Safire Control Center CMS Software
Power DC 12 V / 2 A (HDD Consumption < 18 W)
Dimensions / Weight 45 (H) x 315 (W) x 242 (D) mm / 1.78 Kg

Package content

  • Safire 5 in 1 DVR
  • Mouse
  • Adapter AC/DC 12 V / 1.5 A
  • CD with manual and software

Data sheet

Power
DC 12 V / 2 A (HDD Consumption ≤ 18 W)
Dimensions / Weight
45 (H) x 315 (W) x 242 (D) mm / 1.78 Kg
Communication
RS485 (PTZ) / 2 x USB 2.0 (Mouse and backup) / 1xRJ45 10/100M (Ethernet)
Audio
8ch on Coaxial cable (HDTVI), 1 input / 1 output RCA
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
8 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio
Using Audio Inputs and RCA Output
Display resolution
HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Recording method
Manual, programmed, motion detection, alarm
Internal memory
1 HDD SATA 3.5\" of up to 10TB (not included)
Remote access
Web browser, Smartphone App and Safire Control Center CMS Software
Video outputs
1 HDMI Full HD, 1 VGA, 1 BNC (CVBS) Independent * HDMI and VGA are simultaneous
Video / audio compression
H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
Main Stream coding
4 Mpx Lite / 1080P (15 FPS), 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
Hybrid configuration
Default: 8 Channels from BNC and 8 (replacement) + 2 (extra) IP Channels (up to 6Mpx) Enhanced IP Mode: 8Canales from BNC and 8 (replacement) + 4 (extra) IP channels (up to 6Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel
Extra Stream coding
WD1 / 4CIF (12FPS) / CIF (25 FPS)
Backup
USB / Network/ Cloud (Microsoft One Drive, Dropbox)
Brand
Safire
Input bandwidth
64 Mbps
Advanced features
Facial recognition: Up to 1 analog channel for face comparison Truesense: Up to 4 channels (False alarm filter capable of classifying objects between humans and vehicles) Note: TrueSense and Facial Recognition cannot be enabled at the same time.
BNC input resolution
4Mpx / 1080p / 720p
Alarms IN / OUT
4 / 1
