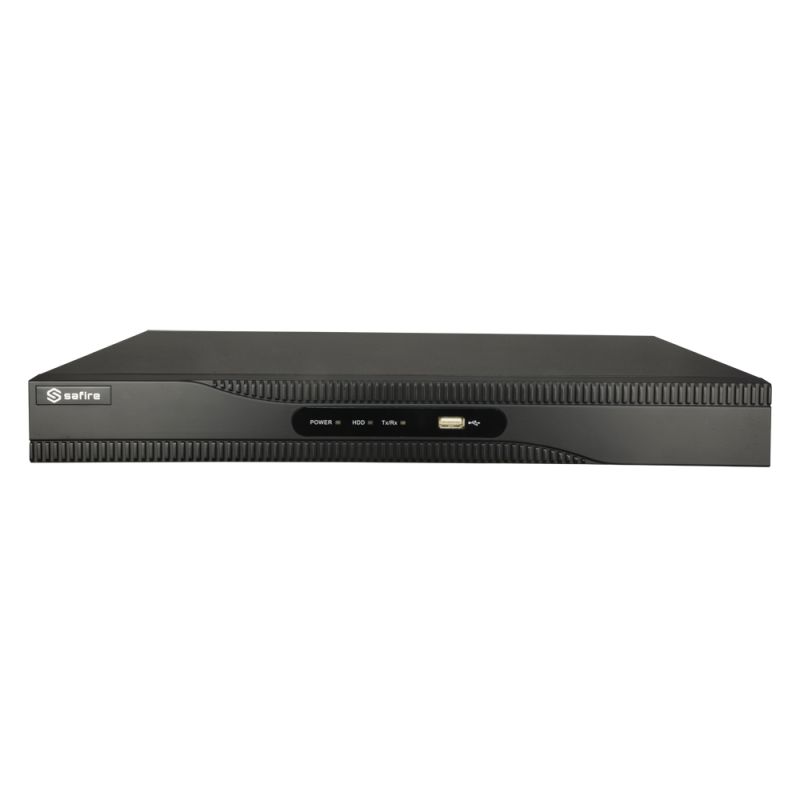

Safire SF-HTVR6104AP-HEVC - Safire 5n1 H.265+ Recorder, Power over Coaxial (Only…
Safire 5n1 H.265+ Recorder - Power over Coaxial (Only with Safire PoC) - 4 CH HDTVI / HDCVI / AHD / CVBS / 1 IP - 4Mpx Lite HDTVI /1080p (12FPS) - HDMI Full HD, VGA and BNC (CVBS) output - (4/1) Alarms | 1Ch audio / 1 HDD
€117.00
€180.00
Save 35%
Tax included
Reference
SF-HTVR6104AP-HEVC
Brand
Safire
Safire SF-HTVR6104AP-HEVC - Safire 5n1 H.265+ Recorder, Power over Coaxial (Only…
€117.00
€180.00
Save 35%
You might also like
- Safire
- DVR 5n1
- 4Ch video HDTVI/HDCVI/AHD/CVBS / 1 IP (extra) / 1Ch audio
- H.265+/H.265/H.264+/H.264
- Resolution 4Mpx Lite (HDTVI) /1080p (12FPS) or 3Mpx (1Ch-HDTVI) / 1080PLite/720P (25FPS)
- PTZ Control (RS485/Coaxial)
- Alarms
- HDMI Full HD, VGA & CVBS Outputs
- Power Over Coaxial (Only compatible with Safire PoC)
- Mouse
- Space for 1 HDD
Features
- Safire 5n1 H.265+ Recorder
- Power over Coaxial (Only with Safire PoC)
- 4 CH HDTVI / HDCVI / AHD / CVBS / 1 IP
- 4Mpx Lite HDTVI /1080p (12FPS)
- HDMI Full HD, VGA and BNC (CVBS) output
- (4/1) Alarms | 1Ch audio / 1 HDD
Specs
| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 4 Channels from BNC and 1 Channel IP (4Mpx) |
| Video outputs | 1 HDMI Full HD, 1 VGA, 1 BNC (CVBS) Independent |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.265+ / H.265 / H.264+ / H.264 / G.711u |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 4Mpx Lite HDTVI / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF |
| Main Stream coding | 4Mpx Lite HDTVI /1080p (12 FPS) / 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS) |
| Extra Stream coding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| PoC range | PoC Safire | PoC.af (200 m) / PoC.at (100 m) |
| PoC capacity | 4 AT or 4 AF |
| PoC compatibility | Only compatible with SAFIRE PoC. The PoC camera should not be connected if it is connected to an external power source |
| Alarms | 4 inputs / 1 relay |
| Video analysis | VCA: Tripwire | Area intrusion | Audio exception |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 48 V / 1.5 A |
| Dimensions / Weight | 45 (H) x 315 (W) x 242 (D) mm / 2.0 Kg |
Package content
- Safire 5 in 1 DVR
- Mouse
- Adapter AC/DC 48 V / 1.5 A
- CD with manual and software
Data sheet
- Power
- DC 48 V / 1.5 A
- Power supply
- DC 48 V / 1.5 A
- Dimensions / Weight
- 45 (H) x 315 (W) x 242 (D) mm / 2.0 Kg
- Communication
- RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet)
RS485 (PTZ) / 2 x USB (Mouse and backup) / Remote control / RJ45 (Ethernet) - Video format
- HDTVI / HDCVI / AHD / CVBS / IP
- Video inputs
- 4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
- Bidirectional audio
- Reusing the audio input/output
- Display resolution
- 1920x1080, 1280x1024, 1280x720, 1024x768
- Simultaneous multifunction
- Pentaplex: Live, Recording, Playback, Backup and Remote Access
- Alarms
- 4 inputs / 1 relay
- Recording method
- Manual, programmed, motion detection, alarm
- Internal memory
- 1 HDD SATA 3.5\" of up to 6TB (not included)
- Remote access
- Web browser, Smartphone App and Safire Control Center CMS Software
- Video outputs
- 1 HDMI Full HD, 1 VGA, 1 BNC (CVBS) Independent
- Video / audio compression
- H.265+ / H.265 / H.264+ / H.264 / G.711u
- Main Stream coding
- 4Mpx Lite HDTVI /1080p (12 FPS) / 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
- Hybrid configuration
- 4 Channels from BNC and 1 Channel IP (4Mpx)
- Audio inputs
- 1 Channel RCA
- Audio outputs
- 1 Channel RCA
- Recording resolution
- 4Mpx Lite HDTVI / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF
- Extra Stream coding
- WD1 / 4CIF (12FPS) / CIF (25 FPS)
- Backup
- USB (Memory, HDD, CD-RW, DVR-RW) / Network
- Video analysis
- VCA: Tripwire | Area intrusion | Audio exception
- PoC range
- PoC Safire | PoC.af (200 m) / PoC.at (100 m)
- PoC capacity
- 4 AT or 4 AF
- PoC compatibility
- Only compatible with SAFIRE PoC. The PoC camera should not be connected if it is connected to an external power source
Safire 5n1 H.265+ Recorder - Power over Coaxial (Only with Safire PoC) - 4 CH HDTVI / HDCVI / AHD / CVBS / 1 IP - 4Mpx Lite HDTVI /1080p (12FPS) - HDMI Full HD, VGA and BNC (CVBS) output - (4/1) Alarms | 1Ch audio / 1 HDD
