X-Security XS-XVR6104S-1FACE - DVR 5n1 X-Security, 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) +…
search
  • X-Security XS-XVR6104S-1FACE - DVR 5n1 X-Security, 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) +…

X-Security XS-XVR6104S-1FACE - DVR 5n1 X-Security, 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) +…

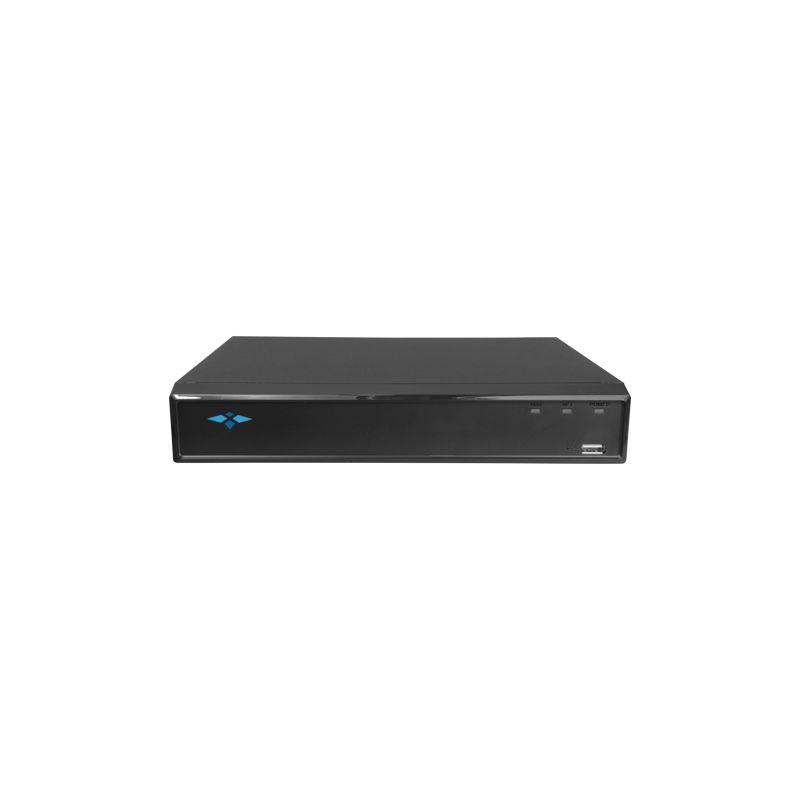

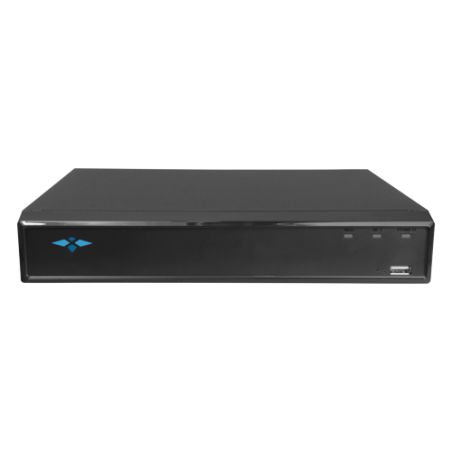

DVR 5n1 X-Security - 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) + 2 IP(6Mpx) - Audio over coaxial - 4Mpx Lite(15FPS) or 1080p Lite(25FPS) resolution - 1 CH facial recognition - 2 CH Human and vehicle recognition
€126.00
Tax included
Reference XS-XVR6104S-1FACE
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-XVR6104S-1FACE - DVR 5n1 X-Security, 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) +…

X-Security XS-XVR6104S-1FACE - DVR 5n1 X-Security, 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) +…

€126.00

You might also like

  • X-Security
  • DVR 5n1
  • 4 CH video HDTVI/HDCVI/AHD/CVBS / 4+2 IP / 1 CH audio
  • H.265Pro+/H.265Pro/H.264+/H.264
  • Resolución 5M-N (10FPS) o 4M-N/1080p (15FPS) o 1080N/720P (25/30FPS)
  • PTZ Control (RS485/Coaxial)
  • Audio over coaxial
  • HDMI Full HD, VGA & CVBS Outputs
  • 1 CH facial recognition
  • Human and Vehicle Recognition (Available for 4 CH coaxial video)
  • Compact size
  • Mouse
  • 2 USB Ports
  • Space for 1 HDD

Features

  • DVR 5n1 X-Security
  • 4 CH HDTVI/HDCVI/AHD/CVBS(5Mpx) + 2 IP(6Mpx)
  • Audio over coaxial
  • 4Mpx Lite(15FPS) or 1080p Lite(25FPS) resolution
  • 1 CH facial recognition
  • 2 CH Human and vehicle recognition

Specs

BrandX-Security
Video formatHDTVI / HDCVI / AHD / CVBS / IP
Video inputs4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configurationUp to 6 IP Channels (6Mpx), replacing all the BNC channels
Video outputs1 HDMI 1080p, 1 VGA
Video / audio compressionH.265+/H.265/H.264+/H.264
Display resolution1920x1080, 1280x1024, 1280x720
Total bandwidth64 Mbps
Recording resolution5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF
Main Stream coding5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS)
Extra Stream codingD1 / CIF (1~15 FPS)
Simultaneous multifunctionPentaplex: Live, Recording, Playback, Backup and Remote Access
Audio inputs1 Channel RCA
Audio outputs1 Channel RCA
Bidirectional audioReusing the audio input/output
Alarms IN/OUTNo
Video analysisIVS: Tripwire | Area intrusion | Abandoned object | Face detection
Facial recognition1 live analogue face comparison channel
Intelligent motion detectionUp to 4 channels capable of classifying targets amongst humans and vehicles
Recording methodManual, programmed, motion detection, alarm
BackupUSB / Network
Internal memory1 SATA HDD 3.5" of up to 6 TB (not included)
CommunicationRS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote accessWeb browser (ActiveX), mobile phone application or PSS software
PowerDC 12V / 1.5A
Dimensions / Weight47.6 (H) x 260 (W) x 237.5 (D) mm / 1 Kg

Package content

  • DVR 5 in 1 X-Security
  • Mouse
  • 12VDC Power supply

Data sheet

Power
DC 12V / 1.5A
Dimensions / Weight
47.6 (H) x 260 (W) x 237.5 (D) mm / 1 Kg
Communication
RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Video format
HDTVI / HDCVI / AHD / CVBS / IP
Video inputs
4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio
Reusing the audio input/output
Display resolution
1920x1080, 1280x1024, 1280x720
Total bandwidth
64 Mbps
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Recording method
Manual, programmed, motion detection, alarm
Internal memory
1 SATA HDD 3.5\" of up to 6 TB (not included)
Remote access
Web browser (ActiveX), mobile phone application or PSS software
Video outputs
1 HDMI 1080p, 1 VGA
Video / audio compression
H.265+/H.265/H.264+/H.264
Main Stream coding
5M-N(10 FPS), 4M-N/1080p(15 FPS), 1080N / 720p / 960H / D1 / CIF (25/30 FPS)
Hybrid configuration
Up to 6 IP Channels (6Mpx), replacing all the BNC channels
Audio inputs
1 Channel RCA
Audio outputs
1 Channel RCA
Recording resolution
5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF
Extra Stream coding
D1 / CIF (1~15 FPS)
Backup
USB / Network
Video analysis
IVS: Tripwire | Area intrusion | Abandoned object | Face detection
Alarms IN/OUT
No
Intelligent motion detection
Up to 4 channels capable of classifying targets amongst humans and vehicles
Facial recognition
1 live analogue face comparison channel
