SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 179SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7365 AND id_lang = 1 Xtralis XTL-49841000 - XTRALIS Ethernet PoE I/O Module, 4 voltage-free…
  • -35%
Xtralis XTL-49841000 - XTRALIS-Modulo ethernet Poe I/O master, 4 entradas…
search
  • Xtralis XTL-49841000 - XTRALIS-Modulo ethernet Poe I/O master, 4 entradas…

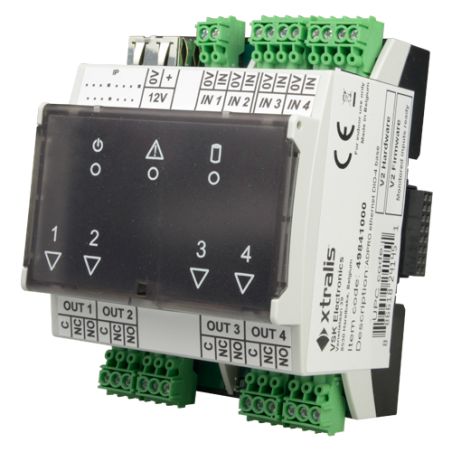

Xtralis XTL-49841000 - XTRALIS Ethernet PoE I/O Module, 4 voltage-free…

XTRALIS Ethernet PoE I/O Module - 4 voltage-free contact inputs - 4 relay outputs - 3 LED indicators - DIN rail mounting - Supports slave modules
€326.30 €502.00 Save 35%
Tax included
Reference XTL-49841000
Brand Xtralis
Quantity
Available in 24/48h

Free shipping
Xtralis XTL-49841000 - XTRALIS-Modulo ethernet Poe I/O master, 4 entradas…

Xtralis XTL-49841000 - XTRALIS Ethernet PoE I/O Module, 4 voltage-free…

€326.30 €502.00 Save 35%
  • Module with LED indicators, contact inputs and relay outputs, FastTrace compatible 2 Series, iFT Series, iFT Gateway.
  • The analytical system controls the I/O units via the Ethernet network (10 Mbps).
  • The module has 4 voltage-free contact inputs (default = NO).
  • 4 relay outputs (voltage free switchover contacts) each with status LED.
  • 3 LED indicators for system status (red = recording; yellow = fault; green = power supply).
  • Mounted on DIN rail
  • Extendible with up to three extension units. Extension units are powered from the base unit. Each extension unit offers 4 additional monitors or contact inputs and 4 relay outputs.
  • Powered by a local adapter (12 VDC; min 350 mA) or by a PoE switch or injector

Features

  • XTRALIS Ethernet PoE I/O Module
  • 4 voltage-free contact inputs
  • 4 relay outputs
  • 3 LED indicators
  • DIN rail mounting
  • Supports slave modules

Specs

Power:

- Voltage

- Consumption

12 VDC / 350 mA (min), adapter or POE injector

12 VDC ± 10%

190 mA max. (all relays and LEDs activated), 140 mA (with all relays off)
Inputs 4 voltage free contact inputs, NO or NC (NO by default)
Outputs 4 relay outputs: NC/NA, 30vdc @1A
Dimensions 72mm x 89.7 mm x 62.2 mm
Operating temperature 0-40 °C
Relative humidity 20-93% (non condensing)

Package content

  • In/Out Module

Data sheet

Dimensions
72mm x 89.7 mm x 62.2 mm
Operating temperature
0-40 °C
Relative humidity
20-93% (non condensing)
Inputs
4 voltage free contact inputs, NO or NC (NO by default)
Outputs
4 relay outputs: NC/NA, 30vdc @1A
Power: - Voltage - Consumo
12 VDC / 350 mA (min), adaptador o inyector POE 12 VDC ± 10% 190 mA max. (todos los reles y led activados), 140 mA (con todos los reles apagados)
Power: - Voltage - Consumption
12 VDC / 350 mA (min), adapter or POE injector 12 VDC ± 10% 190 mA max. (all relays and LEDs activated), 140 mA (with all relays off)
Power: - Voltage - Consumption
12 VDC / 350 mA (min), adapter or POE injector 12 VDC ± 10% 190 mA max. (all relays and LEDs activated), 140 mA (with all relays off)
