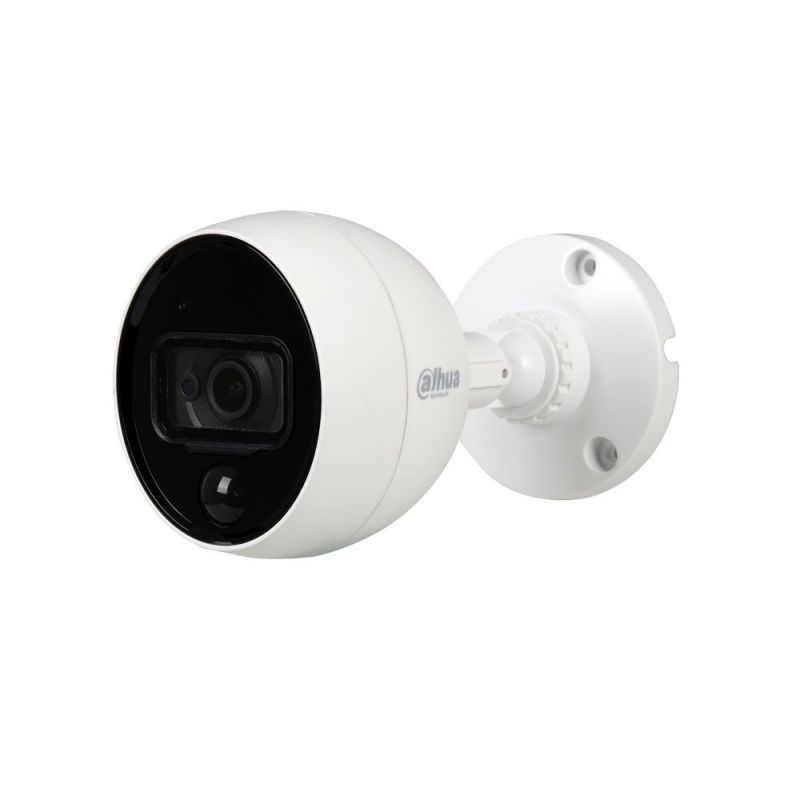

Dahua HAC-ME2802B. HDCVI camera with Smart IR of 20 m for outdoors. PIR de 10 m, 110° integrated. 1/2"" CMOS, 4K/8MP. Dual output HDCVI/CVBS DIP switch. 2,8 mm (110,8°) lens. 0,005 lux. ICR filter. OSD, AWB, AGC, BLC, HLC, real WDR 120dB, 2D/3D-NR. IP67, Lightning-proof 4KV. 3AXIS bracket. 12V DC. UTC. Hac-me2802b.

Description

This MotionEye model is an indoor/outdoor dual detection camera which uses both video and infrared sensor to achieve motion detection and PIR functionality, reducing false alarms and ensuring the accuracy and effectiveness of real-time alarm information. Built-in PIR and coax alarm output makes the camera an ideal choice for applications which require video verification of intrusion alarms, such as courtyards, offices, warehouses, stores, etc

- HDCVI camera with PIR for video verification

- 1/2” CMOS sensor, 8 MP

- Digital resolution: 8MP (3840x2160) @15 fps, 6MP @20 fps, 4MP @25 fps

- 0,005 lux F1.6 (color, 30IRE) / 0 lux F1.6 (IR on)

- Removable mechanical filter

- Smart IR: 1 led, 20 m

- 2,8 mm fixed lens (110,8°)

- OSD via coaxial (up to 700 m) or UTP (up to 300 m)

- Auto/manual white balance

- Automatic gain control

- 2D/3D noise reduction

- BLC, HLC

- Real WDR 120dB

- PIR detector (passive IR) integrated with a range of 10 meters, 110º

- Height installation 2,2 ~ 2,5 meters

- Power supply: 12V DC (±30%)

- Consumption: 5,3W (max.)

- Working temperature: -10°C ~ +50°C

- RH: <95%

- Lightning-proof 4KV

- IP67

- Alumnim and plastic case

- Dimensions: 146,6 x 72,4 x 83 mm

- Weight: 250 g

- 3 AXIS
