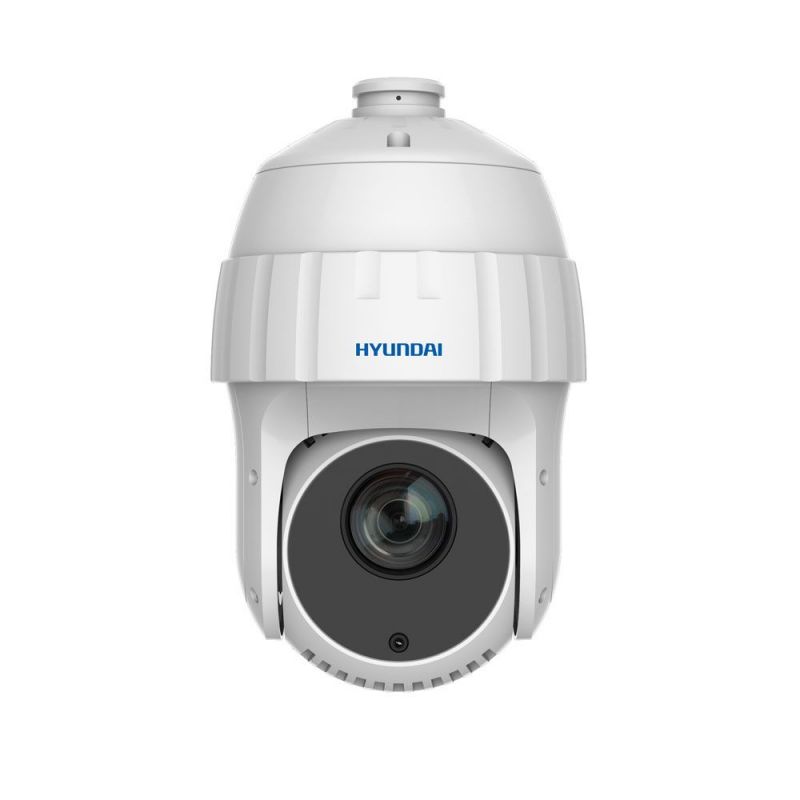

Hyundai HYU-431N. 4 in 1 PTZ PRO series of 120°/sec. with IR illumination of 150 m, for outdoors. 1/2,8" CMOS, 2MP. 4 in 1 output (HDTVI / HDCVI / AHD / 960H). 25X optical zoom of 4,8~120 mm (57,6°~2,5°). 16X digital zoom. ICR filter. OSD, AWB, AGC, BLC, WDR true 120dB, 3D-DNR, EIS, 8 privacy mask. 256 presets. Pelco-D/P. RS485 Half Duplex. 2 input / 1 output of alarm. IP66, Lightning-proof. 24V AC. Bracket and power supply is not included Domo ptz hyundai nextgen hdtvi 2mp 1080p 25x ir 150m ip66.

- 1/2,8" CMOS sensor, 2MP

- Resolution: 1080P (1920x1080)

- Frames per second: 25 fps @1080P

- Day/night mode with removable mechanical filter

- IR illumination up to 150 meters

- 0,005 lux F1.6 (color, AGC On) / 0,001 lux F1.6 (B/N, AGC On) / 0 lux IR On

- 25X optical zoom: 4,8 ~ 120 mm

- Viewing angle: 57,6°~2,5°(H), 34,4°~1,4°(V)

- F1.6~F3.5 aperture range

- Focus mode: auto, semi-auto and manual

- Speed zoom: 3,6 sec. aprox.

- Digital zoom: 16X

- 4 in 1 output: HDTVI / HDCVI / AHD / CVBS 960H

- White balance: 5 configurations

- Auto and manual gain control

- Backlight compensation (BLC, HLC)

- WDR true 120dB

- 3D-DNR

- EIS

- Regional focus

- 8 privacy masks (programmable)

- Horizontal positioner: 360° continuous

- Vertical positioner: -15° ~ 90°, autoflip 180°

- Manual speed: 0,1° ~ 120°/sec. (H), 0,1° ~ 80°/sec. (V)

- Preset speed: 120°/sec. (H), 80°/sec. (V)

- Rotation speed can be automatically adjust according to zoom multiples

- 256 presets

- Pelco-D/P and HYUNDAI protocols

- 5 patterns, 10 rounds (32 presets per round)

- 3D intelligent positioner

- RS485 half-duplex port

- Alarm: 2 in / 1 out

- Power supply: 24V AC

- Consumption: Max. 30W (IR: 10W)

- Working temperature: -30°C ~ +65°C

- RH: <90%

- IP66

- Lightning-proof (4000V), protection against surges and voltage spikes

- Dimensions: Ø208 x 305 mm

- Weight: 3,3 kg
