SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 225SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13169 AND id_lang = 1 Hyundai DS-2AE7232TI-A(C) 4 in 1 PTZ of 160°/sec
Hyundai HYU-692 Ds-2ae7232ti-a(c)
search
  • Hyundai HYU-692 Ds-2ae7232ti-a(c)

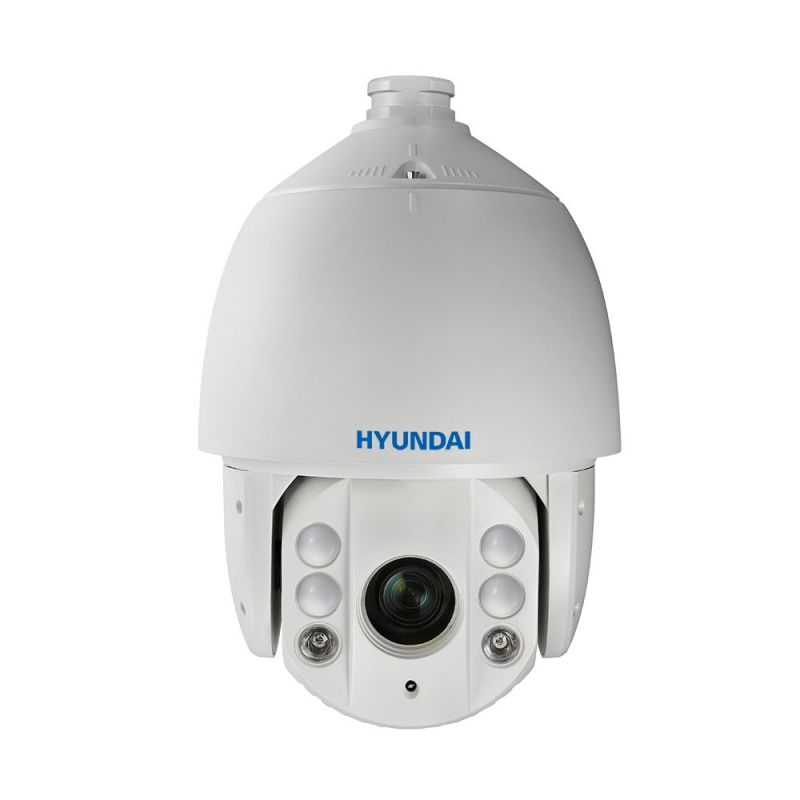

Hyundai DS-2AE7232TI-A(C) 4 in 1 PTZ of 160°/sec

4 in 1 PTZ of 160°/sec. with IR illumination of 150 m, for outdoors. 1/2,8" CMOS, 2 MP. 1080P at 25 fps. 32X optical zoom of 4,8~153 mm (54,2°~1,97°). 16X digital zoom. 4 in 1 output (HDCVI / HDTVI / AHD / CVBS). ICR filter. OSD, AWB, AGC, BLC, HLC, EIS, WDR true 120 dB, 3D-DNR, privacy mask.…
€865.69
Tax included
Reference DS-2AE7232TI-A(C)
Brand Hyundai
Quantity
Out-of-Stock

Free shipping

Hyundai DS-2AE7232TI-A(C). 4 in 1 PTZ of 160°/sec. with IR illumination of 150 m, for outdoors. 1/2,8" CMOS, 2 MP. 1080P at 25 fps. 32X optical zoom of 4,8~153 mm (54,2°~1,97°). 16X digital zoom. 4 in 1 output (HDCVI / HDTVI / AHD / CVBS). ICR filter. OSD, AWB, AGC, BLC, HLC, EIS, WDR true 120 dB, 3D-DNR, privacy mask. 256 presets. Pelco-D/P. RS485 Half Duplex. IP66, Lightning-proof. 24V AC. Bracket and power supply is not included.





Features

  • 1/2,8" CMOS sensor
  • 1080P at 25 fps
  • 32X optical zoom and 16X digital
  • 4 in 1 video output switch
  • IR illumination up to 150 meters
  • WDR 120dB, BLC, HLC, 3D-DNR, Defog, EIS
  • IP66

Specs

  • 1/2,8" CMOS sensor, 2 MP
  • Digital resolution: 1080P (1920x1080)
  • Day/night mode with removable mechanical filter
  • IR illumination up to 150 meters
  • IR illumination intensity adapts automatically depending on zoom level
  • Minimum illumination: 0,005 lux F1.6 color / 0,001 lux F1.6 B/W
  • 32X optical zoom: 4,8 ~ 153 mm
  • Viewing angle: 54,2°~1,97°H
  • Focus mode: auto, semiauto and manual
  • Zoom speed of 3,5 sec
  • 16X digital zoom
  • 4 in 1 switch output: HDCVI / HDTVI / AHD / CVBS
  • OSd via coaxial (300 meter range, only on CVI/TVI/AHD modes)
  • White balance: Auto, Manual, ATW, indoor, outdoor
  • Gain control: auto/manual
  • Regional focus
  • EIS
  • BLC, HLC
  • WDR true 120 dB
  • 3D-DNR
  • 8 programmable privacy mask
  • Horizontal positioner: 360° continuous
  • Vertical positioner: -15° ~ 90°, autoflip 180°
  • Manual speed: 0,1° ~ 160°/sec. (H), 0,1° ~ 120°/sec. (V)
  • Preset speed: 160°/sec. (H), 120°/sec. (V)
  • Rotation speed can be adjust automatically with zoom multiples
  • 256 presets
  • RS485 half-duplex
  • Protocols Pelco-D/P, protocol HYUNDAI
  • 5 patterns (with total recording < 10 minutes), 10 rounds (32 presets per round)
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ positioning display
  • Preset Freeze
  • Scheduled Task : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power supply: 24V AC, max. 40W
  • Working temperature -30°C ~ +65°C
  • RH: <90%
  • IP66
  • Lightning-proof (4000V), protection against surges and voltage spikes
  • Dimensions: Ø220 x 353,4 mm
  • Weight: 4,5 kg
  • Bracket and power supply is not included
