  • X-Security XS-SD6325ISWA-2E4N1 - X-Security motorised 240º/s HDCVI camera, 1080P…

X-Security XS-SD6325ISWA-2E4N1 - X-Security motorised 240º/s HDCVI camera, 1080P…

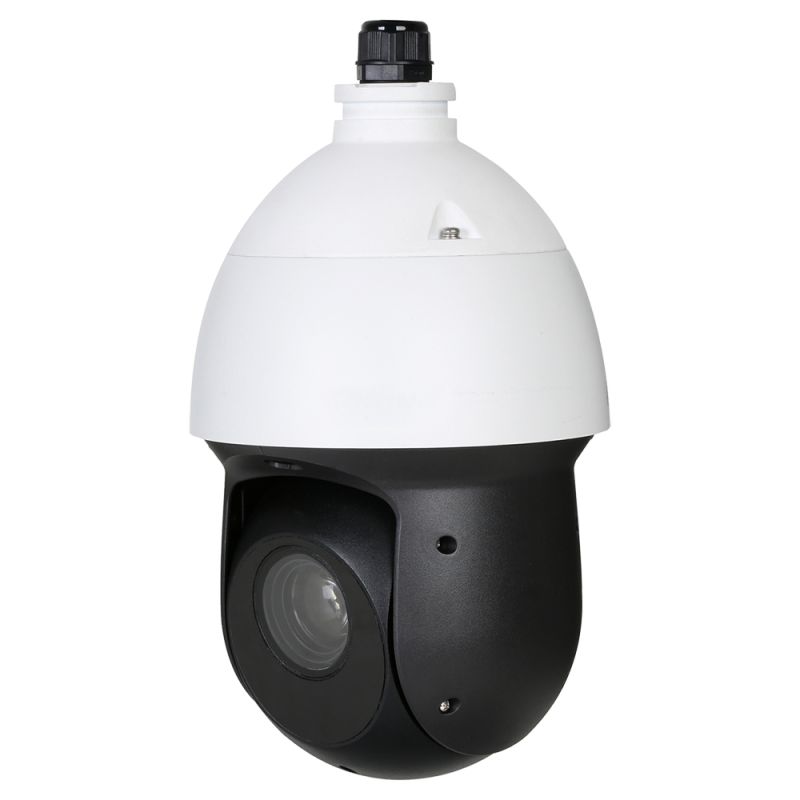

X-Security motorised 240º/s HDCVI camera - 1080P (25/30FPS) / 720P (25/50FPS) - 1/2.8" Sony© 2 Megapixel Starvis CMOS - 6 LEDs Range 100 m - Optical Zoom 25X (4.8~120 mm) - WDR / Audio / Alarms / IP66
€510.00
Tax included
Reference XS-SD6325ISWA-2E4N1
Brand X-Security
Quantity
In Stock

Free shipping
X-Security XS-SD6325ISWA-2E4N1 - X-Security motorised 240º/s HDCVI camera, 1080P…

X-Security XS-SD6325ISWA-2E4N1 - X-Security motorised 240º/s HDCVI camera, 1080P…

€510.00
  • X-Security
  • HDCVI and Analog Motorised Dome Camera
  • High Speed 240º/segundo
  • 25X Optical zoom
  • 16X Digital zoom
  • 1/2.8" Sony© 2 Megapixel Starvis CMOS
  • HD 1080P (1920x1080)
  • Output 4in1
  • 4.8~120 mm Varifocal lens
  • High sensitivity Starlight
  • IR Range 100 m
  • IR Cut
  • WDR
  • Audio
  • Alarms
  • Pelco P/D protocols supported
  • OSD Menu
  • Weatherproof IP66
  • Wall bracket PFB305W included

Features

  • X-Security motorised 240º/s HDCVI camera
  • 1080P (25/30FPS) / 720P (25/50FPS)
  • 1/2.8" Sony© 2 Megapixel Starvis CMOS
  • 6 LEDs Range 100 m
  • Optical Zoom 25X (4.8~120 mm)
  • WDR / Audio / Alarms / IP66

Specs

Brand X-Security
Image sensor 1/2.8" Sony© 2 Megapixel Starvis
Resolution 1080Pa 25 FPS / 720P a 50 FPS
Video output 1 x BNC switchable HDCVI / CVBS
Minimum illumination 0.005 Lux (color) @F1.6 / 0 Lux (B/N)
Infrared lighting 6 automatic LEDs with IR range of up to 100 meters
Lens Varifocal 4.8~120 mm (Optical Zoom 25X)
Digital zoom 16 X
Electronic shutter 1/3s~1/100,000s
Day / Night Removable mechanical ICR filter
Gain Control Auto / Manual
Backlight compensation BLC, HLC,WDR (120dB), AWB, ATW, AGC, 2D/3D-NR, privacy masking
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual speed Horizontal: 0.1° ~200°/s, Vertical: 0.1° ~120°/s
Speed between Presets Horizontal: 240° /s, Vertical: 200° /s
Preset positions 300 preset, 5 auto pattern, 8 auto tour,auto pan, auto scan
Communication RS485, Pelco P / Pelco D / DH-SD
Audio 1 input (Line In)
Alarms 2 inputs / 1 relay NO/NC
Power 12 V DC / 3 A
Temp. operation -40º C ~ +70º C
Degree of protection IP66
Dimensions (without bracket) 295 mm (H) x 160 (Ø) mm
Weight (without bracket) 4200 g

Package content

  • Speed dome camera
  • PFB305W wall bracket
  • Allen wrench
  • User instructions
  • CD with software and instructions

Data sheet

Power
12 V DC / 3 A
Resolution
1080Pa 25 FPS / 720P a 50 FPS
Temp. operation
-40º C ~ +70º C
Degree of protection
IP66
Communication
RS485, Pelco P / Pelco D / DH-SD
Video output
1 x BNC switchable HDCVI / CVBS
Audio
1 input (Line In)
Image sensor
1/2.8\" Sony© 2 Megapixel Starvis
Minimum illumination
0.005 Lux (color) @F1.6 / 0 Lux (B/N)
Lens
Varifocal 4.8~120 mm (Optical Zoom 25X)
Infrared lighting
6 automatic LEDs with IR range of up to 100 meters
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual speed
Horizontal: 0.1° ~200°/s, Vertical: 0.1° ~120°/s
Preset positions
300 preset, 5 auto pattern, 8 auto tour,auto pan, auto scan
Alarms
2 inputs / 1 relay NO/NC
Digital zoom
16 X
Electronic shutter
1/3s~1/100,000s
Speed between Presets
Horizontal: 240° /s, Vertical: 200° /s
Gain Control
Auto / Manual
Backlight compensation
BLC, HLC,WDR (120dB), AWB, ATW, AGC, 2D/3D-NR, privacy masking
Dimensions (without bracket)
295 mm (H) x 160 (Ø) mm
Weight (without bracket)
4200 g
