SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 115SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 4892 AND id_lang = 1 X-Security XS-HCVR8204-4K - HDCVI/CVBS/IP Universal Recorder, 4 CH video / 4+2 IP…
  • -35%

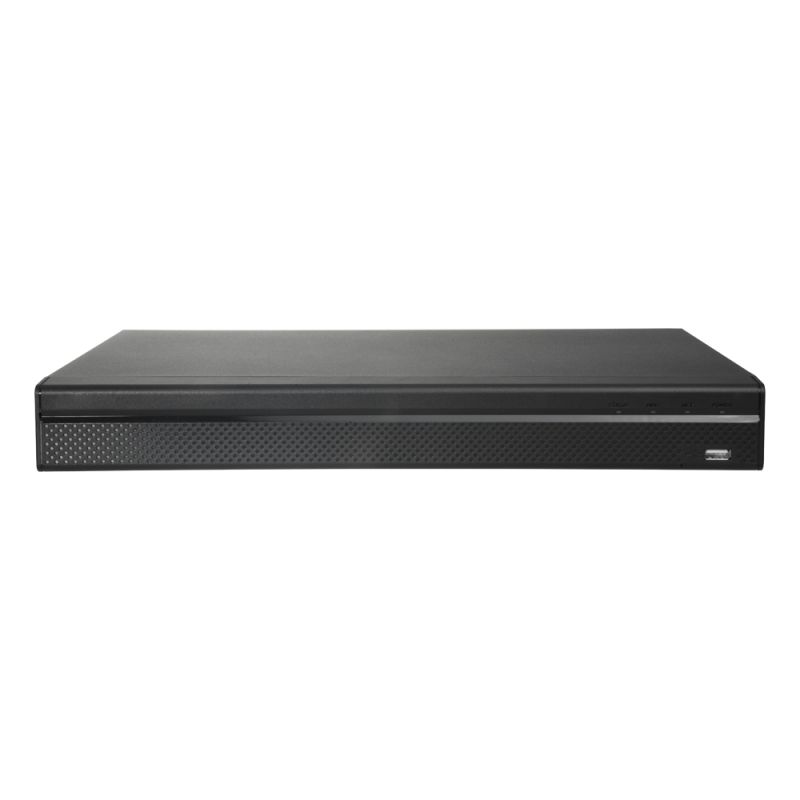

X-Security XS-HCVR8204-4K - HDCVI/CVBS/IP Universal Recorder, 4 CH video / 4+2 IP…
search
  • X-Security XS-HCVR8204-4K - HDCVI/CVBS/IP Universal Recorder, 4 CH video / 4+2 IP…

X-Security XS-HCVR8204-4K - HDCVI/CVBS/IP Universal Recorder, 4 CH video / 4+2 IP…

HDCVI/CVBS/IP Universal Recorder - 4 CH video / 4+2 IP / 1 CH audio - 4K (12FPS) or 4 Mpx/1080P (25FPS) - Intelligent functions - Outputs 4K HDMI & VGA - Space for 2 hard disks
€97.50 €150.00 Save 35%
Tax included
Reference XS-HCVR8204-4K
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-HCVR8204-4K - HDCVI/CVBS/IP Universal Recorder, 4 CH video / 4+2 IP…

X-Security XS-HCVR8204-4K - HDCVI/CVBS/IP Universal Recorder, 4 CH video / 4+2 IP…

€97.50 €150.00 Save 35%

You might also like

  • X-Security
  • Universal DVR
  • 4 CH HDCVI or CVBS video / 4+2 IP / 1 CH audio
  • H.264+/H.264
  • Resolution per channel: 4K (15FPS), 4 Mpx (25FPS) or 1080P (25FPS)
  • PTZ Control (RS485/Coaxial)
  • Intelligent functions
  • Outputs 4K HDMI & VGA
  • Mouse
  • Space for 2 HDD

Features

  • HDCVI/CVBS/IP Universal Recorder
  • 4 CH video / 4+2 IP / 1 CH audio
  • 4K (12FPS) or 4 Mpx/1080P (25FPS)
  • Intelligent functions
  • Outputs 4K HDMI & VGA
  • Space for 2 hard disks

Specs

Brand X-Security
Video format HDCVI / analogue CVBS / IP
Video inputs 4 BNC, HDCVI or CVBS interchangeably channels
Hybrid configuration Up to 6 IP Channels (8Mpx), replacing all the BNC channels
Bandwidth 24Mbps
Video outputs 1 HDMI 4K, 1 VGA
Audio inputs 1 Channel RCA
Audio outputs 1 Channel RCA
Bidirectional audio Reusing input / output audio
Video / audio compression H.264+ / H.264 / G.711
Display resolution 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Recording resolution 4K (3840 x 2160), 2688x1520 (4Mpx), 1920x1080(1080p), 960x1080(1080N), 1280x720(720p), 960x576(960H), 704x576(D1)
Main Stream coding 4K (1~15 FPS), 4Mpx/1080p/720p/960H/D1/HD1//BCIF/CIF/QCIF (1~25 FPS)
Extra Stream coding D1/CIF/QCIF (1~25 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection
Backup USB / Network devices
Internal memory 2 HDD SATA 3.5"de up to 8 TB (not included)
Communication RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet)
Remote access Browser (ActiveX), mobile app software PSS
Power DC 12 V / 4.0 A
Dimensions / Weight 53 (H) x 375 (W) x 287 (D) mm / 2.35 Kg

Package content

  • X-Security 4 channels recorder
  • Mouse
  • Adapter AC/DC 12 V / 4.0 A
  • User instructions

Data sheet

Power
DC 12 V / 4.0 A
Power supply
DC 12 V / 4.0 A
Dimensions / Weight
53 (H) x 375 (W) x 287 (D) mm / 2.35 Kg
Communication
RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet)
Bandwidth
24Mbps
Video format
HDCVI / analogue CVBS / IP
Video inputs
4 BNC, HDCVI or CVBS interchangeably channels
Bidirectional audio
Reusing input / output audio
Display resolution
3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection
Manuel, programmé, Détection de mouvement
Internal memory
2 HDD SATA 3.5\"de up to 8 TB (not included)
Remote access
Browser (ActiveX), mobile app software PSS
Navigateur (ActiveX), application smartphone logiciel PSS
Net Browser (ActiveX), PSS software mobile phone application
Video outputs
1 HDMI 4K, 1 VGA
Video / audio compression
H.264+ / H.264 / G.711
Main Stream coding
4K (1~15 FPS), 4Mpx/1080p/720p/960H/D1/HD1//BCIF/CIF/QCIF (1~25 FPS)
Hybrid configuration
Up to 6 IP Channels (8Mpx), replacing all the BNC channels
Audio inputs
1 Channel RCA
Audio outputs
1 Channel RCA
Recording resolution
4K (3840 x 2160), 2688x1520 (4Mpx), 1920x1080(1080p), 960x1080(1080N), 1280x720(720p), 960x576(960H), 704x576(D1)
Extra Stream coding
D1/CIF/QCIF (1~25 FPS)
Backup
USB / Network devices
