AJ-DEMOCASE2-W - Ajax Demo Case, Professional Alarm Kit Grade 2, Ajax…
Ajax Demo Case - Professional Alarm Kit Grade 2 - Ajax MotionCam for capturing images - Ethernet and GPRS communication - 868MHz Jeweller Wireless - Mobile App and PC Software / White color
€552.50
€850.00
Save 35%
Tax included
Reference
AJ-DEMOCASE2-W
Brand
Branded
AJ-DEMOCASE2-W - Ajax Demo Case, Professional Alarm Kit Grade 2, Ajax…
€552.50
€850.00
Save 35%
You might also like

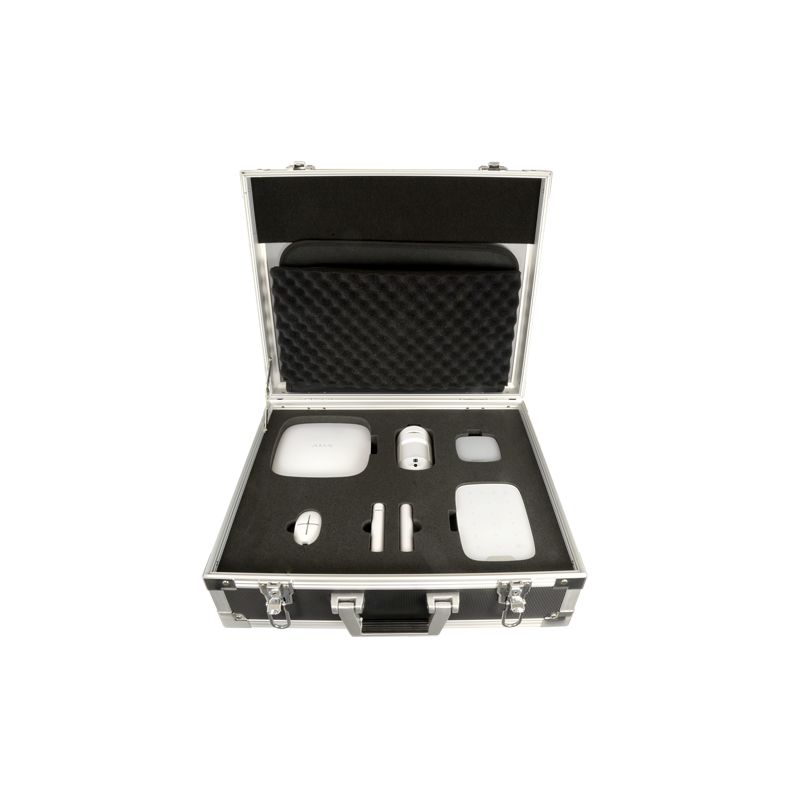

Demo case with the professional alarm system AJAX.
The brief case is ready to make a demonstration of the Ajax intrusion system anywhere, you only need a SIM card to provide internet connection to the Hub, the brain of the system, and a smartphone to demonstrate the Ajax Security System app and show the customer the main features of the alarm system that is revolutionizing Europe: the simple and intuitive use of the App, the maximum configuration capacity and the control of the wireless installation.
The case has an aluminum profile and safety lock and is made with the highest standards of design and quality to ensure a high durability.
Inside we find the most frequent elements in an alarm system:
- AJ-HUB2-W: Central alarm panel
- AJ-MOTIONCAM-W: Pet-immune PIR motion detector with camera
- AJ-DOORPROTECT-W: Magnetic door/window contact.
- AJ-SPACECONTROL-W: Multi-functional bidirectional remote control.
- AJ-KEYPAD-W: Independent wireless keypad
- AJ-HOMESIREN-W: Indoor siren
The briefcase has been designed and made to serve as commercial support in those visits that require on-site demonstration, offering the client a complete vision of the system: elegant design of the different parts, complete and simple APP management, control and management of the different parts and users.
Features
- Ajax Demo Case
- Professional Alarm Kit Grade 2
- Ajax MotionCam for capturing images
- Ethernet and GPRS communication
- 868MHz Jeweller Wireless
- Mobile App and PC Software / White color
Specs
Control Panel |
|
| Brand | Ajax |
| Model | AJ-HUB2-W |
| Security grade | Grade 2 |
| RF frequency | 868 MHz. Protocol via Jeweller wireless technology |
| Internal security | Tamper-resistant opening |
| Internal siren | No |
| Communication | Ethernet / Dual SIM 2G (GPRS) |
| Maximum devices | 100 |
| Video integration | Up to 25 IP cameras or video recorder channels |
| Number or users | Up to 50 |
| Connection with CRA | Contact ID / SIA |
| Compatibility | Not compatible with ocBridge and uartBridge |
| Housing material | ABS plastic |
| Power | AC 110~250 V, 50/60 Hz |
| Backup battery | Duration up to 16 hours |
| Temp. operation | +5º C ~ 40º C |
| Dimensions | 163 (H) x 163 (W) x 36 (D) mm |
PIRCAM |
|
| Model | AJ-MOTIONCAM-W |
| Technology | Volumetric PIR with photo camera |
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweller and Wings (sending images) |
| Transmission distance | ≤ 1700 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Masking | No |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per detection |
| Sending images | Sending and receiving images in less than a minute |
| Infrared lighting | IR for night mode |
| LEDs indication | Alarm, tamper, signal |
| Battery | 2 CR123A3.0 v-batteries (life up to 4 years) |
| Compatibility | AJ-HUB2-W/B |
| Temp. operation | 0º C ~ 40º C |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 135 (H) x 70 (W) x 60 (D) mm |
Magnetic Contact |
|
| Model | AJ-DOORPROTECT-W |
| Security grade | Grade 2 |
| Transmission distance | ≤ 2000 m (in open space) |
| Frequency | 868 MHz |
| Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
| Housing material | ABS plastic |
| Dimensions | 90 mm (D) x 20 (Ø) mm |
Remote control |
|
| Model | AJ-SPACECONTROL-W |
| Security grade | Grade 2 |
| Power | 1 battery CR2032 of 3 V |
| Transmission distance | ≤ 1000 m in open space |
| Frequency | 868 MHz |
| Battery | 1 battery CR123A 3.0 V (approximate life time 5 years) |
| Temp. operation | -20º C ~ 50º C |
| Housing material | ABS plastic |
| Dimensions | 65 (H) x 37 (W) x 10 (D) mm |
Wireless keypad |
|
| Model | AJ-KEYPAD-W |
| Security grade | Grade 2 |
| Functions | Armed, disarmed, partially armed and emergency |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility | Compatible with Ajax Hubs with firmware 2.0 or higher |
| Battery | 4 AAA batteries 1.5 V (approximate life time 2 years) |
| Housing material | ABS plastic |
| Temp. operation | -10º C ~ 50º C |
| Dimensions | 150 (H) x 102.5 (W) x 13.2 (D) mm |
Indoor siren |
|
| Model | AJ-HOMESIREN-W |
| Security grade | Grade 2 |
| Volume | 81~97 dB at 1 meter |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Battery | 2 batteries CR123A 3.0 V (approximate life time 5 years) |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 2000 m in open space |
| LED indicators | Alarm warning and sound signal when armed/disarmed |
| Internal security | Tamper-resistant back |
| Protection | IP50 |
| Dimensions | 75 (H) x 75 (W) x 27 (D)mm |
| Weight | 96 g |
Package content
- Metal demonstration briefcase
- Control Panel AJ-HUB2-W
- PIR detector with camera AJ-MOTIONCAM-W
- Magnetic Contact AJ-DOORPROTECT-W
- Remote control AJ-SPACECONTROL-W
- AJ-KEYPAD-W wireless keypad
- AJ-HOMESIREN-W indoor siren
