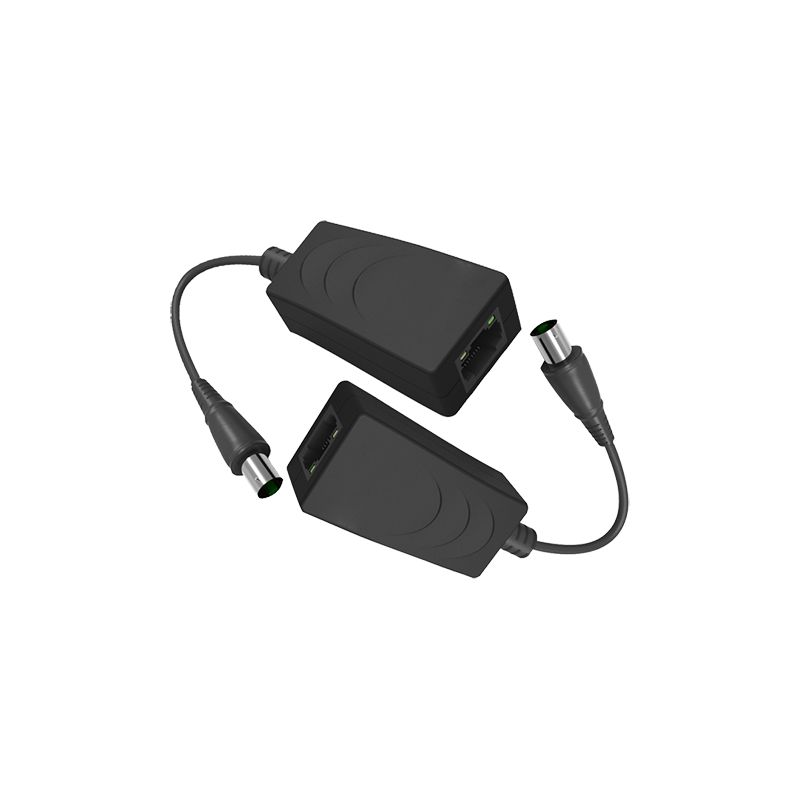

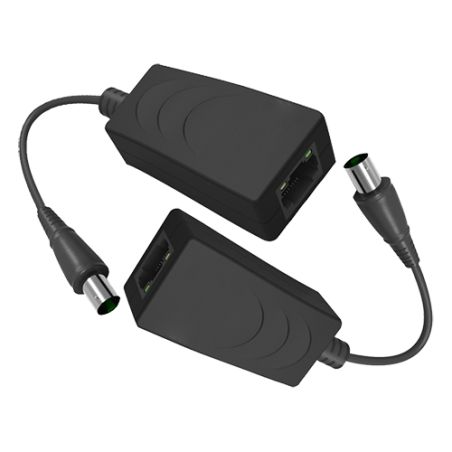

IP extender via coaxial cable - Passive | No power required - Transmitter and receiver - Allows transmission 1 IP channel - Maximum distance 200m (RG59) or 250m (RG6) - Bandwidth up to 100 Mbps
€15.77 €24.26 Save 35%
Tax included
Reference EOC-200
Brand Branded
Quantity
Available in 24/48h

Free shipping
EOC-200 - IP extender via coaxial cable, Active | Requires 9-36…

EOC-200 - IP extender via coaxial cable, Passive | No power…

€15.77 €24.26 Save 35%
  • Ethernet Extender via Coax
  • Passive receiver and transmitter
  • Transmit 1 IP link(s)
  • Maximum distance 200-250 m at 10 Mbps
  • No power supply required

Features

  • IP extender via coaxial cable
  • Passive | No power required
  • Transmitter and receiver
  • Allows transmission 1 IP channel
  • Maximum distance 200m (RG59) or 250m (RG6)
  • Bandwidth up to 100 Mbps

Specs

Connection over coaxialBNC male/female connector
PowerNot required
Datarate10 Mbps
Distance over coaxial200m between extenders (250m with cable RG6)
Ethernet connectionPort RJ45
Ethernet signal10Mbps Base-T
ImpedanceUTP:100 Ohm/Coax:75 Ohm
ProtectionOvervoltages up to 2 kV second IEC61000-4-5
Operating conditions-20℃~85℃ Temperature | 95% Humidity
Dimensions22 (H) x 82 (W) x 115 (D) mm / 90 g

Package content

  • Pair of transceivers
  • Manual

Data sheet

Power
Not required
Ethernet Connection
Port RJ45
Protection
Overvoltages up to 2 kV second IEC61000-4-5
Dimensions
22 (H) x 82 (W) x 115 (D) mm / 90 g
Power supply
DC Active 9-36 V
Not required
Impedance
UTP:100 Ohm/Coax:75 Ohm
Connection over coaxial
BNC male/female connector
Datarate
10 Mbps
10/100 Mbps
Distance over coaxial
200M between transceivers
200m between extenders (250m with cable RG6)
Ethernet signal
10/100Mbps Base-T
10Mbps Base-T
Status indicators
Green: data connection OK | Green flashing: Data transmission OK
Yellow: power OK | Green: data connection OK | Green flashing: Data transmission OK
Operating conditions
-20℃~85℃ Temperature | 95% Humidity
