Professional product, returns are not accepted.

Certified Instant Body Temperature Measurement System Kit with a measurement accuracy ± 0.3°C.

Through the camera's web interface, it is possible to view the detected temperature in real time and act accordingly, starting, for example, two-way communication to the camera's built-in microphone and speaker to separate the subject from the crowd.

• Non-Contact Measurement: Measures the temperature excluding other heat sources, with a distance of up to 3 meters.
• High Efficiency: The built-in AI algorithm allows the measurement of multiple people in real time.
• Accurate Alert: Visual and intelligent alert on abnormal temperatures (user configured).
• Accurate temperature measurement, effective and safe.
• Non-contact detection, fluid pass.
• Multi-person measurement, efficient access.
• Visual abnormal temperature alert for backward tracking.
• Maskless detection for smart control.

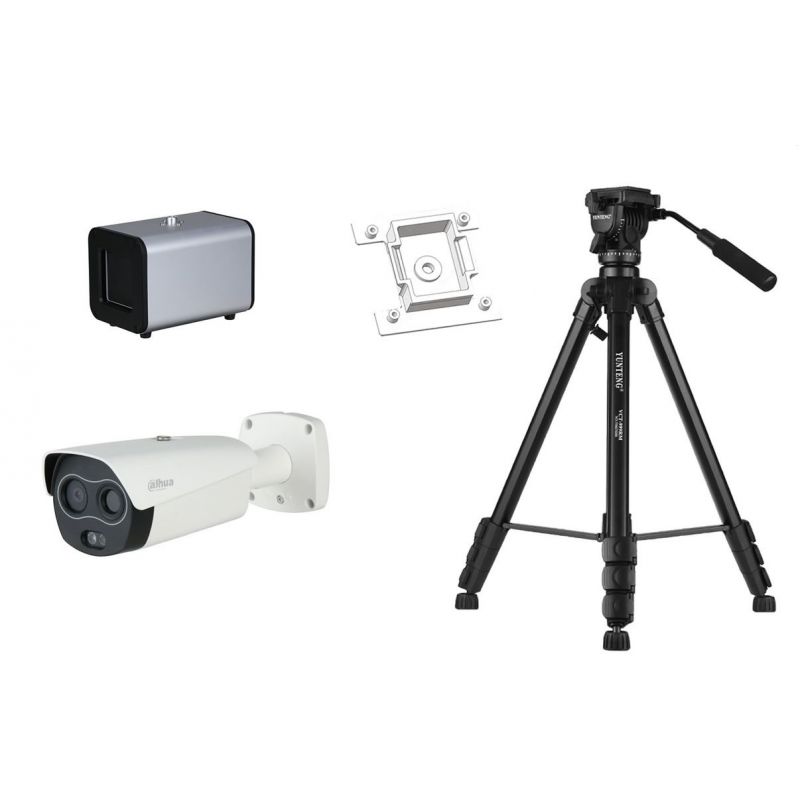

Kit Composed of:

JQ-D70Z

Better known as "Blackbody", it is a certified instrument that, inserted into the shooting range, provides a constant and accurate temperature reference that the camera uses to self-calibrate and increase measurement accuracy. 220V CA.

For indoor use, it has a fan at the rear and is not insulated. It can be used outdoors as long as they are in a controlled situation and not leaving it fixed so that it does not suffer humidity or inclement weather.

TPC-BF3221P-TB7F8-HTM

Hybrid camera with temperature measurement that simultaneously provides a normal image and a thermal image of the scene taken. An artificial intelligence algorithm recognizes human figures and allows measuring the temperature of the face, excluding any other heat source that may constitute a false alarm, at the optimal distance of 3 meters.

• Vox Uncooled Focal Plane Detector
• Resolution: 256 * 192
• Spectral range ： 8μm ~ 14μm
• Thermal lens ： 7mm
• NETD ： <50 mK
• Visible ： 1 / 2.8 "CMOS ， 1080P
• Visible lens ： 4mm / 8mm (optional)
• Alarm ： White light warning light
• built-in horn
• Temperature measurement range ： 30 ℃ ～ 45 ℃ ，
• Temperature measurement accuracy ： ± 0.3 ℃ ，
• with blackbody
• ± 1 ℃ ， without blackbody

VCT-999

Adjustable 4-Section Tripod with Fluid Rocker Head for Blackbody Camera DAHUA-2182 (JQ-D70Z).

RAW021-00

Adapter to attach the Blackbody DAHUA-2182 camera (JQ-D70Z) to the DAHUA-2183 tripod (VCT-999).
