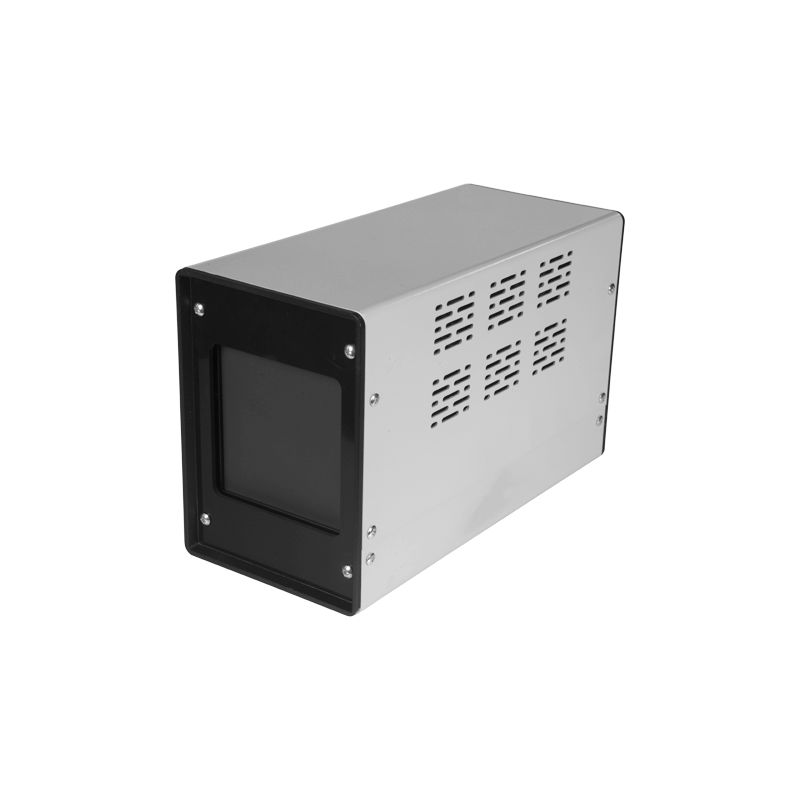

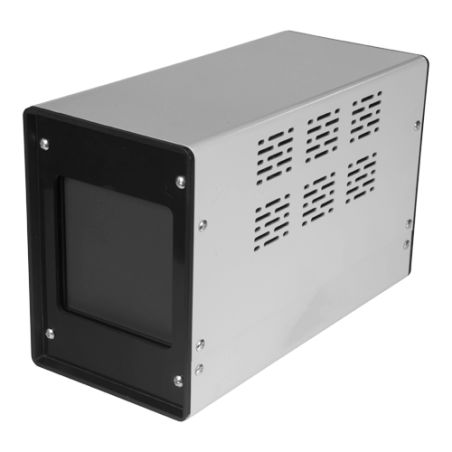

BLACKBODY-TH - Blackbody, Calibration device for thermographic…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Blackbody - Calibration device for thermographic cameras - Infrared emission of 35ºC ~ 60ºC - Stability ±0.1~0.2ºC/h - Emissivity 0.97 ± 0.02 - Guarantees a measurement accuracy of ±0.3ºC

€812.50 €1,250.00 Save 35%

Tax included

Reference BLACKBODY-TH

Brand Branded

BLACKBODY-TH - Blackbody, Calibration device for thermographic…

€812.50 €1,250.00 Save 35%

Description
Product Details

Blackbody
Guarantees a measurement accuracy of ± 0.3ºC
Temperature range: 35ºC ~ 60ºC
Accuracy ± 0.2ºC
Radiation area 78x78 mm
Stability ± 0.1-0.2ºC/h
Emissivity 0.97 ± 0.02

Features

Blackbody
Calibration device for thermographic cameras
Infrared emission of 35ºC ~ 60ºC
Stability ±0.1~0.2ºC/h
Emissivity 0.97 ± 0.02
Guarantees a measurement accuracy of ±0.3ºC

Specs

Device	Blackbody
Temperature Range	35ºC ~ 50ºC (95ºF ~ 122ºF)
Effective Radiation Area	78 x 78 mm
Temperature Resolution	±0.1ºC (0.18ºF)
Temperature Accuracy	±0.2ºC (0.19ºF)
Temperature stability	±0.1~0.2ºC / hour
Effective Emissivity	0.97 ± 0.02
Control Mode	Automatic PID
Power	100 ~ 240VAC, 20W max.
Temp. operation	0º C ~ +30º C
Installation	Mounting on level surface or tripod with interface 2-1 / 4-20UNC
Dimensions	240 mm (Fo) x 110 (An) x 150 (Al) mm
Weight	2 Kg

Package content

Blackbody

Data sheet

Weight: 2 Kg
Power: 100 ~ 240VAC, 20W max.
Temp. operation: 0º C ~ +30º C
Dimensions: 240 mm (Fo) x 110 (An) x 150 (Al) mm
Power supply: 100 ~ 240VAC, 20W max.
Temperature range: 35ºC ~ 50ºC (95ºF ~ 122ºF)
Installation: Mounting on level surface or tripod with interface 2-1 / 4-20UNC
Device: Blackbody
Effective Radiation Area: 78 x 78 mm
Temperature Resolution: ±0.1ºC (0.18ºF)
Temperature Accuracy: ±0.2ºC (0.19ºF)
Temperature stability: ±0.1~0.2ºC / hour
Effective Emissivity: 0.97 ± 0.02
Control Mode: Automatic PID
