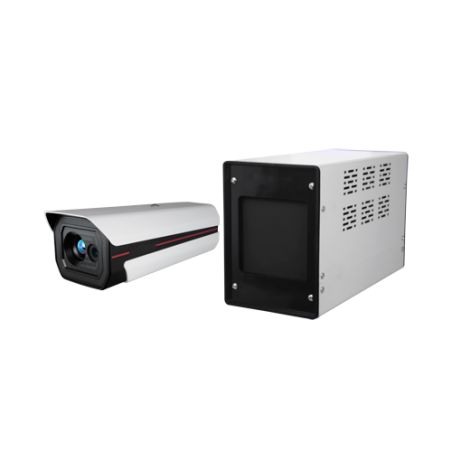

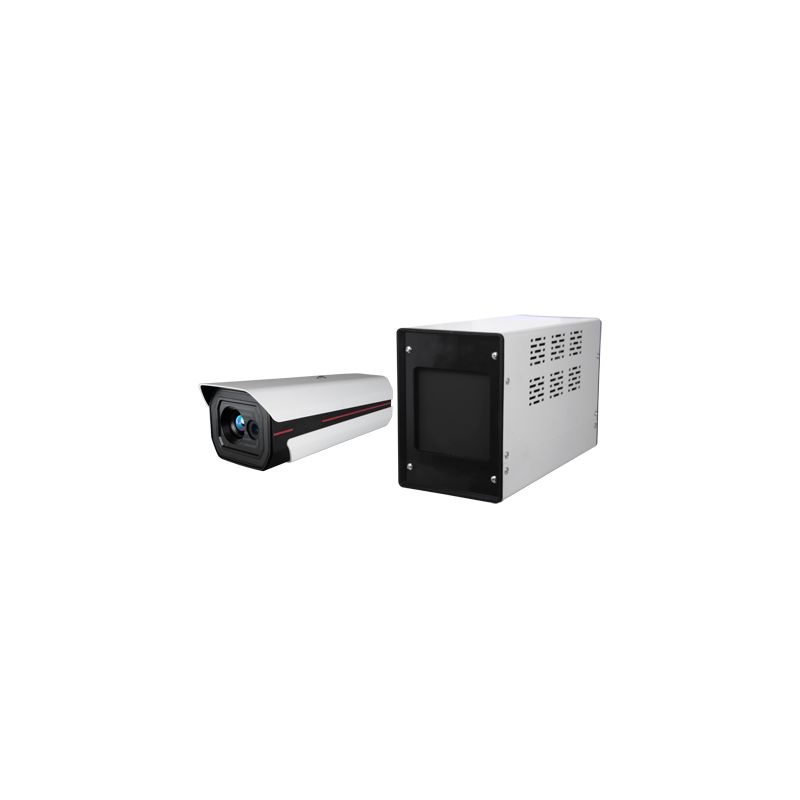

KIT-BODYTEMP-BLACKBODY - Precise Body Temperature Measurement System, Remote…
search
  • KIT-BODYTEMP-BLACKBODY - Precise Body Temperature Measurement System, Remote…

KIT-BODYTEMP-BLACKBODY - Precise Body Temperature Measurement System, Remote…

Precise Body Temperature Measurement System - Remote body temperature measurement - Thermographic Camera: 384x288 Vox | 10mm Lens - Blackbody for automatic calibration and ensuring accuracy - High Accuracy ±0.3ºC - Monitoring and management software
€3,500.00 €5,000.00 Save 30%
Tax included
Reference KIT-BODYTEMP-BLACKBODY
Brand Branded
Quantity
Available in 24/48h

Free shipping
KIT-BODYTEMP-BLACKBODY - Precise Body Temperature Measurement System, Remote…

KIT-BODYTEMP-BLACKBODY - Precise Body Temperature Measurement System, Remote…

€3,500.00 €5,000.00 Save 30%

You might also like

  • System for remote body temperature measurement
  • Dual IP Thermographic Camera
  • Thermal resolution 384x288
  • Optical Resolution 1920x1080
  • 10 mm Lens (Term)
  • Accuracy ± 0.3°C (With blackbody)
  • Temperature measuring range 20ºC ~ 50ºC
  • Blackbody (Included): Precision calibration system
  • Temperature adjustment range 30ºC ~ 50ºC
  • Temperature resolution 0.1ºC
  • Temperature stability ±(0.1-0.2)ºC/ 30 min
  • Monitoring and management software

Features

  • Precise Body Temperature Measurement System
  • Remote body temperature measurement
  • Thermographic Camera: 384x288 Vox | 10mm Lens
  • Blackbody for automatic calibration and ensuring accuracy
  • High Accuracy ±0.3ºC
  • Monitoring and management software

Specs

Dual IP Thermographic Camera
Thermal sensor 384x288 Vanadium Oxide
Optical sensor 1/2.7” Progressive Scan CMOS 2 Megapixel
Minimum illumination (for optical part) Colour: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance
Main Stream Flow 384x288(50fps) Thermal / 1920x1080 (25fps) Optical
Extra Stream Flow 384x288 (50fps) Thermal / 704x576 (25fps) Optical
Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Lens 10 mm (Term)
Viewing angle 37.5°×28.6° (Therm)
Thermal sensitivity < 40mK (0.05 º C)
Thermal measurement range 20 ~ 50ºC / High precision ± 0.3ºC (Only using blackbody)
Spectral range 8~14μm
Pixel size 17μm
Intelligent functions Body temperature measurement
Features in Measurement Up to 30 face detections in the same scene / Between 2 ~ 6 m. detection distance (ideal point 3~ 4 m)
Audio No
Alarm 1 Relay (NA/NC)
Internal memory No
Network interface Ethernet 10/100 BaseT
Remote access WEB, CMS and NVR interface
Interoperability ONVIF
Recommended Installation 2 m of height
Power 12VDC, 4W max.
Temp. operation 0º C ~ +30º C
Degree of protection Weatherproof IP66
Dimensions 293.9 mm (Fo) x 120.7 (An) x 119 (Al) mm
Weight 2 Kg

Blackbody
Temperature Range 30ºC ~ 50ºC Adjustable
Temperature Stability ±(0.1-0.2)ºC/ 30 min
Recommended Installation 2 m max. from the ceiling (always inside the camera FOV)
Power 220 VAC, 50 Hz (Max. 40W, nominal 25W)
Dimensions 240 (D) x 150 (H) x 160 (W)

Package content

  • Dual IP Thermographic Camera
  • Blackbody
  • Installation material
  • User instructions
  • Includes 1 tripod

Data sheet

Weight
2 Kg
Power
12VDC, 4W max.
220 VAC, 50 Hz (Max. 40W, nominal 25W)
Temp. operation
0º C ~ +30º C
Degree of protection
Weatherproof IP66
Dimensions
240 (D) x 150 (H) x 160 (W)
293.9 mm (Fo) x 120.7 (An) x 119 (Al) mm
Power supply
12VDC
12VDC, 4W max.
Alarm
1 Relay
1 Relay (NA/NC)
Audio
1 output line level 600 ohm
No
Lens
10 mm (Term)
15 mm (Term)
Viewing angle
37.5°×28.6° (Therm)
Temperature range
30ºC ~ 50ºC Adjustable
Internal memory
Micro SD card up to 256GB
No
Remote access
WEB, CMS and NVR interface
Main Stream rate
384x288(50fps) Thermal / 1920x1080 (25fps) Optical
Extra Stream rate
384x288 (50fps) Thermal / 704x576 (25fps) Optical
Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
Intelligent functions
Body temperature measurement
Thermal sensor
384x288 Vanadium Oxide
Optical sensor
1/2.7” Progressive Scan CMOS 2 Megapixel
Thermal sensitivity
≤ 40mK (0.05 º C)
Thermal measurement range
20 ~ 50ºC / High precision ± 0.3ºC (Only using blackbody)
Spectral range
8~14μm
Pitch detector
17μm
Recommended installation
2 m max. from the ceiling (always inside the camera FOV)
2 m of height
Minimum illumination (for optical part)
Colour: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance
Features in Measurement
Up to 30 face detections in the same scene / Between 2 ~ 6 m. de distancia en la detección (punto óptimo 3~ 4 m.)
Up to 30 face detections in the same scene / Between 2 ~ 6 m. detection distance (ideal point 3~ 4 m)
Up to 30 face detections in the same scene / Between 3 ~ 4 m of distance in the detection
Pixel size
17μm
Temperature stability
±(0.1-0.2)ºC/ 30 min
Main Stream Flow
384x288(50fps) Thermal / 1920x1080 (25fps) Optical
Extra Stream Flow
384x288 (50fps) Thermal / 704x576 (25fps) Optical
