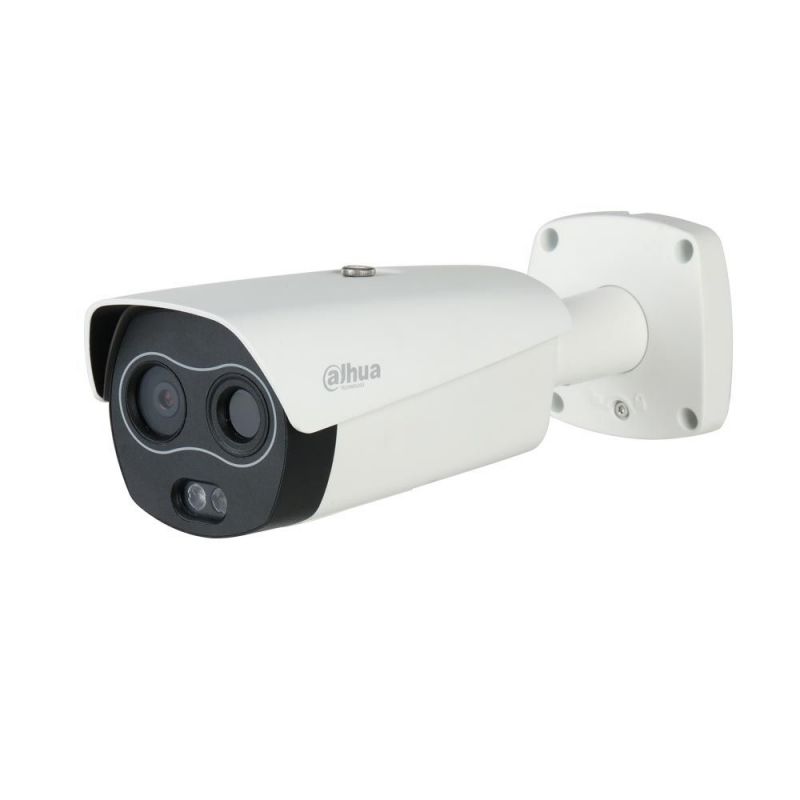

Dahua TPC-BF5421P-TB13F8-HTM. Thermal bullet camera + visible with IR illumination of 35 m, for outdoor. Visible camera with 1 / 2.8 Sony CMOS of 2 megapixels. Visible 8mm lens. Thermal camera with 400 x 300 resolution, 13mm thermal lens. Body temperature measurement. ROI, video sensor and privacy masks. BNC video output. 1 audio input / 1 output. 2 inputs / 2 alarm. outputs. RS485 port. MicroSD slot. IP67. 12V DC. PoE, ePoE.

Description

Hybrid camera with temperature measurement that simultaneously provides a normal image and a thermal image of the scene taken. An artificial intelligence algorithm recognizes human figures and allows the temperature of the face to be measured, excluding any other source of heat that may constitute a false alarm, at the optimal distance of 3 meters.

Features

• 400x300 Uncooled VOx Thermal Sensor Technology

• Focus-free, thermal lens (thermal camera)

• 1 / 2.8 "2-megapixel CMOS sensor (visible camera)

• Supports ROI, video sensor, color palettes

• Supports human body temperature measurement

• Measurement accuracy: ± 0.3 °C, combined with Blackbody DAHUA-2182 camera (JQ-

  D70Z)

• Active deterrence with white light and siren

• Focal length of 13 mm (thermal camera)

• 2 inputs / 2 alarm outputs

• MicroSD slot

• Protection degree IP67

• Supports PoE / ePoE

Specifications

• Uncooled VOx microbolometer sensor

• Effective Pixels: 400 x 300

• Pixel size: 17 µm

• Thermal sensitivity (NETD): <40mK

• Spectrum range: 8 ~ 14 µm

• Focal length (thermal): 13 mm

• Angle of view (thermal): 30 ° (H), 22.6 ° (V)

• Automatic and manual gain control

• 2D / 3D-NR noise reduction

• 18 color palettes

• Digital Detail Enhancement (DDE)

• Thermal Image Stabilization - Electronic Image Stabilization

• Mirror mode

• Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)

• Temperature measurement range: -30 °C ~ + 45 °C

• Temperature measurement accuracy: ± 0.3 °C with Blackbody DAHUA-2182 camera (JQ-D70Z)

• Temperature measurement accuracy: ± 1 °C without camera Blackbody DAHUA-2182 (JQ-D70Z)

• Image sensor (visible camera) 1 / 2.8 Sony 2-megapixel CMOS

• Effective Pixels: 1920 x 1080

• 35 meter infrared illumination

• Minimum illumination: 0.002 lux (color) / 0.0002 lux (B / W) / 0 lux IR On

• Focal length (visible optics): 8 mm

• Angle of view (visible optics): 40 ° (H), 22 ° (V)

• ROI

• Video sensor and privacy masks

• H.265, H.264, MJPEG video compression

• Visible camera resolution: 1080P (1920x1080), 720P (1280x720)

• Thermal Stream 1: 1280x1024, 1280x960 (default), 1024x768, 640x480, 256x192 (25 ips)

• Thermal Stream 2: 640x512, 256x192 (25 ips)

• Stream 1 visible: 1920x1080 (default), 1280x720, 704x576 (25 ips)

• Stream 2 visible: 704x576, 352x288 (default) (25 ips)

• G.711A, G.711Mu and PCM audio compression

• 1 audio input / 1 output

• BNC video output

• 2 inputs / 2 alarm outputs

• 1 RS485 port

• Ethernet: RJ-45 (10 / 100M)

• Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP

• Onvif, CGI and Dahua SDK support

• Up to 20 users

• Compatible with IE8 +, Chrome42, Firefox42, Safari 10 browsers

• MicroSD card slot up to 256GB (card not included)

• Power: 12V DC

• Consumption: 12W

• Supports PoE (802.3af), ePoE

• -10 °C ~ + 30 °C operating temperature

• Relative humidity: <95%

• Protection degree IP67

• Metal shell

• Dimensions: 103.5 (W) x 95.8 (H) x 280mm

• Weight: <1.4kg
