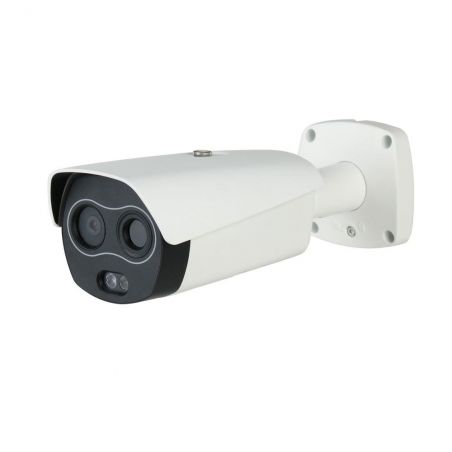

OEM Dahua TC-B1. Thermal bullet camera + visible with 35m IR illumination, for outdoors. Visible camera with 1 / 2.8 Sony 2-megapixel CMOS. Visible 8mm lens. Thermal camera with 400 x 300 resolution, 13mm thermal lens. Body temperature measurement. ROI, video sensor and privacy masks. BNC video output. 1 audio input / 1 output. 2 alarm inputs / 2 outputs. RS485 port. MicroSD slot. IP67. 12V DC. PoE, ePoE. Dh-tpc-bf5421p-tb13f8-htm oem blanco.

Description

Hybrid camera with temperature measurement that simultaneously provides a normal image and a thermal image of the scene taken. An artificial intelligence algorithm recognizes human figures and allows measuring the temperature of the face, excluding any other source of heat that may constitute a false alarm, at the optimal distance of 3 meters.

Characteristics

• 400x300 Uncooled VOx Thermal Sensor Technology
• Focus-free, thermal lens (thermal camera)
• 1 / 2.8" 2-megapixel CMOS sensor (visible camera)
• Supports ROI, video sensor, color palettes
• Supports human body temperature measurement
• Measurement accuracy: ± 0.3 ºC, combined with Blackbody TC-BB camera
• Active deterrence with white light and siren
• Focal length of 13 mm (thermal camera)
• 2 alarm inputs / 2 outputs
• MicroSD slot
• Protection degree IP67
• Supports PoE / ePoE

Specifications

• Uncooled VOx microbolometer sensor
• Effective Pixels: 400 x 300
• Pixel size: 17 µm
• Thermal sensitivity (NETD): <40mK
• Spectrum range: 8 ~ 14 µm
• Focal length (thermal): 13 mm
• Angle of view (thermal): 30 ° (H), 22.6 ° (V)
• Automatic and manual gain control
• 2D / 3D-NR noise reduction
• 18 color palettes
• Digital Detail Enhancement (DDE)
• Thermal Image Stabilization - Electronic Image Stabilization
• Mirror mode
• Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)
• Temperature measurement range: -30 ºC ~ + 45 ºC
• Temperature measurement accuracy: ± 0.3 ºC with Blackbody TC-BB camera
• Temperature measurement accuracy: ± 1 ºC without camera Blackbody TC-BB
• Image sensor (visible camera) 1 / 2.8 Sony 2 megapixel CMOS
• Effective Pixels: 1920 x 1080
• 35 meter infrared illumination
• Minimum illumination: 0.002 lux (color) / 0.0002 lux (B / W) / 0 lux IR On
• Focal length (visible optics): 8 mm
• Viewing angle (visible optics): 40 ° (H), 22 ° (V)
• ROI
• Video sensor and privacy masks
• H.265, H.264, MJPEG video compression
• Visible camera resolution: 1080P (1920x1080), 720P (1280x720)
• Thermal Stream 1: 1280x1024, 1280x960 (default), 1024x768, 640x480, 256x192 (25 ips)
• Thermal Stream 2: 640x512, 256x192 (25 ips)
• Stream 1 visible: 1920x1080 (default), 1280x720, 704x576 (25 ips)
• Stream 2 visible: 704x576, 352x288 (default) (25 ips)
• G.711A, G.711Mu and PCM audio compression
• 1 audio input / 1 output
• BNC video output
• 2 alarm inputs / 2 outputs
• 1 RS485 port
• Ethernet: RJ-45 (10 / 100M)
• Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP
• Onvif, CGI and Dahua SDK support
• Up to 20 users
• Compatible with IE8 +, Chrome42, Firefox42, Safari 10 browsers
• MicroSD card slot up to 256GB (card not included)
• Power: 12V DC
• Consumption: 12W
• Supports PoE (802.3af), ePoE
• -10 ºC ~ + 30 ºC operating temperature
• Relative humidity: <95%
• Protection degree IP67
• Metal shell
• Dimensions: 103.5 (W) x 95.8 (H) x 280mm
• Weight: <1.4kg
