SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 150SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 15701 AND id_lang = 1 Dahua TPC-BF2221-T Thermal bullet camera + visible with IR…
  • -35%
Dahua TPC-BF2221-T Cámara bullet térmica + visible con…
search
  • Dahua TPC-BF2221-T Cámara bullet térmica + visible con…

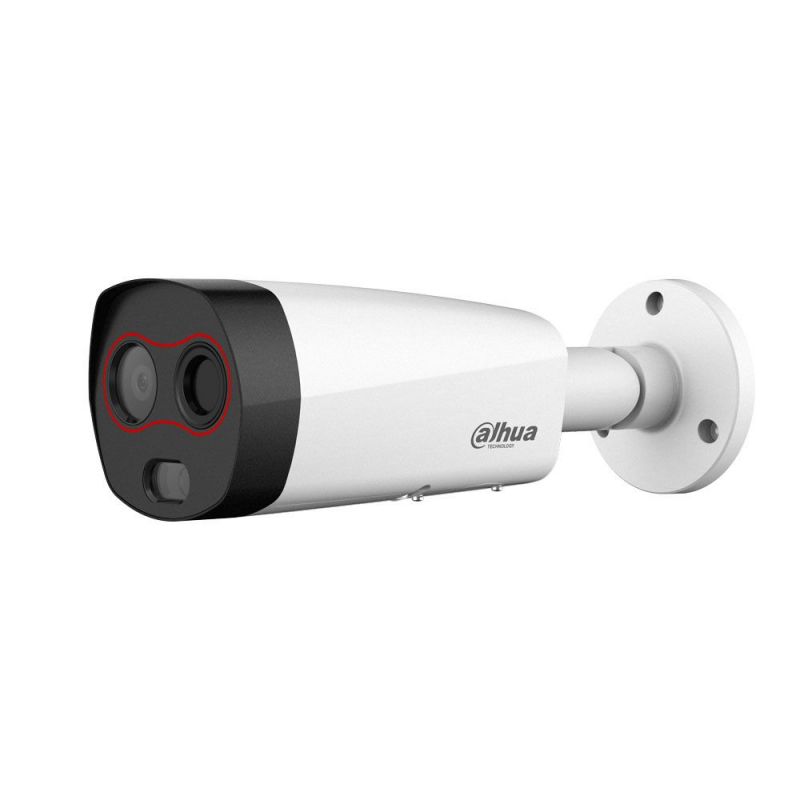

Dahua TPC-BF2221-T Thermal bullet camera + visible with IR…

Thermal bullet camera + visible with IR illumination of 50 m, for outdoor. Visible camera with 1 / 2.8 Sony 2-megapixel CMOS. Visible 6mm lens. Thermal camera with 256 x 192 resolution, 7.5mm thermal lens. Body temperature measurement. AWB, BLC, HLC, WDR, Ultra DNR, ROI Zones. 1 audio input / 1…
€1,266.95 €1,949.16 Save 35%
Tax included
Reference TPC-BF2221-T
Brand Dahua
Quantity
Available in 24/48h

Free shipping
Dahua TPC-BF2221-T Cámara bullet térmica + visible con…

Dahua TPC-BF2221-T Thermal bullet camera + visible with IR…

€1,266.95 €1,949.16 Save 35%

Dahua TPC-BF2221-T. Thermal bullet camera + visible with IR illumination of 50 m, for outdoor. Visible camera with 1 / 2.8 Sony 2-megapixel CMOS. Visible 6mm lens. Thermal camera with 256 x 192 resolution, 7.5mm thermal lens. Body temperature measurement. AWB, BLC, HLC, WDR, Ultra DNR, ROI Zones. 1 audio input / 1 output. 2 inputs / 1 alarm output. RS485 port. MicroSD slot. IP67. 12V DC. PoE, ePoE. Tpc-bf2221-t.



Description

Dual lens bullet camera that provides an all-in-one solution. Along with thermal and visible technology, the camera is the perfect solution for small, dark area monitoring applications. The series combines a thermal camera to monitor in total darkness and a visible camera with Smart IR to confirm details.

Characteristics

  • 256x192 Uncooled VOx Thermal Sensor Technology
  • Focus-free, thermal lens (thermal camera)
  • 1 / 2.8 "2-megapixel CMOS sensor (visible camera)
  • Supports ROI, video sensor, color palettes
  • Supports human body temperature measurement
  • Body temperature measurement range of 30 ºC ~ 45 ºC
  • Measurement accuracy: ± 0.3 ºC, combined with Blackbody DAHUA-2199 camera (TPC-HBB-CHW)
  • Active deterrence with white light and siren
  • 7.5mm focal length (thermal camera)
  • 6mm focal length (visible camera)
  • 2 alarm inputs / 1 outputs
  • MicroSD slot
  • Protection degree IP67
  • Supports PoE and ePoE

Specifications

  • Uncooled VOx microbolometer sensor
  • Effective Pixels: 256 x 192
  • Pixel size: 12 µm
  • Thermal sensitivity (NETD): <50mK
  • Spectrum range: 8 ~ 14 µm
  • Focal length (thermal): 7.5 mm
  • Angle of view (thermal): 32.4 ° (H), 24.6 ° (V)
  • Automatic and manual gain control
  • 2D and 3D noise reduction
  • 18 color palettes
  • Digital Detail Enhancement (DDE)
  • Temperature measurement range: 30 ºC ~ 45 ºC
  • Temperature measurement accuracy: ± 0.3% with Blackbody DAHUA-2199 camera (TPC-HBB-CHW)
  • Image sensor (visible camera) 1 / 2.8 Sony 2 megapixel CMOS
  • Effective Pixels: 1920 x 1080
  • Infrared illumination of up to 50 meters
  • Minimum illumination: 0.01 lux (color) / 0.001 lux (B / W) / 0 lux IR On
  • Focal length (visible optics): 6mm
  • Angle of view (visible optics): 52.8 ° (H), 30, ° (V)
  • Removable mechanical filter
  • White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Lamppost
  • Backlight compensation (BLC, HLC)
  • WDR
  • 2D-NR and 3D-NR noise reduction
  • ROI
  • H.265, H.264M, H.264H, H.264B video compression
  • Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
  • Thermal Stream 1: 1280x960, 1024x768, 640x480, 256x192 (25 ips)
  • Thermal Stream 2: 640x480, 256x192 (25 ips)
  • Stream 1 visible: 1920x1080 (default), 1280x720 (25 ips), 704x576 (25 ips)
  • Stream 2 visible: 704x576 (25 ips), 352x288 (25 ips)
  • G.711A, G.711Mu, AAC, PCM audio compression
  • Two-way audio
  • 2 inputs / 1 alarm output
  • 1 RS485 port
  • Ethernet: RJ-45 (10/100 Base-T)
  • Network protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP, 802.1x
  • Up to 20 users
  • Compatible with IE8, Chrome 42, Firefox 42 browsers
  • MicroSD card slot up to 256GB (card not included)
  • Power: 12V DC
  • Maximum consumption: 18W
  • Supports PoE (802.3af), ePoE
  • -10 ºC ~ + 50 ºC operating temperature
  • Relative humidity: <93%
  • Protection degree IP67
  • Metal shell
  • Dimensions: 92 (W) x 87 (H) x 287.3mm
  • Weight: <1.4kg
