Promax IR-198 Thermographic system for TCE. 20 to 50ºC. Thermal sensor 384 x 288. Includes Blackbody

Fixed automatic access control systems for body temperature of people to premises; Includes multi-subject tracking, image recording, and configurable alarms. Thermal sensor 384x288 pixels. Field of view 25º x 19º.

€17,424.00

Tax included

Reference promax-ir-198

Brand Promax

Promax IR-198 Thermographic system for TCE. 20 to 50ºC. Thermal sensor 384 x 288. Includes Blackbody

€17,424.00

Fixed automatic access control systems for body temperature of people to premises; Includes multi-subject tracking, image recording, and configurable alarms.

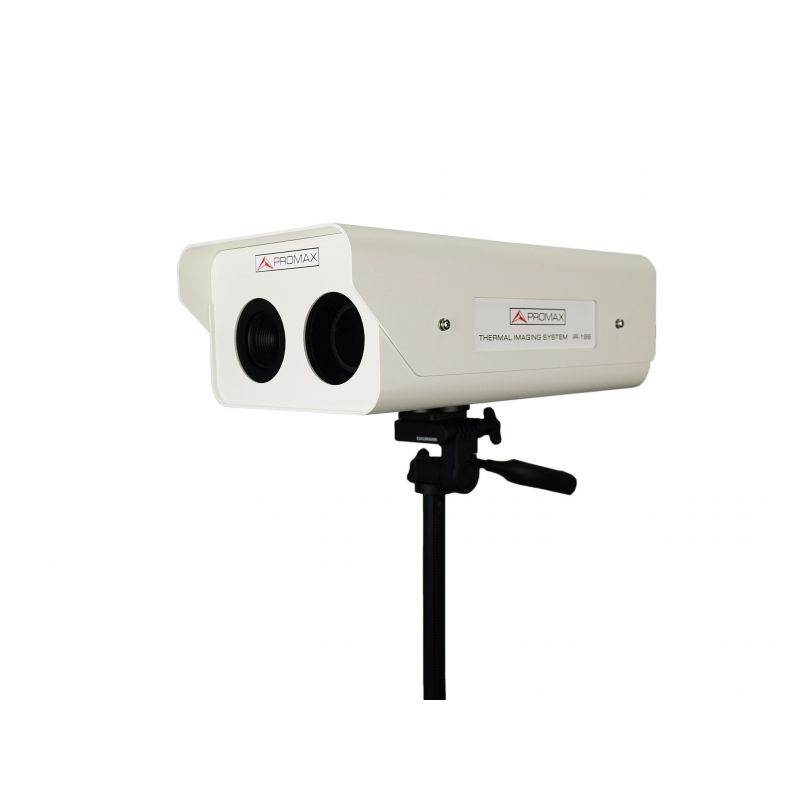

PROMAX IR-198 thermal imaging cameras are fixed systems for measuring high body temperature (TCE) and are designed to control access by people to public or private venues. The system recognizes faces, takes their temperature and activates an alarm when it exceeds the established limits.

A blackbody device (thermal calibrator) is included which is used to keep the calibrated system at all times at a constant and predefined temperature value for reference.

Specifications

THERMAL SENSOR
IR-198	384x288 pixels
FIELD OF VISION (FOV)
IR-198	25º x 19º
MEASURING DISTANCE
IR-198	From 3 to 10 meters
INTEGRATED CCD CAMERA
IR-198	1920 x 1080 pixels
IMAGE MANAGEMENT
Do you monitor multiple people at the same time?	Yes
Blackbody Self-Calibration	Yes
Continuous video recording	Yes
Focal length	18 mm
Thermal sensitivity	≤ 0.06 ºC
Accuracy	≤ ±0.3 ºC
Temperature range	From 20 to 50 ºC
OPERATING TEMPERATURE	0 to 40 ºC
ACCESSORIES INCLUDED	Thermal camera, Blackbody, suitcase, battery, memory card, video cable, AC adapter

Promax Thermography Solutions Brochure

Video

PROMAX THERMOGRAPHIC CAMERAS

Promax IR-198 / IR-199 Datasheet

Download (3.39M)
