X-Security IPCOUNT-3D-EXT-0280 - X-Security IP People Counter, 3 Megapixel Starlight,…
search
  • X-Security IPCOUNT-3D-EXT-0280 - X-Security IP People Counter, 3 Megapixel Starlight,…

X-Security IPCOUNT-3D-EXT-0280 - X-Security IP People Counter, 3 Megapixel Starlight,…

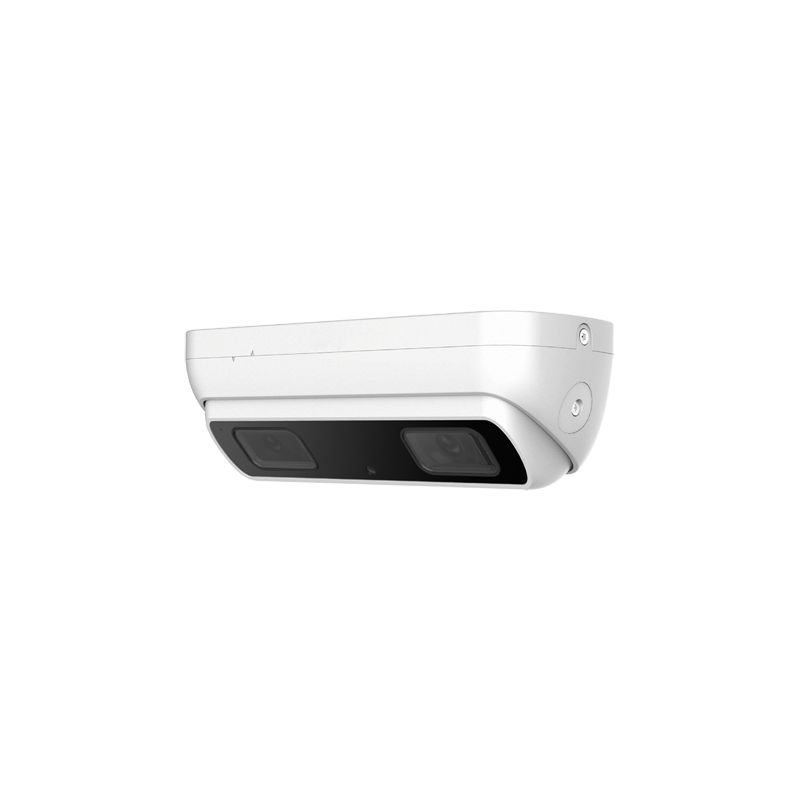

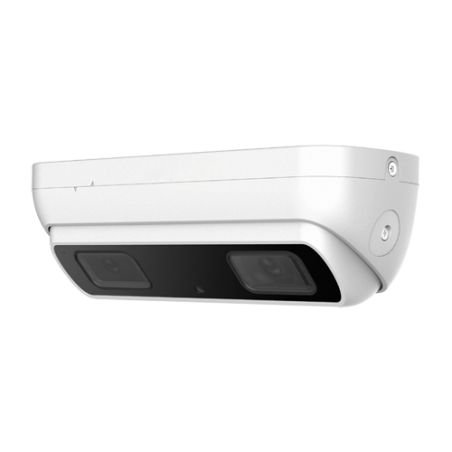

X-Security IP People Counter - 3 Megapixel Starlight - People counting, IVS perimeter protection, Face detection - 2.8 mm Lens - Alarms / Audio / Siren / ePoE - Suitable for outdoor installation
€530.00
Tax included
Reference IPCOUNT-3D-EXT-0280
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security IPCOUNT-3D-EXT-0280 - X-Security IP People Counter, 3 Megapixel Starlight,…

X-Security IPCOUNT-3D-EXT-0280 - X-Security IP People Counter, 3 Megapixel Starlight,…

€530.00
  • X-Security
  • IP people counting
  • Double sensor
  • 3 Megapixel
  • 2.8 mm Lens
  • 1/2.8" Progressive Scan CMOS
  • High sensitivity Starlight
  • IR LED Range 20 m
  • Ceiling installation
  • Statistics of entries, exits and transits
  • Daily, monthly and annual reports
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • RS485
  • Alarms
  • Audio
  • DWDR
  • Intelligent IVS functions
  • External storage MicroSD
  • Deterrent siren
  • PoE IEEE802.3af
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • IP67, IK10

Features

  • X-Security IP People Counter
  • 3 Megapixel Starlight
  • People counting, IVS perimeter protection, Face detection
  • 2.8 mm Lens
  • Alarms / Audio / Siren / ePoE
  • Suitable for outdoor installation

Specs

Brand X-Security
Image sensor 1/2.8” Progressive Scan CMOS
Maximum resolution 3 Mpx (2048x1536)
Main Stream rate 640 x 480 (1 ~ 25 FPS)
Compression H265+ / H.265 / H.264+ / H.264 / MJPEG
Day / Night Auto / Programmable / Manual
Illumination 0.005 Lux @F1.6
Infrared Illumination 20 m
Lens 2.8 mm
Functions 3D-DNR, DWDR, BLC, HLC, White Balance, ROI, Privacy Mask
Communication interface 1 x Ethernet 10/100M BaseT | 1 x RS485
Alarms 2 inputs / 2 outputs
Audio 2 IN / 2 OUT / Built-in micro, Built-in Speaker
People counting Statistics for entries, exits and transits | Daily, weekly, monthly and annual reports
Intelligent functions Intrusion, motion detection, abandoned object, line crossing, face detection, people counting,
Bitrate 3 kbps-17664 kbps
Storage Slot for Micro SD card up to 256 GB (not included)
Remote access Web Browser, Smartphone App and SmartPss PC Software
Interoperability ONVIF
Recommended installation Installation height: 3.0 m | Detection area: 2.2 m

Installation height: 3.5 m | Detection area: 3.1 m

Installation height: 4.0 m | Detection area: 4.0 m

Installation height: 4.5 m | Detection area: 4.8 m

Installation height: 4.7 m | Detection area: 5.2
Power DC 12 V / PoE (IEEE802.3af) / 9.1W (ICR+IR+WDR+IVS)
Temp. operation -40º C ~ +60º C
Degree of protection IP67, IK10
Material Body: Metal | Housing: Plastic
Base dimensions 204 x 78 mm / 4 screws
Weight 810 g

Package content

  • IP people counting
  • Bracket
  • CD with software and instructions
  • Sticker for installation

Data sheet

Weight
810 g
Power
DC 12 V / PoE (IEEE802.3af) / 9.1W (ICR+IR+WDR+IVS)
Temp. operation
-40º C ~ +60º C
Degree of protection
IP67, IK10
Transfer Rate
3 kbps-17664 kbps
Material
Body: Metal | Housing: Plastic
Functions
3D-DNR, DWDR, BLC, HLC, White Balance, ROI, Privacy Mask
Audio
2 IN / 2 OUT / Built-in micro, Built-in Speaker
Image sensor
1/2.8” Progressive Scan CMOS
Lens
2.8 mm
Maximum resolution
3 Mpx (2048x1536)
Day / Night
Auto / Programmable / Manual
Base dimensions
204 x 78 mm / 4 screws
Alarms
2 inputs / 2 outputs
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
640 x 480 (1 ~ 25 FPS)
Compression
H265+ / H.265 / H.264+ / H.264 / MJPEG
Interoperability
ONVIF
People counting
Statistics for entries, exits and transits | Daily, weekly, monthly and annual reports
Intelligent functions
Intrusion, motion detection, abandoned object, line crossing, face detection, people counting,
Recommended installation
Installation height: 3.0 m | Detection area: 2.2 m Installation height: 3.5 m | Detection area: 3.1 m Installation height: 4.0 m | Detection area: 4.0 m Installation height: 4.5 m | Detection area: 4.8 m Installation height: 4.7 m |
Installation height: 3.0 m | Detection area: 2.2 m Installation height: 3.5 m | Detection area: 3.1 m Installation height: 4.0 m | Detection area: 4.0 m Installation height: 4.5 m | Detection area: 4.8 m Installation height: 4.7 m | Dete
Infrared Illumination
20 m
Communication interface
1 x Ethernet 10/100M BaseT | 1 x RS485
Storage
Slot for Micro SD card up to 256 GB (not included)
Illumination
0.005 Lux @F1.6
