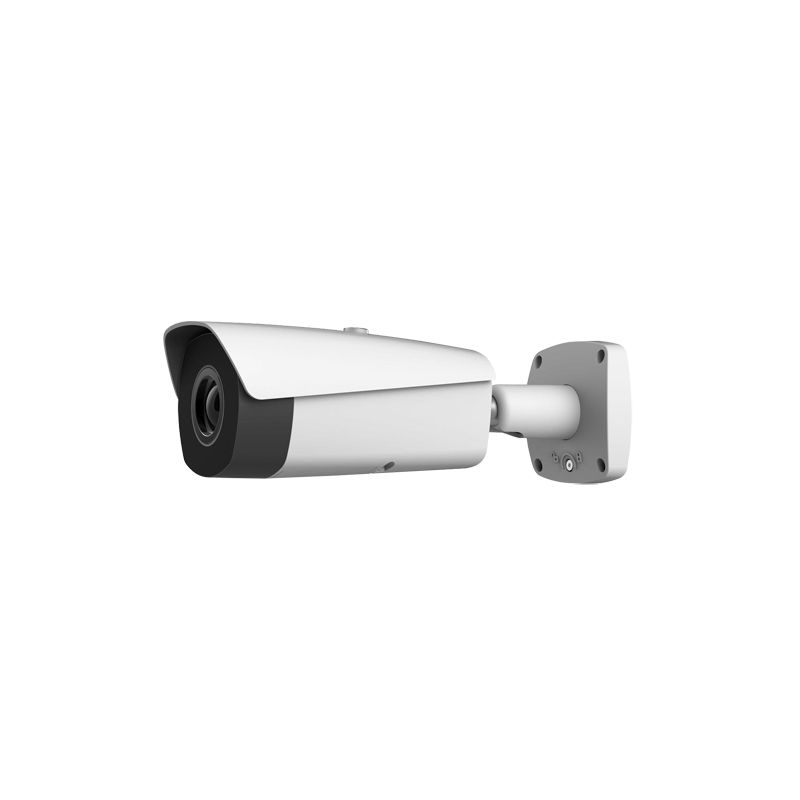

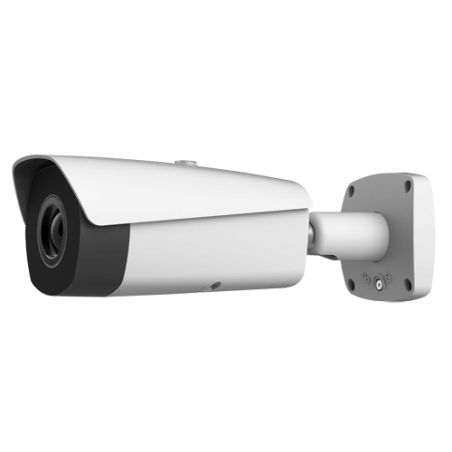

Dahua TPC-BF5600-TA13 - X-Security IP thermal camera, 640x512 VOx, Thermal…

X-Security IP thermal camera - 640x512 VOx - Thermal sensitivity < 40mK - Allows temperature measurement - Fire detection and alarm - Audio | Alarms | SD card
€7,150.00 €11,000.00 Save 35%
Tax included
Reference TPC-BF5600-TA13
Brand Dahua
Quantity
Available in 24/48h

Free shipping
Dahua TPC-BF5600-TA13 -

Dahua TPC-BF5600-TA13 - X-Security IP thermal camera, 640x512 VOx, Thermal…

€7,150.00 €11,000.00 Save 35%

You might also like

  • Branded
  • Thermal IP Camera
  • Thermal sensor 640x512 VOx
  • 13 mm Lens
  • Allows temperature measurement
  • 14 Colours
  • Thermal sensitivity < 40mK
  • H.264 / MJPEG
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Weatherproof IP67
  • Audio
  • Alarms
  • Fire detection and alarm
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible

Features

  • X-Security IP thermal camera
  • 640x512 VOx
  • Thermal sensitivity < 40mK
  • Allows temperature measurement
  • Fire detection and alarm
  • Audio | Alarms | SD card

Specs

Brand X-Security
Thermal sensor 640x512 VOx
Main Stream rate 1280x1024/720p (1~25fps)
Extra Stream rate 640x512/320x256 (1~25fps)
Compression H.264/MJPEG
Lens 13 mm
Thermal sensitivity < 40mK
Spectral range 7~14um
Measurement range Low gain: -40ºC~550ºC
High gain: -40ºC~160ºC
Accuracy of measurement Max (±2ºC, ±2%)
Measurement mode Point / Line / Area
Measurement rules Up to 12 simultaneous rules
Range performance Human: 450 (Detection) / 110 (Recognition) / 60 (Identification) m
Vehicle: 1300 (Detection) / 350 (Recognition) / 180 (Identification) m
Image improvements Brightness, definition, ROI, AGC, FFC, 3DNR, Mirris, Mask, MD
Digital Zoom 24X
Intelligent functions Fire and alarm detection, line crossing, intrusion, abandoned/lost object
Audio 1input
Alarm 2/1 In/Out
Network interface Ethernet 10/100 BaseT
Remote access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Interoperability ONVIF
Power 24VAC, 12VDC / 7W, PoE IEEE802.3af
Temp. operation -40º C ~ +60º C
Degree of protection Weatherproof IP67
Dimensions 291 (D) x 103 (W) x 97 (H) mm
Weight 1370 g

Package content

  • X-Security IP thermal camera
  • Installation material
  • User instructions

Data sheet

Weight
1370 g
1370 g
Power
24VAC, 12VDC / 7W, PoE IEEE802.3af
Temp. operation
-40º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
291 (D) x 103 (W) x 97 (H) mm
Power supply
24VAC, 12VDC / 7W, PoE IEEE802.3af
Alarm
2/1 In/Out
Audio
1input
Lens
13 mm
Image improvements
Brightness, definition, ROI, AGC, FFC, 3DNR, Mirris, Mask, MD
Remote access
WEB, CMS (DSS/PSS), Smartphone and NVR interface
Main Stream rate
1280x1024/720p (1~25fps)
Extra Stream rate
640x512/320x256 (1~25fps)
Compression
H.264/MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
Digital zoom
24X
Intelligent functions
Fire and alarm detection, line crossing, intrusion, abandoned/lost object
Thermal sensor
640x512 VOx
Range performance
Human: 450 (Detection) / 110 (Recognition) / 60 (Identification) m Vehicle: 1300 (Detection) / 350 (Recognition) / 180 (Identification) m
Human: 450 (Detection) / 110 (Recognition) / 60 (Identification) m Vehicle: 1300 (Detection) / 350 (Recognition) / 180 (Identification) m
Thermal sensitivity
≤ 40mK
Spectral range
7~14um
Measurement range
Low gain: -40ºC~550ºC High gain: -40ºC~160ºC
Low gain: -40ºC~550ºC High gain: -40ºC~160ºC
Accuracy of measurement
Max (±2ºC, ±2%)
Measurement mode
Point / Line / Area
Measurement rules
Up to 12 simultaneous rules
