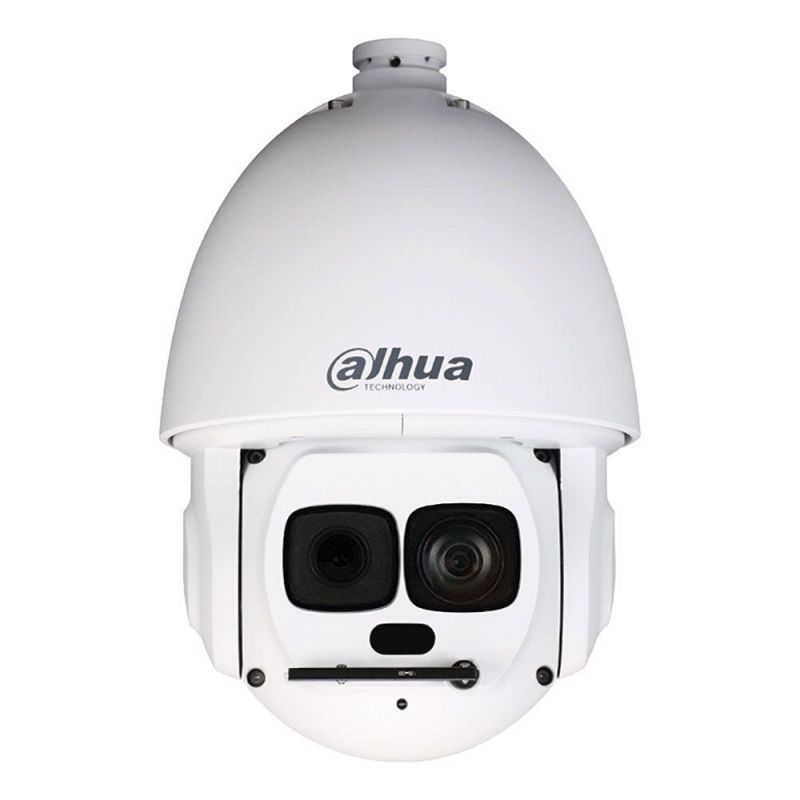

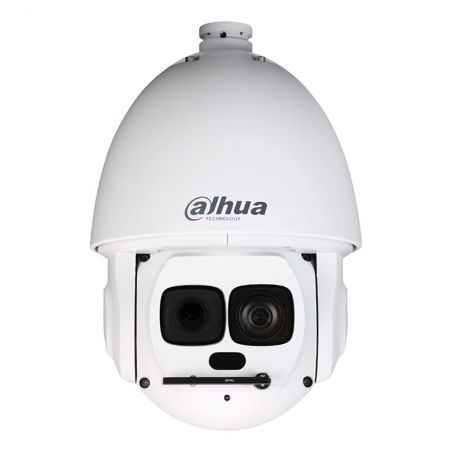

Dahua SD6AL233XA-HNR-IR. StarLight IP Dahua PTZ Dome of 200°/sec AI series. with IR illumination of 300 m, for outdoors. Format H.265 + / H.265 / H.264 + / H.264 / MJPEG. 1/1.8" CMOS of 2 MP. Triple stream Resolution of up to 1080P @ 50fps. 33X optical zoom of 5.8 ~ 191.4 mm. 16X digital zoom ICR filter. 0.001 / 0.0001 lux. OSD, AWB, AGC, BLC, HLC, WDR true (120dB), 2D / 3D-NR, digital defog, EIS, motion detection, privacy masks. Autotracking Perimeter protection, video metadata. IVS. 300 presets DH-SD and Pelco-D / P. Audio: 1 in / 1 out. Alarm: 7 in / 2 out. MicroSD slot. Onvif, CGI. IP66. Lightning-proof 8KV. 12V DC. Hi-PoE. Includes bracket and power supply Sd6al233xa-hnr-ir.

Features

• 1/1.8" CMOS sensor with 2 MP
• Powerful 33X optical zoom
• StarLight technology
• 1080P (1920x1080) at 50 fps
• Infrared range of up to 300 meters
• Autotracking and perimeter protection based on deep learning
• Supports Hi-PoE

• IP67



Specs

• 1/1.8" CMOS sensor with 2 MP
• H.265 + / H.265 / H.264 + / H.264 / MJPEG
• Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 1080P, 1.3MP, 720P (1 ~ 50 fps)
• Stream 2: D1, CIF (1 ~ 25 fps)
• Stream 3: 1080P, 1.3MP, 720P, D1, CIF (1 ~ 25 fps)
• Day / night mode with removable mechanical filter
• Infrared lighting: up to 300 meters
• Minimum illumination: 0.001 lux F1.5 (color) / 0.0001 lux F1.5 (B / W), 0 lux IR On
• 33X optical zoom: 5.8 ~ 191.4 mm
• Viewing angle: 60.1 ° ~ 3.2 ° (H), 35.3 ° ~ 1.8 ° (V), 67.9 ° ~ 3.7 ° (D)
• Automatic, semiautomatic and manual focus control
• Automatic and manual iris control
• 16X digital zoom
• White Balance: Automatic, Interior, Exterior, Tracking, Manual, Sodium Lamp, Natural Light, Lamp
• Automatic and manual gain control
• Compensation compensation (BLC, HLC)
• Real WDR (120dB)
• Reduction of 2D and 3D noise
• Digital defog
• Digital Image Stabilizer (EIS)
• Supports ROI
• Supports motion detection
• Supports privacy masks of up to 24 zones
• Artificial Intelligence:
• Perimeter protection: Line crossing detection, intrusion detection (supports alarm with person / vehicle classification), filtering of false alarms caused by animals, cracking of leaves, bright lights, etc.
• Supports autotracking
• Video metadata: It supports capturing images of people, motor vehicles and non-motorized vehicles
• IVS Intelligence:
• Event shooting: Videosensor, video masking, scene changes, network disconnection, IP conflict, unauthorized access, storage anomalies
• General intelligence: abandoned / lost objects
• Horizontal positioner: 0 ° ~ 360 ° continuous
• Vertical positioner: -20 ° ~ 90 °, autoflip 180 °
• Manual speed: 0.1° ~ 200°/sec. (H), 0.1° ~ 120°/sec. (V)
• Preset speed: 240°/sec. (H), 200°/sec. (V)
• 300 presets DH-SD, Pelco-D / P (automatic recognition)
• 5 patterns, 8 rounds (up to 32 presets per round), Auto Pan, 5 Auto Scan
• Audio: 1 in / 1 out
• Alarm: 7 in / 2 out
• MicroSD card slot up to 256GB (card not included)
• Network Interface: RJ45 (10/100 Base-T)
• Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, PPPoE, ARP, RTCP
• Compatible with ONVIF S / G, CGI
• Unicast / Multicast streaming method
• Up to 20 users
• Remote display with browsers IE7, Chrome42, Firefox52, Safari
• Management software Smart Player, Smart PSS, DSS, Easy4ip
• Compatible with iOS and Android smartphones
• Power supply: 24V AC / 3A (20W, 33W with laser illumination enabled)
• Hi-PoE supports
• Operating temperature of -40 ° C ~ + 70 ° C
• Humidity: <95%
• IP66
• Lightning-proof 8KV
• Metal housing
• Dimensions: Ø240 x 382 (Al) mm
• Weight: 6.75 kg
• Includes wall mount and power supply
