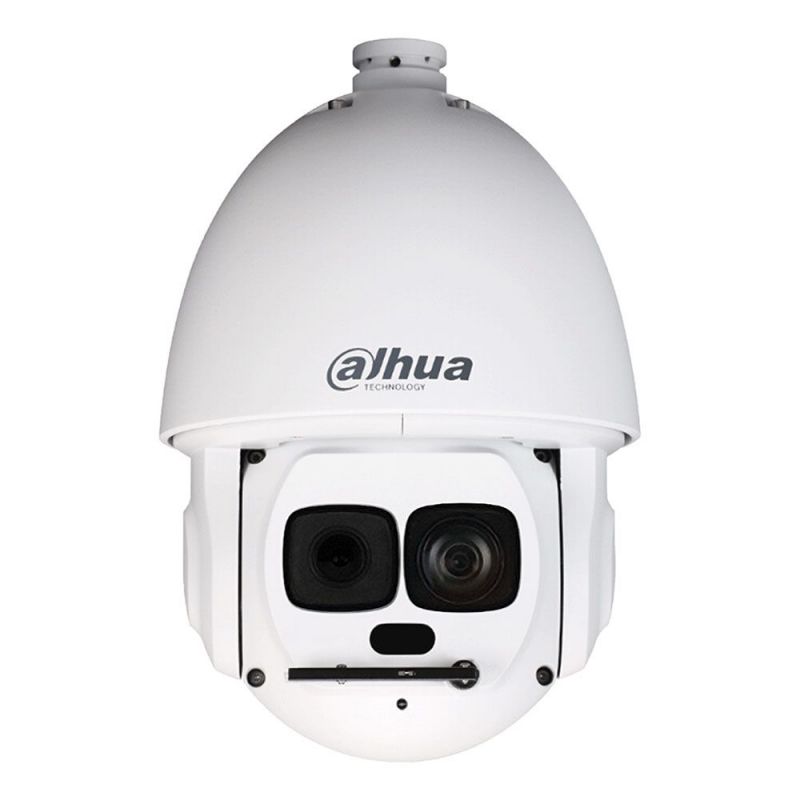

Dahua SD6AL445XA-HNR. Dahua Starlight PTZ IP dome AI series of 200°/sec. with laser ilumination of 550 m, for outdoors. H.265+/ H.265/ H.264+/ H.264/ MJPEG. 1/2,8"" CMOS, 4 MP. Triple stream. 4MP@25fps. 45X optical zoom of 3,91~177,7 mm. 16X digital zoom. ICR filter. 0,005 / 0,0005 lux. OSD, AWB, AGC, BLC, HLC, WDR 120dB, 2D/3D-DNR, digital defog, EIS, motion detection, privacy mask. Autotracking. Perimeter protection, video metadata, face detection. IVS. 300 presets DH-SD and Pelco-D/P. Audio: 1 in / 1 out. Alarm: 7 in / 2 out. MicroSD slot. Onvif, CGI. IP67. Lightning-proof 8KV. 36V DC. Hi-PoE. Bracket and power supply included. Sd6al445xa-hnr.

Features

• 1/2,8” CMOS sensor, 4MP
• 45X optical zoom
• StarLight technology
• 4MP (2560x1440) at 25 fps, 1080P (1920x1080) at 50 fps
• Laser range up to 550 meters
• Autotracking and perimeter protection based on deep learning
• Face detection
• Hi-PoE supported
• IP67

Specs

• 1/2,8” CMOS sensor, 4MP
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Digital resolution: 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 4MP (1~25 fps), 1080P, 1,3MP, 720P (1~50 fps)
• Stream 2: D1, CIF (1~25 fps)
• Stream 3: 1080P, 720P (1~25 fps)
• Day/night mode with removable mechanical filter
• Laser illumination: up to 550 meters
• Minimum illumination: 0,005 lux F1.6 (color) / 0,0005 lux F1.6 (B/W), 0 lux IR On
• 45X optical zoom: 3,91 ~ 177,7 mm
• Viewing angle: 70,3°~1,8°(H), 37°~1°(V), 69,3°~2°(D)
• Focus control: auto, semiauto and manual
• Automatic iris control
• 16X digital zoom
• White balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural light, Light
• Automatic and manual gain control
• Backlight compensation (BLC, HLC)
• WDR 120 dB
• 2D and 3D noise reduction
• Digital defog
• EIS
• ROI supported
• Motion detection supported

• Privacy mask up to 24 zones supported



• AI:
  • Protección perimetral: Tripwire, intrusion detection (alarm supported with people/vehicle classification), abandoned/lost objects
  • Autotracking supported
  • Face detection: optimization; snapshots; high quality snapshots; attribute extraction: 6 attributes and 8 expressions

  • Video metadata: Supports people detection, motor/non motor vehicles, snapshot support, high quality snapshots of motor vehicles



• Horizontal positioner: 0° ~ 360° continuous
• Vertical positioner: -20° ~ 90°, autoflip 180°
• Manual speed: 0,1° ~ 200°/sec. (H), 0,1° ~ 120°/sec. (V)
• Preset speed: 240°/sec. (H), 200°/sec. (V)
• 300 presets DH-SD, Pelco-D/P (automatic recognition)
• 5 patterns, 8 rounds (up to 32 presets per round), 5 scans
• Audio: 1 in / 1 out
• Alarm: 7 in / 2 out
• RS485 port
• MicroSD card slot up to 256GB (card is not included)
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1/v2c/v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP
• Compatible with ONVIF S/G, CGI
• Unicast / Multicast streaming method
• Up to 19 users
• Remote display on web browsers IE7+, Chrome42, Firefox52, Safari
• Software management Smart PSS, DSS, DMSS, Easy4ip, IVSS
• Compatible with IOS and Android
• Power supply: 36V DC /2,23A
• Consumption: 20W (36W with laser ON)
• Hi-PoE supported
• Working temperature: -40°C ~ +70°C
• Humedad: <95%
• IP67
• Lightning-proof 8KV
• Metal case
• Dimensions: Ø240 x 382 (H) mm
• Weight: 6,8 kg
• Wall mount and power supply included
