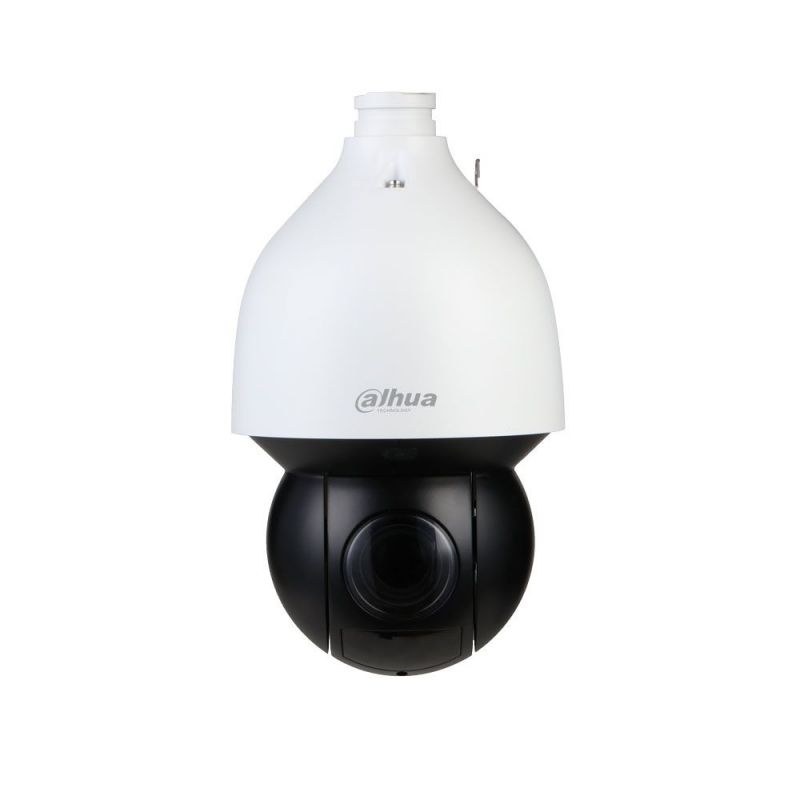

Dahua SD5A225XA-HNR. StarLight IP Dahua 300 ° / sec AI series motorized dome. with IR illumination of 150 m, vandal resistant for outdoors. H.265 + / H.265 / H.264 + / H.264 / MJPEG format. 1 / 2.8 ""STARVIS CMOS, 2 megapixels. Triple stream. Resolution up to 1080P @ 50ips. 25X optical zoom of 5.4 ~ 135mm. 16X digital zoom. ICR filter. 0.005 / 0.0005 lux. OSD, AWB, AGC, BLC, HLC, WDR 120dB, 2D / 3D-DNR, digital defog, EIS, video sensor, privacy masks. Autotracking. Perimeter protection, face detection. Intelligent detection (IVS). 300 DH-SD and Pelco-D / P presets. 1 audio input / 1 output. 2 alarm inputs / 1 outputs. MicroSD slot. Onvif, CGI. IP67, IK10. Lightning-proof 6KV. 24V AC. PoE +. Includes stand and feeder. Sd5a225xa-hnr.

specs

    1 / 2,8 ”STARVIS CMOS sensor, 2 megapixels

    Compression formats H.265 + / H.265 / H.264 + / H.264 / MJPEG

    Digital Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)

    Stream 1: 1080P, 1.3MP, 720P (1 ~ 50 ips)

    Stream 2: D1, CIF (1 ~ 25 ips)

    Stream 3: 1080P / 1.3MP / 720P / D1 / CIF (1 ~ 25 ips)

    Day / night mode with removable mechanical filter

    Infrared illumination: 4 LEDs, up to 150 meters

    0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W), 0 lux IR On

    25X Optical Zoom: 5.4 ~ 135mm

    Viewing angle: 58.7 ° ~ 3.1 ° (H), 33.2 ° ~ 1.7 ° (V), 67.3 ° ~ 3.9 ° (D)

    Automatic, semi-automatic and manual focus control

    Automatic and manual iris control

    16X digital zoom

    White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Light

    Automatic and manual gain control

    Backlight compensation (BLC, HLC)

    WDR 120 dB

    2D and 3D noise reduction

    Digital defog

    Digital Image Stabilizer (EIS)

    Supports ROI

    Supports video sensor

    Supports privacy masks of up to 24 zones and up to 8 zones in the same display

    Artificial intelligence:

        Perimeter Protection: Line Crossing Detection, Intrusion Detection (Supports Person / Vehicle Classification Alarm)

        Supports autotracking

        Supports face detection

        Supports SMD Plus

        Smart Captures: Supports image captures of people, motor vehicles and non-motorized vehicles

    Horizontal positioner: 0 ° ~ 360 ° continuous

    Vertical positioner: -15 ° ~ + 90 °

    Manual speed: 0.1 ° ~ 300 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)

    Preset speed: 400 ° / sec. (H), 300 ° / sec. (V)

    300 presets DH-SD, Pelco-D / P (automatic recognition)

    5 patterns, 8 rounds (up to 32 presets per round), 5 scans

    1 audio input / 1 output

    2 alarm inputs / 1 outputs

    MicroSD card slot up to 256GB (card not included)

    Network interface: RJ45 (10/100 Base-T)

    Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP

    ONVIF S / G / T compliant, CGI

    Unicast / Multicast streaming method

    Up to 20 users

    Remote viewing with IE7 +, Chrome42, Firefox52, Safari browsers

    Smart PSS, DSS, DMSS, Easy4ip management software

    Compatible with IOS and Android smartphone

    Power supply: 24V AC / 3A

    Consumption: 8W ~ 20W

    Supports PoE + (802.3at)

    -40 ° C ~ + 70 ° C operating temperature

    Humidity: <95%

    Degree of protection IP67

    IK10 vandal protection

    Lightning-proof 6KV

    Dimensions: Ø190 x 332 (Al) mm

    Weight: 4.7 kg
