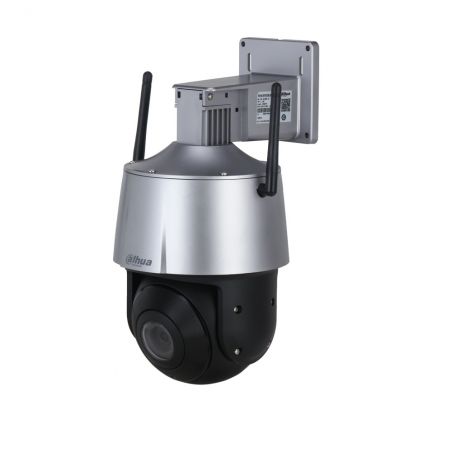

Dahua SD3A200-GNP-W-PV. WizSense IP WiFi Dahua motorized dome 80 ° / sec. with Smart IR of 30 m, for outdoors. H.265 +, H.264 +, H.265, H.264 and MJPEG formats. 1 / 2.8 ""CMOS, 2 megapixels. Triple stream. Resolution up to 1080P @ 25ips. 4 mm (86.8 °) fixed lens. ICR filter. 0.002 / 0.0002 lux. OSD, AWB, AGC, BLC, HLC, digital WDR, 2D / 3D-DNR, digital defog, video sensor and ROI zones. Perimeter protection SMD Plus. 300 presets. Incorporates microphone and speaker. 1 audio input / 1 output. MicroSD slot. WiFi IEEE 802.11b / g / n. Onvif, CGI. IP66. Lightning-proof 2KV. 12V DC. Includes power supply. Does not include supports. Sd3a200-gnp-w-pv.

specs

    Image Sensor 1 / 2.8 "STARVIS 2 Megapixel CMOS

    Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)

    Stream 1: 1080P, 1.3MP, 720P (1 ~ 25/30 ips)

    Stream 2: D1, CIF (1 ~ 25/30 ips)

    Stream 3: 1080P, 1.3MP, 720P (1 ~ 25/30 ips)

    Day / night mode with removable mechanical filter (ICR)

    0.002 lux F1.6 (color) / 0.0002 lux F1.6 (B / W) / 0 lur IR On

    Infrared illumination: 2 IR LEDs + 1 white LED, up to 30 meters

    Video compression H.265 +, H.264 +, H.265, H.264 and MJPEG

    4mm fixed lens

    Viewing angle: 86.8 ° (H), 45.9 ° (V), 102.4 ° (D)

    Imaging modes: BLC, HLC, Digital WDR, 2D / 3D-NR, Digital Defog

    White balance with 8 modes

    Automatic and manual gain control

    Supports video sensor and regions of interest (ROI)

    Perimeter protection with line crossing detection and intrusion detection (with classification of people / vehicles)

    Horizontal positioner: 0 ° ~ 355 °

    Vertical positioner: -15 ° ~ 90 °

    Manual speed: 0.1 ° ~ 80 ° / sec. (H), 0.1 ° ~ 56 ° / sec. (V)

    Preset speed: 81 ° / sec. (H), 43 ° / sec. (V)

    300 presets

    MicroSD card slot up to 256GB (card not included)

    Two-way audio

    Incorporates microphone and speaker

    1 audio input / 1 output

    It incorporates WiFi with IEEE 802.11b / g / n standards at 150Mbps

    Network interface: RJ45 (10/100 Base-T)

    Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,

    IGMP, ICMP, DHCP, PPPoE, ARP, SNMP v1 / v2c / v3 (MIB-2), RTCP, RTMP

    Remote viewing with browsers (IE7, Chrome 42, Firefox 52 and Safari) and IOS and Android smartphones

    DMSS management software

    Interoperability: ONVIF S / G, CGI

    Power supply: 12V DC / 2A (± 10%)

    Consumption: 2.4W (8.5W with IR illumination activated)

    Operating conditions: -30 ° C ~ + 60 ° C, humidity <95%

    Degree of protection IP66

    Lightning-proof 2KV

    Dimensions: 139.6 (W) x 236.3 (H) x 142.3 mm

    Weight: 1 kg

    Includes power supply

- DAHUA-2839
