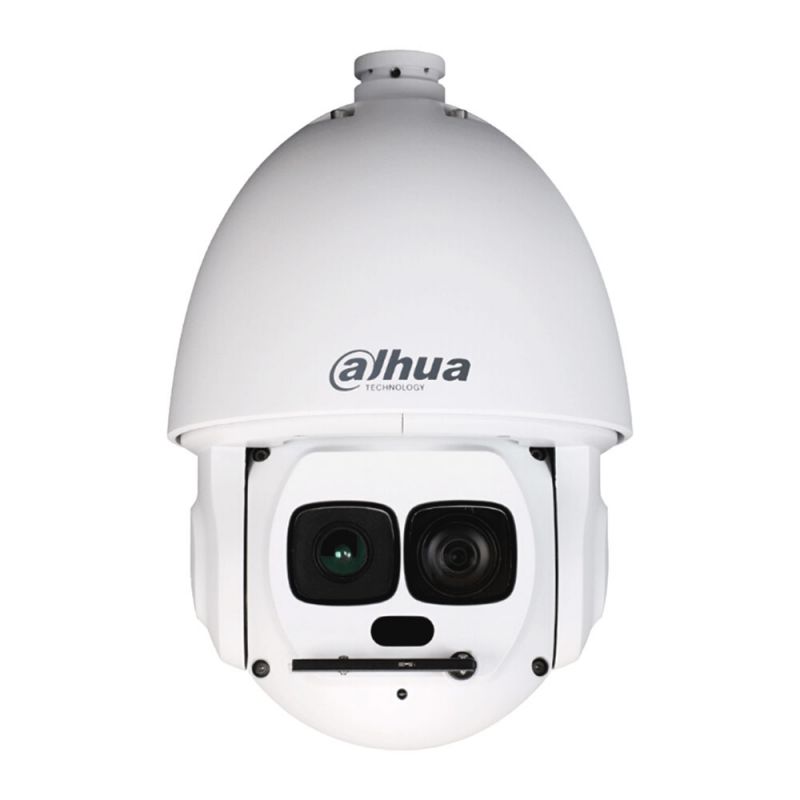

Dahua SD6AL245XA-HNR 200 ° / sec WizSense IP Dahua motorized…

Dahua SD6AL245XA-HNR. 200 ° / sec WizSense IP Dahua motorized dome. with 550 meter laser illumination for outdoors. H.265 +, H.264 +, H.265, H.264 and MJPEG formats. 1 / 2.8 ""CMOS, 2 megapixels. Triple stream. Resolution up to 1080P @ 25ips. 45X optical zoom (3.95 ~ 177.7mm). ICR filter. 0.005 / 0.0005 lux. OSD, AWB, AGC, BLC, HLC, WDR 120dB, 2D / 3D-DNR, digital defog, video sensor and ROI zones. Perimeter protection, SMD Plus, Autotracking, face detection. Intelligence IVS. 300 DH-SD and Pelco-D / P presets. 1 audio input / 1 output. 7 alarm inputs / 2 outputs. MicroSD slot. Onvif, CGI. IP67. Lightning-proof 8KV. 36V DC. Supports Hi-PoE. Includes power supply and wall bracket Sd6al245xa-hnr.

Specs

    Image Sensor 1 / 2.8 "STARVIS 2 Megapixel CMOS

    Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)

    Stream 1: 1080P, 1.3MP, 720P (1 ~ 50 ips)

    Stream 2: D1, CIF (1 ~ 25 ips)

    Stream 3: 1080P, 1.3MP, 720P, D1, CIF (1 ~ 25 ips)

    Day / night mode with removable mechanical filter (ICR)

    0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W) / 0 lux Laser On

    Infrared illumination: 2 IR LEDs + 1 laser, up to 550 meters

    Video compression H.265 +, H.264 +, H.265, H.264 and MJPEG

    45X optical zoom (3.95 ~ 177.7mm)

    Viewing angle: 65.7 ° ~ 1.9 ° (H), 39.4 ° ~ 1.1 ° (V), 73.1 ° ~ 2.1 ° (D)

    Automatic, semi-automatic and manual focus control

    Automatic and manual iris control

    16X digital zoom

    Image Modes: BLC, HLC, WDR 120dB, 2D / 3D-NR, Image Stabilization (EIS), Digital Defog

    White balance with 8 modes

    Automatic and manual gain control

    Supports video sensor, regions of interest (ROI) and 24-zone privacy mask

    IVS Intelligence: Lost / Abandoned Object Detection

    Smart Capture: Supports capturing images of people, motorized vehicles, and non-motorized vehicles

    Perimeter protection with line crossing detection and intrusion detection (with classification of people / vehicles)

    Supports SMD Plus

    Supports autotracking

    Supports face detection

    Horizontal positioner: 0 ° ~ 360 °

    Vertical positioner: -20 ° ~ 90 °

    Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)

    Preset speed: 240 ° / sec. (H), 200 ° / sec. (V)

    300 presets with DH-SD and Pelco-D / P protocols with automatic recognition

    8 rounds (up to 32 presets per round)

    5 patterns and 5 scans

    Speed ??setting

    RS485 port

    MicroSD card slot up to 256GB (card not included)

    1 audio input / 1 output

    7 alarm inputs / 2 outputs

    Network interface: RJ45 (10/100 Base-T)

    Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP v1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP , ICMP, DHCP, PPPoE, ARP, RTCP

    Remote viewing with browsers (IE7, Chrome 42, Firefox 52 and Safari) and IOS and Android smartphones

    Smart PSS, DSS, DMSS, Easy4ip and IVSS management software

    Interoperability: ONVIF S / G / T, CGI

    Power supply: 36V DC / 2.23A (-5% ~ + 10%)

    Consumption: 20W (36W with night vision activated)

    Supports Hi-PoE

    Operating conditions: -40 ° C ~ + 70 ° C, humidity <95%

    Degree of protection IP67

    Lightning-proof 8KV

    Dimensions: Ø239.8 x 358 (Al) mm

    Weight: 6.8 kg
