SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 150SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 11295 AND id_lang = 1 Dahua TPC-BF5401-B13 IP bullet thermal camera. 400 x 300
  • -35%

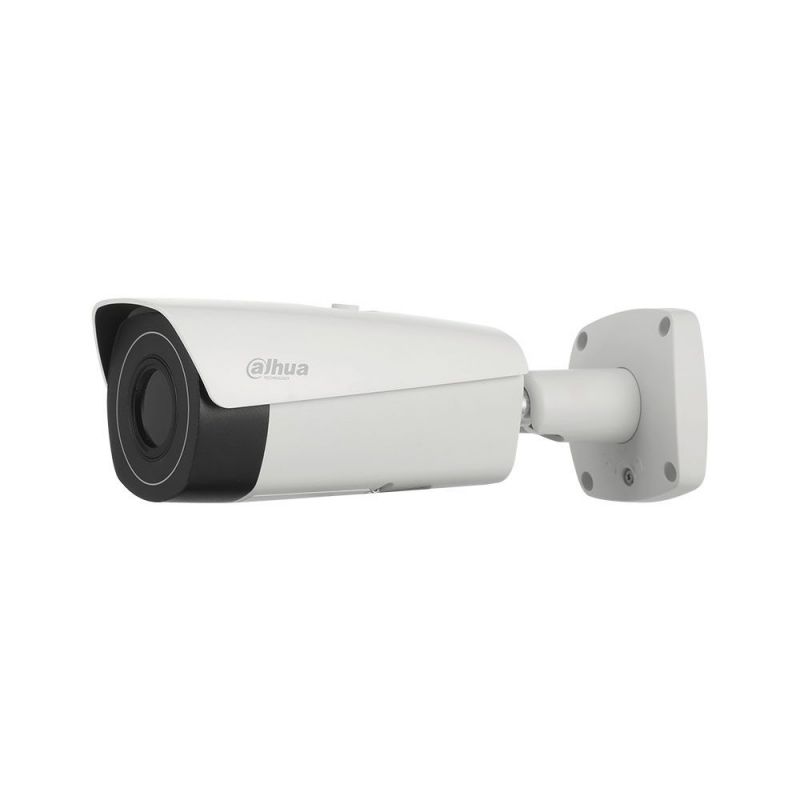

Dahua TPC-BF5401-B13 Tpc-bf5401-b13
search
  • Dahua TPC-BF5401-B13 Tpc-bf5401-b13

Dahua TPC-BF5401-B13 IP bullet thermal camera. 400 x 300

IP bullet thermal camera. 400 x 300. 13 mm lens (30,2° x 22,6°). People detection up to 382 meters and vehicles up to 850 meters. CVBS/BNC. 4X digital zoom. AGC, 3D-DNR, 4 ROI, motion detection and privacy mask. IVS. Audio: 1 in / 1 out. Alarm: 2 in / 2 out. RS485. IP67. Lightning-proof 6KV. 12V…
€2,151.38 €3,309.82 Save 35%
Tax included
Reference TPC-BF5401-B13
Brand Dahua
Quantity
Available in 24/48h

Free shipping
Dahua TPC-BF5401-B13 Tpc-bf5401-b13

Dahua TPC-BF5401-B13 IP bullet thermal camera. 400 x 300

€2,151.38 €3,309.82 Save 35%

You might also like

Dahua TPC-BF5401-B13. IP bullet thermal camera. 400 x 300. 13 mm lens (30,2° x 22,6°). People detection up to 382 meters and vehicles up to 850 meters. CVBS/BNC. 4X digital zoom. AGC, 3D-DNR, 4 ROI, motion detection and privacy mask. IVS. Audio: 1 in / 1 out. Alarm: 2 in / 2 out. RS485. IP67. Lightning-proof 6KV. 12V DC. PoE/ePoE. Tpc-bf5401-b13.



Features

  • 400x300 VOx uncooled thermal sensor technology
  • Athermalized Lens (thermal), Focus-free
  • Support Fire detection & alarm
  • 13 mm focal distance
  • Alarm: 2 in / 2 out
  • MicroSD slot
  • IP67
  • ePoE / PoE supported

Specs

  • Long life sensor, Uncooled VOx Microbolometer
  • Effective pixels: 400 x 300
  • Pixel size: 17 µm
  • Thermal sensitivity (NETD): 40mK
  • Spectral range: 8 ~14 µm
  • Focal distance: 13 mm
  • Viewing angle: 30,2°(H), 22,6°(V)
  • Effective distance on people (1,8 m x 0,5 m):
    • Detection: 382 meters
    • Recognition: 98 meters
    • ID: 49 meters
  • Effective distance on vehicles (4m x 1,4m):
    • Detection: 850 meters
    • Recognition: 219 meters
    • ID: 109 meters
  • 4X digital zoom (19 levels)
  • Adjustment of brightness, sharpness, AGC, FFC, 3D-DNR
  • 18 color palettes
  • Mirror mode
  • 4 ROI zones
  • Motion detection: 4 rectangular zones
  • Privacy mask: 4 rectangular zones
  • H.265, H.264, MJPEG
  • Stream 1: 1280x1024, 720P, 400x300 (25 fps)
  • Stream 2: 640x512, 400x300 (25 fps)
  • IVS: Tripwire, intrusion
  • Advanced detection functions: Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification
  • G.711A, G.711Mu, AAC y PCM
  • CVBS/BNC video output
  • Audio: 1 in / 1 out
  • Alarm: 2 in / 2 out
  • RS485
  • Ethernet: RJ-45 (10/100 Base-T)
  • Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Compatible with Onvif Profile S/G, API
  • Management sofware SmartPSS, DSS
  • MicroSD up to 256GB (card is not included)
  • Power supply: 12V DC
  • Consumption: 13W
  • PoE / ePoE supported
  • Storage temperature -40°C ~+70°C
  • Working temperature -40°C ~+70°C
  • RH: <95%
  • Lightning-proof 6KV
  • IP67
  • Metal case
  • Dimensions: 103,8 (W) x 97,2 (H) x 291 mm
  • Weight: 1,5 Kg

Nota: The actual distance values shown are nominal values and should be used as an estimate. Check with your salesperson for the recommended detection distances with our Vaelsys perimeter system.
