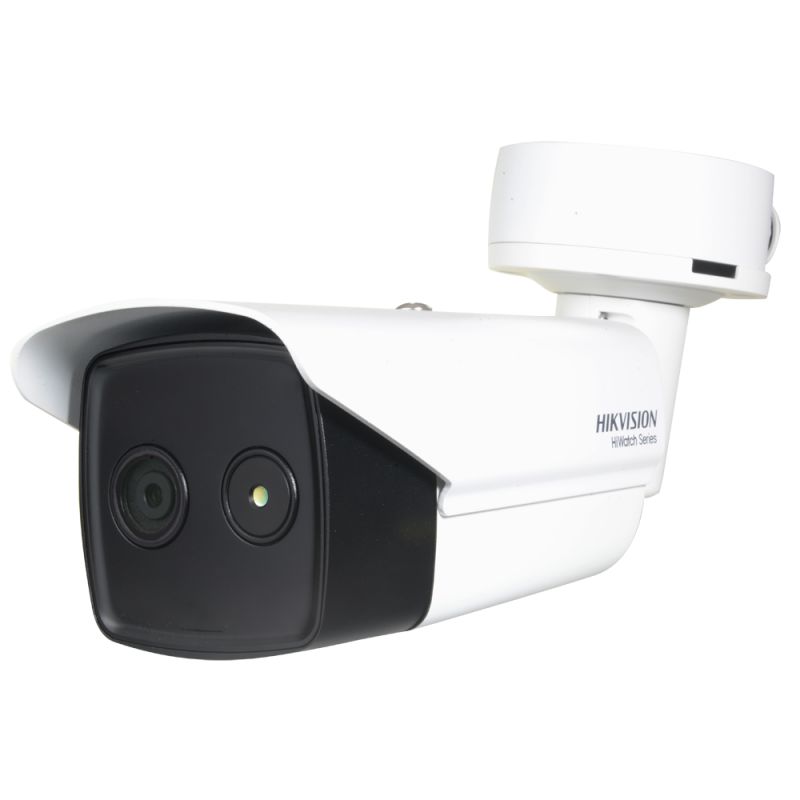

Hiwatch HWH-B210-6/P - Hikvision Dual IP Thermal Camera, 160x120 VOx | 6mm…
search
  • Hiwatch HWH-B210-6/P - Hikvision Dual IP Thermal Camera, 160x120 VOx | 6mm…

Hiwatch HWH-B210-6/P - Hikvision Dual IP Thermal Camera, 160x120 VOx | 6mm…

Hikvision Dual IP Thermal Camera - 160x120 VOx | 6mm Lens - Optical sensor 1/2.7” 4 MP | Lens 6mm - Thermal sensitivity ? 40mK - Fire detection and alarm - Temperature measurement range -20~150ºC / ± 8ºC
€570.00
Tax included
Reference HWH-B210-6/P
Brand Hiwatch
Quantity
Available in 24/48h

Free shipping
Hiwatch HWH-B210-6/P - Hikvision Dual IP Thermal Camera, 160x120 VOx | 6mm…

Hiwatch HWH-B210-6/P - Hikvision Dual IP Thermal Camera, 160x120 VOx | 6mm…

€570.00
  • Hikvision
  • Dual Thermal IP Camera
  • Thermal sensor 160x120 Vox Lens 6 mm
  • Temperature measurement range -20º C~150º C (±8ºC)
  • 15 Colours
  • Thermal sensitivity < 40mK
  • Optical sensor 1/2.7” Progressive CMOS
  • 4 Megapixel (2688x1520) Lens 6 mm
  • Colour 0.0089 Lux / B&W 0.0018 Lux
  • H.265+ / H.265
  • WDR
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Audio
  • Alarms
  • Fire detection and alarm
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Bracket included
  • Weatherproof IP66

Features

  • Hikvision Dual IP Thermal Camera
  • 160x120 VOx | 6mm Lens
  • Optical sensor 1/2.7” 4 MP | Lens 6mm
  • Thermal sensitivity ? 40mK
  • Fire detection and alarm
  • Temperature measurement range -20~150ºC / ± 8ºC

Specs

Brand Hikvision
Thermal sensor 160x120 Vanadium Oxide
Optical sensor 1/2.7” Progressive Scan CMOS 4 Megapixel
Main Stream rate 160x120(25fps) Thermal / 2688x1520 (25fps) Optical
Extra Stream rate 160x120 (25fps) Thermal / 704x576 (25fps) Optical
Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Lens 6 mm (Therm) / 6 mm (Opt)
Range performance Human: 182 (Detection) / 46 (Recognition) / 23 (Identification) m
Vehicle: 559 (Detection) / 140 (Recognition) / 70 (Identification) m
VCA ranges Human: 60 m

Vehicle: 240 m

Tº measurement (2x2m): 132 m

Tº measurement (1x1m): 66 m

Fire detection (2x2m): 360 m

Fire detection (1x1m): 180 m
Viewing angle 25°×18.7° (Term) / 53°×30° (Opt)
Thermal sensitivity < 40mK (0.05 º C)
Thermal measurement range -20 ~150 º C / ± 8 º C
Spectral range 8~14μm
Pitch detector 17μm
VCA Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area)
Temperature rules Up to 21 rules (10 points, 10 areas y 1 line)
Intelligent functions Fire detection and alarm, line crossing, intrusion, abandoned/lost object
Audio 1 Input / 1 line level output 600 ohm
Alarm 2 / 2 In / Relay
Internal memory Micro SD card up to 128GB
Network interface Ethernet 10/100M BaseT
Remote access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Interoperability ONVIF
Power 12VDC / 7.5 W max. , PoE IEEE802.3af
Temp. operation -40º C ~ +65º C
Degree of protection Weatherproof IP66
Dimensions 358.3 mm (Fo) x 113.5 (An) x 115.2 (Al) mm
Weight 1760 g

Package content

  • Hikvision IP thermal camera
  • Installation material
  • User instructions
  • Bracket included

Data sheet

Weight
1760 g
Power
12VDC / 7.5 W max., PoE IEEE802.3af
Temp. operation
-40º C ~ +65º C
Degree of protection
Weatherproof IP66
Dimensions
358.3 mm (Fo) x 113.5 (An) x 115.2 (Al) mm
Alarm
2 / 2 In / Relay
Audio
1 Input / 1 line level output 600 ohm
Lens
6 mm (Therm) / 6 mm (Opt)
Viewing angle
25°×18.7° (Term) / 53°×30° (Opt)
Internal memory
Micro SD card up to 128GB
Remote access
WEB, CMS (DSS/PSS), Smartphone and NVR interface
Main Stream rate
160x120(25fps) Thermal / 2688x1520 (25fps) Optical
Extra Stream rate
160x120 (25fps) Thermal / 704x576 (25fps) Optical
Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Network interface
Ethernet 10/100M BaseT
Interoperability
ONVIF
Intelligent functions
Fire detection and alarm, line crossing, intrusion, abandoned/lost object
Thermal sensor
160x120 Vanadium oxide
Optical sensor
1/2.7” Progressive Scan CMOS 4 Megapixel
Range performance
Human: 182 (Detection) / 46 (Recognition) / 23 (Identification) m Vehicle: 559 (Detection) / 140 (Recognition) / 70 (Identification) m
VCA ranges
Human: 60 m Vehicle: 240 m Tº measurement (2x2m): 132 m Tº measurement (1x1m): 66 m Fire detection (2x2m): 360 m Fire detection (1x1m): 180 m
Thermal sensitivity
≤ 40mK (0.05 º C)
Thermal measurement range
-20 ~150 º C / ± 8 º C
Spectral range
8~14μm
Pitch detector
17μm
VCA
Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area)
Temperature rules
Up to 21 rules (10 points, 10 areas y 1 line)
