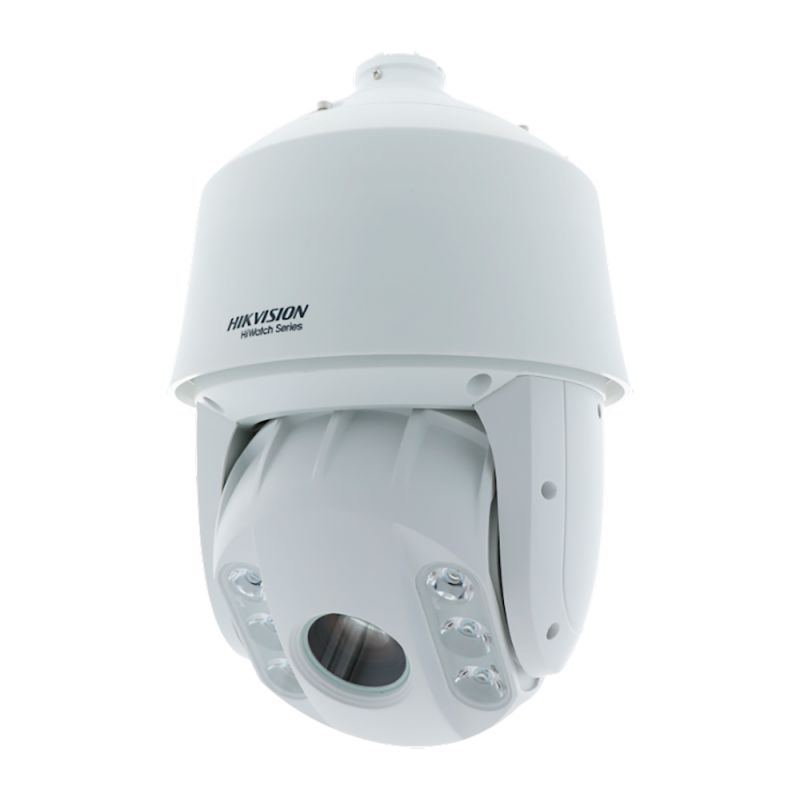

Hiwatch HWP-N5225IH-AE - 2 MP Motorised IP Camera, 1/2.8” Progressive Scan…
search
  • Hiwatch HWP-N5225IH-AE - 2 MP Motorised IP Camera, 1/2.8” Progressive Scan…

Hiwatch HWP-N5225IH-AE - 2 MP Motorised IP Camera, 1/2.8” Progressive Scan…

2 MP Motorised IP Camera - 1/2.8” Progressive Scan CMOS - Compression H.265+/H.265 - 4.8~120 mm Lens (25X) Auto Iris - SD card Recording | IR LEDs 150m - WDR (120dB) | 3DNR | BLC | HLC |
€397.80 €612.00 Save 35%
Tax included
Reference HWP-N5225IH-AE
Brand Hiwatch
Quantity
Available in 24/48h

Free shipping
Hiwatch HWP-N5225IH-AE - 2 MP Motorised IP Camera, 1/2.8” Progressive Scan…

Hiwatch HWP-N5225IH-AE - 2 MP Motorised IP Camera, 1/2.8” Progressive Scan…

€397.80 €612.00 Save 35%

You might also like

  • Hikvision HiWatch Series
  • PTZ IP Camera
  • Average speed 120º/segundo
  • 25X Optical zoom
  • 1/2.8" Progressive Scan CMOS
  • 2 Megapixel (1920x1080)
  • 4.8-120mm Varifocal Lens
  • IR Range 150 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE+ 802.3at
  • Weatherproof IP66
  • IR Cut
  • WDR
  • SD card recording
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • Bracket not included (see compatible brackets)

Features

  • 2 MP Motorised IP Camera
  • 1/2.8” Progressive Scan CMOS
  • Compression H.265+/H.265
  • 4.8~120 mm Lens (25X) Auto Iris
  • SD card Recording | IR LEDs 150m
  • WDR (120dB) | 3DNR | BLC | HLC |

Specs

Brand Hikvision
Range HiWatch Series
Resolution 1080p (1920x1080) at 25 FPS
Minimum illumination 0.005 Lux @ F1.6 (colour) / 0.001 Lux @ F1.6 (B/N)
Infrared lighting Automatic IR LED's, range 150 metres
Compression H.265+/H.265/H.264+/H.264; Smart: ANR and ROI
Lens Varifocal 4.8 ~ 120.0 mm (Optical Zoom 25X)
Digital zoom 16 X
Electronic shutter 1/1s~1/30,000s
Day / Night Removable mechanical ICR filter
Image improvements BLC, HLC, WDR (120dB), 3D-NR, AGC, AWB, Motion Detection
Video analysis VCA: Tripwire | Area intrusion | Audio exception
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual speed Horizontal: 0.1° ~120°/s, Vertical: 0.1° ~80°/s
Speed between Presets Horizontal: 120° /s, Vertical: 80° /s
Preset positions 300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan
Internal memory MicroSD card, Max 256 GB
Audio No
Alarms No
PTZ Control Through network access
Network interface Ethernet 10 / 100 BaseT
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Interoperability ONVIF, API, PSIA, CGI
Power AC 24 V / 1.5 A | PoE+(802.3at, class4)
Temp. operation -30º C ~ +65º C
Degree of protection IP66 / Surges 4000V
Dimensions (without bracket) 345 mm (H) x 213 (Ø) mm
Weight (without bracket) 3300 g

Package content

  • Hikvision Motorised IP Dome Camera
  • AC/AC adapter 24V / 1.5A
  • Allen wrench
  • Seal to RJ45
  • CD with software and instructions

Data sheet

Power
AC 24 V / 1.5 A | PoE+(802.3at, class4)
Resolution
1080p (1920x1080) at 25 FPS
Temp. operation
-30º C ~ +65º C
Degree of protection
IP66 / Surges 4000V
Dimensions (without support)
345 mm (H) x 213 (Ø) mm
Power supply
AC 24 V / 1.5 A | PoE+(802.3at, class4)
Range
HiWatch Series
Audio
No
Minimum illumination
0.005 Lux @ F1.6 (colour) / 0.001 Lux @ F1.6 (B/N)
Lens
Varifocal 4.8 ~ 120.0 mm (Optical Zoom 25X)
Infrared lighting
Automatic IR LED\'s, range 150 metres
Image improvements
BLC, HLC, WDR (120dB), 3D-NR, AGC, AWB, Motion Detection
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual speed
Horizontal: 0.1° ~120°/s, Vertical: 0.1° ~80°/s
Preset positions
300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan
Alarms
No
Internal memory
MicroSD card, Max 256 GB
Remote access
Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Compression
H.265+/H.265/H.264+/H.264, Smart: ANR and ROI
Network interface
Ethernet 10 / 100 BaseT
Video analysis
VCA: Tripwire | Area intrusion | Audio exception
Interoperability
ONVIF, API, PSIA, CGI
Digital zoom
16 X
Electronic shutter
1/1s~1/30,000s
Speed between Presets
Horizontal: 120° /s, Vertical: 80° /s
PTZ Control
Through network access
Weight (without support)
3300 g
Dimensions (without bracket)
345 mm (H) x 213 (Ø) mm
Weight (without bracket)
3300 g
