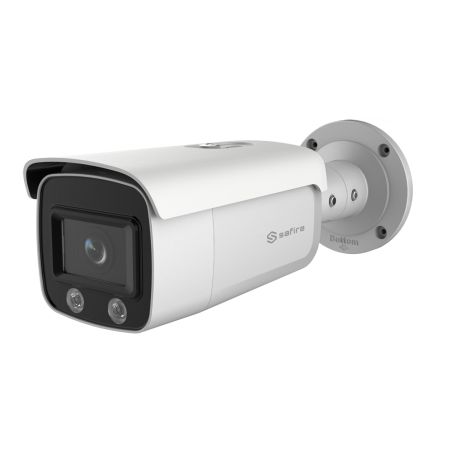

Safire SF-IPB798CWH-4U-AI2 - 4 MP IP Camera, 1/1.8\" Night Color Sensor, Compression…
search
  • Safire SF-IPB798CWH-4U-AI2 - 4 MP IP Camera, 1/1.8\" Night Color Sensor, Compression…

Safire SF-IPB798CWH-4U-AI2 - 4 MP IP Camera, 1/1.8\" Night Color Sensor, Compression…

4 MP IP Camera - 1/1.8" Night Color Sensor - Compression H.265+ / H.265 - 2.8mm / WDR Lens - Truesense2: Improved false alarm filter
€270.00
Tax included
Reference SF-IPB798CWH-4U-AI2
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-IPB798CWH-4U-AI2 - 4 MP IP Camera, 1/1.8\" Night Color Sensor, Compression…

Safire SF-IPB798CWH-4U-AI2 - 4 MP IP Camera, 1/1.8\" Night Color Sensor, Compression…

€270.00

You might also like

  • Safire
  • IP camera
  • 1/1.8" Progressive Scan CMOS Night Color
  • 4 Megapixel (2592x1944)
  • 2.8 mm Lens
  • WDR
  • Compression H.265+/H.264+
  • TrueSense2, improved false alarm filter for vehicles and people
  • Face Capture: Compatible with facial recognition recorders
  • RJ-45 10/100 BaseT
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Weatherproof IP66

Features

  • 4 MP IP Camera
  • 1/1.8" Night Color Sensor
  • Compression H.265+ / H.265
  • 2.8mm / WDR Lens
  • Truesense2: Improved false alarm filter

Specs

Brand SAFIRE
Image sensor 1/1.8" Progressive Scan CMOS
Maximum resolution 4 Megapixel (2688x1520)
Minimum illumination 0.0005 Lux / F1.0 Color Night Color
Infrared lighting No
Lens 2.8 mm (H:109º, V: 55º)
Bitrate 32 Kbps ~ 8 Mbps
Main Stream rate 4Mpx / 3Mpx / 1080p / 720p (1 ~ 25 FPS)
Extra Stream rate 640x480, 640x360, 320x240 (1 ~ 25 FPS)
Compression H.265+ / H265 /H.264+ / H264
Image improvements WDR (120dB), BLC, 3D-DNR, MD, ROI
Advanced features Line-crossing detection | intrusion | entry / exit area
Truesense 2 Motion Detection, Line Crossing, Entry / Exit area
Truesense and Face capture cannot be active at the same time
Face Capture YES (Compatible with Safire's Face Recognition recorders)
Truesense and Face capture cannot be active at the same time
Day / Night Removable mechanical ICR filter
Internal memory MicroSD card, Max 256 GB
Network interface Ethernet 10/100 BaseT
Alarms No
Audio No
Remote access NVR, Web Browser, App Smartphone and PC Software Safire Control Center
Interoperability ONVIF
Power DC 12V / 0.7A, max. 8.5W, PoE IEEE802.3af max. 10.5W
Degree of protection IP66
Material Metallic
Temp. operation -30º C ~ +60º C
Dimensions 291.2 mm (H) x 105 (Ø) mm
Base dimensions 62.6 x 62.6 mm (4 screws)
Weight 1260 g

Package content

  • Safire IP Bullet Camera
  • Installation material
  • CD with software and instructions
  • User instructions

Data sheet

Weight
1260 g
Power
DC 12V / 0.7A, max. 8.5W, PoE IEEE802.3af max. 10.5W
Temp. operation
-30º C ~ +60º C
Degree of protection
IP66
Dimensions
291.2 mm (H) x 105 (Ø) mm
Transfer Rate
32 Kbps ~ 8 Mbps
Material
Metallic
Audio
No
Image sensor
1/1.8\" Progressive Scan CMOS
Minimum illumination
0.0005 Lux / F1.0 Color Night Color
Lens
2.8 mm (H:109º, V: 55º)
Maximum resolution
4 Megapixel (2688x1520)
Infrared lighting
No
Image improvements
WDR (120dB), BLC, 3D-DNR, MD, ROI
Day / Night
Removable mechanical ICR filter
Base dimensions
62.6 x 62.6 mm (4 screws)
Alarms
No
Internal memory
MicroSD card, Max 256 GB
Remote access
NVR, Web Browser, App Smartphone and PC Software Safire Control Center
Main Stream rate
4Mpx / 3Mpx / 1080p / 720p (1 ~ 25 FPS)
Extra Stream rate
640x480, 640x360, 320x240 (1 ~ 25 FPS)
Compression
H.265+ / H265 /H.264+ / H264
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
People counting
YES, 95% Precision (Compatible with the firmware V5.5.131 build version 200702) TrueSense, Face capture and People Counting cannot be active at the same time
Advanced features
Line-crossing detection | intrusion | entry / exit area
Truesense 2
Motion Detection, Line Crossing, Entry / Exit area TrueSense, Face capture and People Counting cannot be active at the same time
Motion Detection, Line Crossing, Entry / Exit area Truesense and Face capture cannot be active at the same time
Face Capture
YES (Compatible with Safire\'s Face Recognition recorders) TrueSense, Face capture and People Counting cannot be active at the same time
YES (Compatible with Safire\'s Face Recognition recorders) Truesense and Face capture cannot be active at the same time
Mask Detection
YES (Compatible with the firmware V5.5.131 build version 200702) People Counting and Mask Detection use different firmware files
