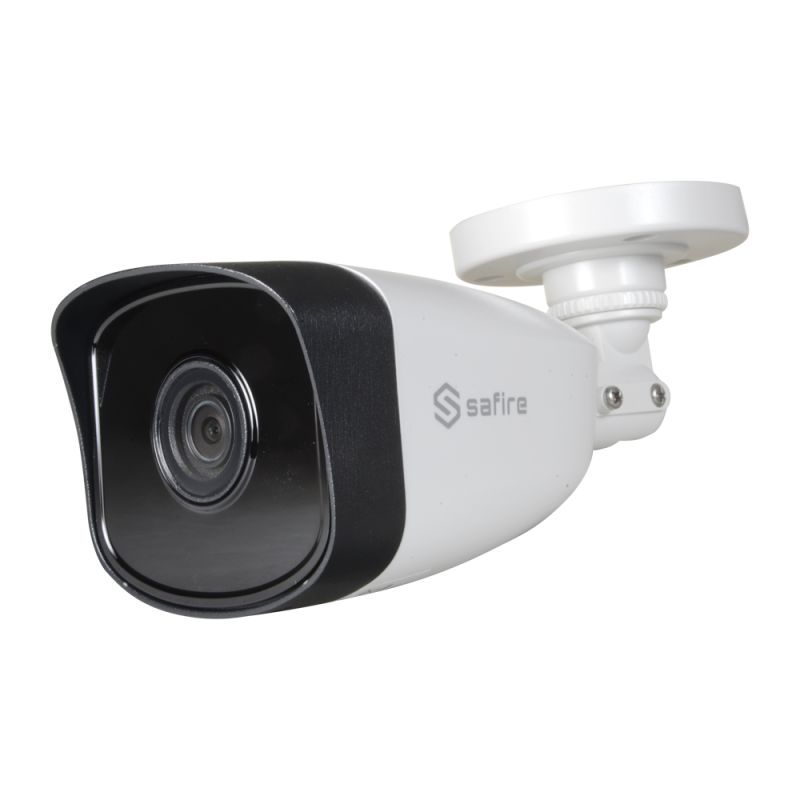

Safire SF-IPB025H-4E - 4 MP IP Camera, 1/3\" Progressive Scan CMOS,…

4 MP IP Camera - 1/3" Progressive Scan CMOS - Compression H.265+ / H.265 - Lens 2.8 mm | DWDR - IR LEDs Range 30 m - PoE IEEE802.3af | IP67
€104.00
Tax included
Reference SF-IPB025H-4E
Brand Safire
Quantity
In Stock

Free shipping
Hiwatch HWN-5208MH - NVR for IP cameras, 8 CH video, Max Resolution 8 Mpx /…

Safire SF-IPB025H-4E - 4 MP IP Camera, 1/3\" Progressive Scan CMOS,…

€104.00

You might also like

  • Safire
  • IP camera
  • 1/3" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • 2.8 mm Lens
  • 0 Lux
  • IR Range 30 m
  • H.265+/H.265/H.264+/H.264
  • Dual stream
  • IR Cut
  • DWDR
  • RJ-45 10/100 BaseT
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Weatherproof IP67

Features

  • 4 MP IP Camera
  • 1/3" Progressive Scan CMOS
  • Compression H.265+ / H.265
  • Lens 2.8 mm | DWDR
  • IR LEDs Range 30 m
  • PoE IEEE802.3af | IP67

Specs

Brand SAFIRE
Image sensor 1/3" Progressive Scan CMOS
Maximum resolution 4 Megapixel (2560x1440)
Main Stream rate 20 fps (2560 x 1440, 2304 x 1296, 1920 × 1080, 1280 × 960, 1280×720)
Extra Stream rate 25 fps (640 × 480, 640 × 360, 320 × 240)
Compression H.265+ / H.264+ / H.265 / H.264
Bitrate 32 Kbps ~ 8 Mbps
Lens 2.8 mm
Minimum illumination 0.028 Lux F2.0 (color)
Infrared lighting 0 Lux / IR LEDs (30 m)
Image improvements BLC, 3D-DNR, DWDR (120dB), AWB, ROI, Motion detection, Mirror, Privacy mask
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100M BaseT
Remote access Web browser, Safire Control Center Smartphone App and PC Software
Interoperability ONVIF, PSIA, CGI, ISAPI
Lens positioning 3 Axis
Power DC 12 V / 350 mA, PoE IEEE802.3af
Degree of protection Weatherproof IP67
Temp. operation -30º C ~ +60º C
Dimensions 186.4 (D) x 71.4 (W) x 67.2 (H) mm
Base dimensions 55 mm (Ø) x 3 bolts
Weight 280 g

Package content

  • Safire IP Bullet Camera
  • Installation material
  • User instructions
  • CD with software and instructions

Data sheet

Weight
6 g
280 g
Power
DC 12 V, 50/60 Hz
DC 12 V / 350 mA, PoE IEEE802.3af
Temp. operation
-10ºC ~ 40ºC
-30º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
86 (H) x 54 (W) x 0.8 (D) mm
186.4 (D) x 71.4 (W) x 67.2 (H) mm
Transfer Rate
32 Kbps ~ 8 Mbps
Dimensions / Weight
52 (H) x 385 (W) x 315 (D) mm / 1.0 Kg (without HDD)
Range
HiWatch Series
Communication
2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Compatibility
Compatible with Ajax KeyPad Plus
Image sensor
1/3\" Progressive Scan CMOS
Minimum illumination
0.028 Lux F2.0 (color)
Lens
2.8 mm
Maximum resolution
4 Megapixel (2560x1440)
Infrared lighting
0 Lux / IR LEDs (30 m)
Image improvements
BLC, 3D-DNR, DWDR, AWB, ROI, Motion detection, Mirror, Privacy mask
Day / Night
Removable mechanical ICR filter
Base dimensions
55 mm (Ø) x 3 bolts
Inputs for IP cameras
LAN port up to 8 channels
IP compatible cameras
HIKVISION, ONVIF
Bidirectional audio
1 input / 1 RCA output
Video compression format
H.265+ / H.265 / H.264+ / H.264
Display resolution
3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth
80 Mbps downstream / 160 Mbps upstream
Main Stream recording
8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
4 inputs / 1 relay
Recording method
Manual, programmed, motion detection, alarm
External Backup
USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory
2 SATA HDD 3.5\" of up to 6 TB (not included)
Remote access
Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
20 fps (2560 x 1440, 2304 x 1296, 1920 × 1080, 1280 × 960, 1280×720)
Extra Stream rate
25 fps (640 × 480, 640 × 360, 320 × 240)
Compression
H.265+ / H.264+ / H.265 / H.264
Network interface
Ethernet 10/100M BaseT
Video outputs
1 HDMI 4K, 1 VGA
Interoperability
ONVIF, PSIA, CGI, ISAPI
Decoding capacity
2CH @ 8 MP (25fps) / 4CH @ 4MP (30fps) / 8CH @ 1080p (30fps)
Lens positioning
3 axis
RFID Technology
Mifare DESFire® ( ISO 14443-А 13,56 MHz)
Max. number of linked hubs
Up to 13 Hubs
