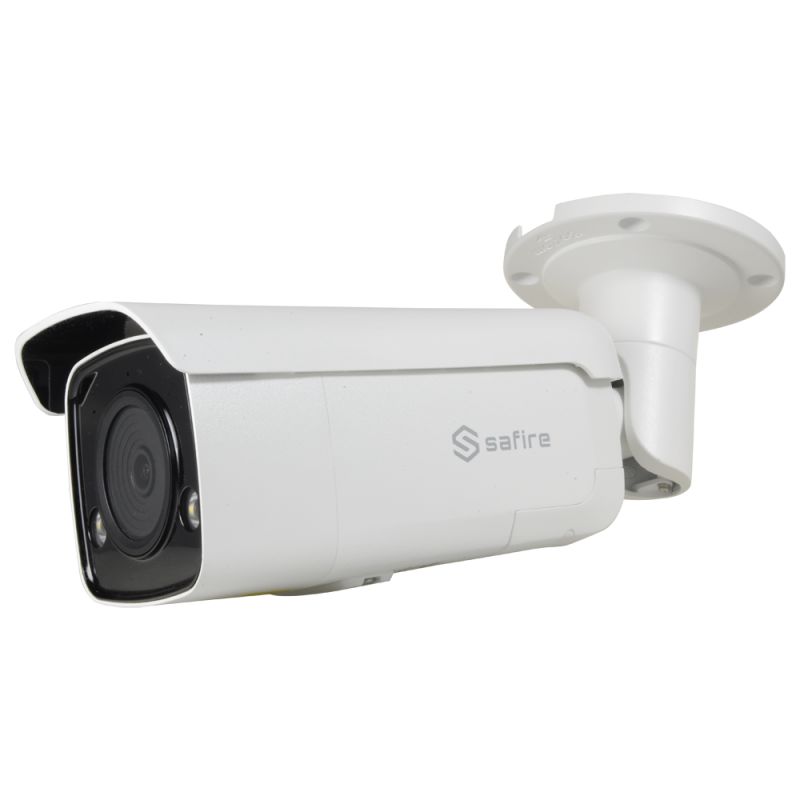

Safire SF-IPB098UWHA-4US-AI2 - 4Mpix IP Camera, 1/2.7\" Ultra Low Light sensor, H.265+…
4Mpix IP Camera - 1/2.7" Ultra Low Light sensor - H.265+ | Lens 2.8 mm | WDR | IR 60 m - Microphone | Speakerphone | Alarm | Dissuasive Light - Truesense2: Improved false alarm filter
€258.00
Tax included
Reference
SF-IPB098UWHA-4US-AI2
Brand
Safire
Safire SF-IPB098UWHA-4US-AI2 - 4Mpix IP Camera, 1/2.7\" Ultra Low Light sensor, H.265+…
€258.00
You might also like
- Safire
- IP camera
- 1/2.7" Progressive Scan CMOS Ultra Low Light
- 4 Megapixel (2592x1944)
- 2.8 mm Lens
- WDR
- Compression H.265+/H.264+
- IR Cut
- 0 Lux
- IR Range 60 m
- TrueSense2, improved false alarm filter for vehicles and people
- Face Capture: Compatible with facial recognition recorders
- RJ-45 10/100 BaseT
- Microphone and speaker built-in
- Alarms and warning lights
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Micro SD card recording
- PoE IEEE802.3af
- Weatherproof IP67
Features
- 4Mpix IP Camera
- 1/2.7" Ultra Low Light sensor
- H.265+ | Lens 2.8 mm | WDR | IR 60 m
- Microphone | Speakerphone | Alarm | Dissuasive Light
- Truesense2: Improved false alarm filter
Specs
| Brand | SAFIRE |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Minimum illumination | 0.003 Lux / F1.4 Ultra Low Light Color |
| Infrared lighting | 0 Lux / IR LEDs (60 m) |
| Lens | 2.8 mm (H:103º, V: 55º) |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Main Stream rate | 4Mpx / 3Mpx / 1080p / 720p (1 ~ 25 FPS) |
| Extra Stream rate | 640x480, 640x360, 320x240 (1 ~ 25 FPS) |
| Compression | H.265+ / H265 /H.264+ / H264 |
| Image improvements | WDR (120dB), BLC, 3D-DNR, MD, ROI |
| Advanced features | Line-crossing detection | intrusion | entry / exit area |
| Truesense 2 | Motion Detection, Line Crossing, Entry / Exit area Truesense and Face capture cannot be active at the same time |
| Face Capture | YES (Compatible with Safire's Face Recognition recorders) Truesense and Face capture cannot be active at the same time |
| Day / Night | Removable mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Alarms | 1 IN / 1 RELAY (max). 12VDC, 30mA) |
| Audio | 1 IN / 1 OUT Microphone and speaker built-in |
| Remote access | NVR, Web Browser, App Smartphone and PC Software Safire Control Center |
| Interoperability | ONVIF |
| Power | DC 12V / 0.88A, max. 10.5W, PoE IEEE802.3af max. 12.5W |
| Degree of protection | IP67 |
| Material | Metallic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 287.6(Al) x 105(Ø) mm |
| Base dimensions | 88 x 88 x 88 mm (3 screws) |
| Weight | 1135 g |
Package content
- Safire IP Bullet Camera
- Installation material
- CD with software and instructions
- User instructions
Data sheet
- Weight
- 1135 g
- Power
- DC 12V / 0.88A, max. 10.5W, PoE IEEE802.3af max. 12.5W
DC 12V / 5A - Temp. operation
- -30º C ~ +60º C
- Degree of protection
- IP67
- Dimensions
- 287.6(Al) x 105(Ø) mm
- Transfer Rate
- 32 Kbps ~ 8 Mbps
- Material
- Metallic
- Dimensions / Weight
- 288 (H) x 375 (W) x 53 (D) mm / 2.0 Kg
- Communication
- RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100/1000 (Ethernet)
- Audio
- 1 IN / 1 OUT Microphone and speaker built-in
4 in / 1 out RCA - Video format
- HDTVI / HDCVI / AHD / CVBS / IP
- Image sensor
- 1/2.7\" Progressive Scan CMOS
- Minimum illumination
- 0.003 Lux / F1.4 Ultra Low Light Color
- Lens
- 2.8 mm (H:103º, V: 55º)
- Maximum resolution
- 4 Megapixel (2688x1520)
- Infrared lighting
- 0 Lux / IR LEDs (60 m)
- Image improvements
- WDR (120dB), BLC, 3D-DNR, MD, ROI
- Day / Night
- Removable mechanical ICR filter
- Video inputs
- 16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
- Base dimensions
- 88 x 88 x 88 mm (3 screws)
- Bidirectional audio
- Reusing the audio input/output
- Display resolution
- 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- Total bandwidth
- 128 Mbps
- Simultaneous multifunction
- Pentaplex: Live, Recording, Playback, Backup and Remote Access
- Alarms
- 1 IN / 1 RELAY (max). 12VDC, 30mA)
16 input / 3 relay - Recording method
- Manual, programmed, motion detection, alarm, stop
- Internal memory
- 2 SATA HDD up to 10TB (not included)
MicroSD card, Max 256 GB - Remote access
- NVR, Web Browser, App Smartphone and PC Software Safire Control Center
Web browser, mobile phone application or PSS software - Main Stream rate
- 4Mpx / 3Mpx / 1080p / 720p (1 ~ 25 FPS)
- Extra Stream rate
- 640x480, 640x360, 320x240 (1 ~ 25 FPS)
- Compression
- H.265+ / H265 /H.264+ / H264
- Network interface
- Ethernet 10/100 BaseT
- Video outputs
- 1 HDMI 4K, 1 VGA
- Video / audio compression
- H.265+/H.265/H.264+/H.264 / G.711u
- Main Stream coding
- 4K (7FPS), 6MP (10FPS), 5MP (1~12fps) 4M-N/1080p (1~25/30FPS)
- Hybrid configuration
- Up to 32 IP Channels (8Mpx), replacing all the BNC channels
- Recording resolution
- 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, VAT
- Extra Stream coding
- 960H(1fps–15fps) D1/CIF(1fps–25/30fps)
- Backup
- USB / Network
- Video analysis
- IVS: Tripwire | Area intrusion | Abandoned object | Face detection
- Interoperability
- ONVIF
- Intelligent functions
- Function P2P | POS function | Alarm / audio / update by Coaxial (All-over-Coax)
- Advanced features
- Line-crossing detection | intrusion | entry / exit area
- Intelligent motion detection
- Up to 16 channels capable of classifying targets amongst humans and vehicles
- Truesense 2
- Motion Detection, Line Crossing, Entry / Exit area Truesense and Face capture cannot be active at the same time
- Face Capture
- YES (Compatible with Safire\'s Face Recognition recorders) Truesense and Face capture cannot be active at the same time
4Mpix IP Camera - 1/2.7" Ultra Low Light sensor - H.265+ | Lens 2.8 mm | WDR | IR 60 m - Microphone | Speakerphone | Alarm | Dissuasive Light - Truesense2: Improved false alarm filter
