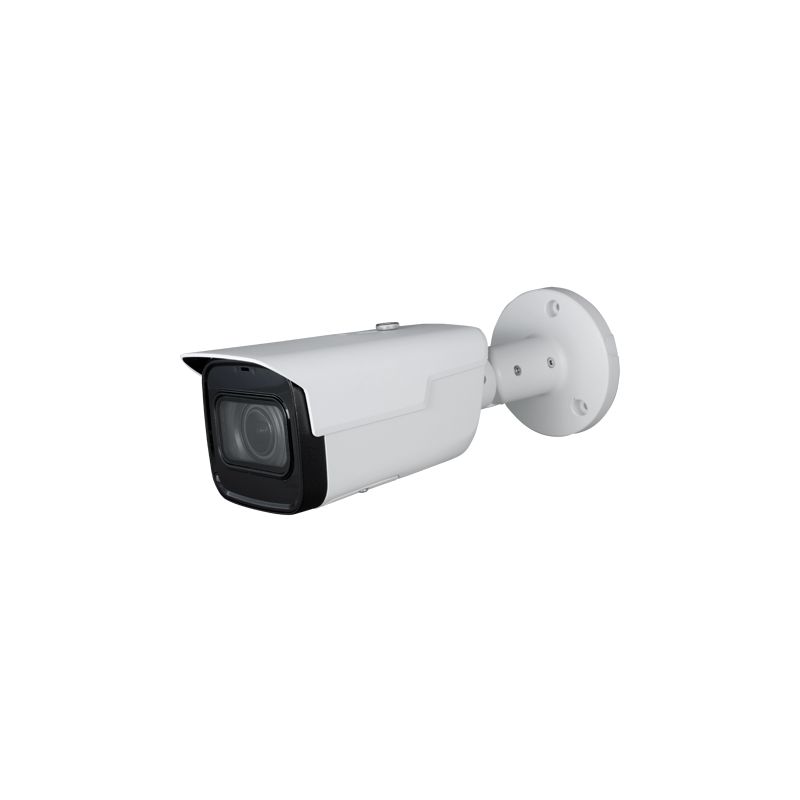

X-Security XS-IPB830ZSWHA-4P - 4Mpx IP PRO Camera, 1/3” Progressive CMOS,…
search
  • X-Security XS-IPB830ZSWHA-4P - 4Mpx IP PRO Camera, 1/3” Progressive CMOS,…

X-Security XS-IPB830ZSWHA-4P - 4Mpx IP PRO Camera, 1/3” Progressive CMOS,…

4Mpx IP PRO Camera - 1/3” Progressive CMOS - Compression H.265+ / H.265 / H.264+ / H.264 - Varifocal Motorized Lens 2.7~13.5 mm | WDR - Audio and Alarms| IR LEDs Range 60 m - Weatherproof IP67
€162.50 €250.00 Save 35%
Tax included
Reference XS-IPB830ZSWHA-4P
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-IPB830ZSWHA-4P - 4Mpx IP PRO Camera, 1/3” Progressive CMOS,…

X-Security XS-IPB830ZSWHA-4P - 4Mpx IP PRO Camera, 1/3” Progressive CMOS,…

€162.50 €250.00 Save 35%

You might also like

  • X-Security
  • IP camera
  • Pro range
  • 1/3" Progressive CMOS
  • 4 Megapixel (2688x1520)
  • 2.7~13.5 mm motorised varifocal autofocus lens
  • High sensitivity Starlight
  • 0.008 Lux
  • IR Array Range 60 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Weatherproof IP67
  • WDR
  • IR Cut
  • SD card recording
  • Intelligent detection: line crossing, intrusion
  • WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compatible

Features

  • 4Mpx IP PRO Camera
  • 1/3” Progressive CMOS
  • Compression H.265+ / H.265 / H.264+ / H.264
  • Varifocal Motorized Lens 2.7~13.5 mm | WDR
  • Audio and Alarms| IR LEDs Range 60 m
  • Weatherproof IP67

Specs

Brand X-Security
Image sensor 1/3” Progressive CMOS
Maximum resolution 4 Megapixel (2688x1520)
Main Stream rate 4Mpx (1 ~ 20fps)/3M(1 ~ 25/30fps)
Extra Stream rate D1/CIF(1 ~ 25/30fps)
Compression H.265+/H.265/H.264+/H.264
Bitrate H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Lens 2.7~13.5mm motorized HF
Minimum illumination 0.006Lux/F1.4(Color,1/3s,30IRE)
Infrared lighting 0 Lux / IR LEDs Array (60 m)
Image improvements WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, Motion Detection, ROI
Video analysis Line crossing | Area intrusion
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Internal memory Slot for MicroSD card, Max 128 GB
Remote access Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR
Interoperability ONVIF
Audio 1 Input / 1 Output
Alarms 1 Input / 1 Relay
Power DC 12 V / 1000 mA, PoE IEEE802.3af
Degree of protection Weatherproof IP67
Temp. operation -30º C ~ +60º C
Dimensions 244 mm (Fo) x 79 (An) x 76 (Al) mm
Weight 0.815 Kg

Package content

  • X-SECURITY IP camera
  • 3 plugs and 3 screws for mounting
  • Installation template
  • User instructions
  • CD with software and instructions

Data sheet

Weight
0.815 Kg
Power
DC 12 V / 1000 mA, PoE IEEE802.3af
Grado de protección
Impermeable IP67
Temp. operation
-30º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
244 mm (Fo) x 79 (An) x 76 (Al) mm
Transfer Rate
H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps
Power supply
DC 12 V / 1000 mA, PoE IEEE802.3af
Audio
1 input / 1 output
Image sensor
1/3” Progressive CMOS
Minimum illumination
0.006Lux/F1.4(Color,1/3s,30IRE)
Lens
2.7mm~13.5mm motorised AF
2.7~13.5mm motorized HF
Maximum resolution
4 Megapixel (2688x1520)
Infrared lighting
0 Lux / IR LEDs Array (60 m)
Image improvements
WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, Motion Detection, ROI
Day / Night
Removable mechanical ICR filter
Alarms
1 Input / 1 Relay
Internal memory
Slot for MicroSD card, Max 128 GB
Remote access
Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR
Main Stream rate
4Mpx (1 ~ 20fps)/3M(1 ~ 25/30fps)
Extra Stream rate
D1/CIF(1 ~ 25/30fps)
Compression
H.265+/H.265/H.264+/H.264
Network interface
Ethernet 10/100 BaseT
Video analysis
Line crossing | Area intrusion
Interoperability
ONVIF
Lente
2.7~13.5mm motorizada AF
