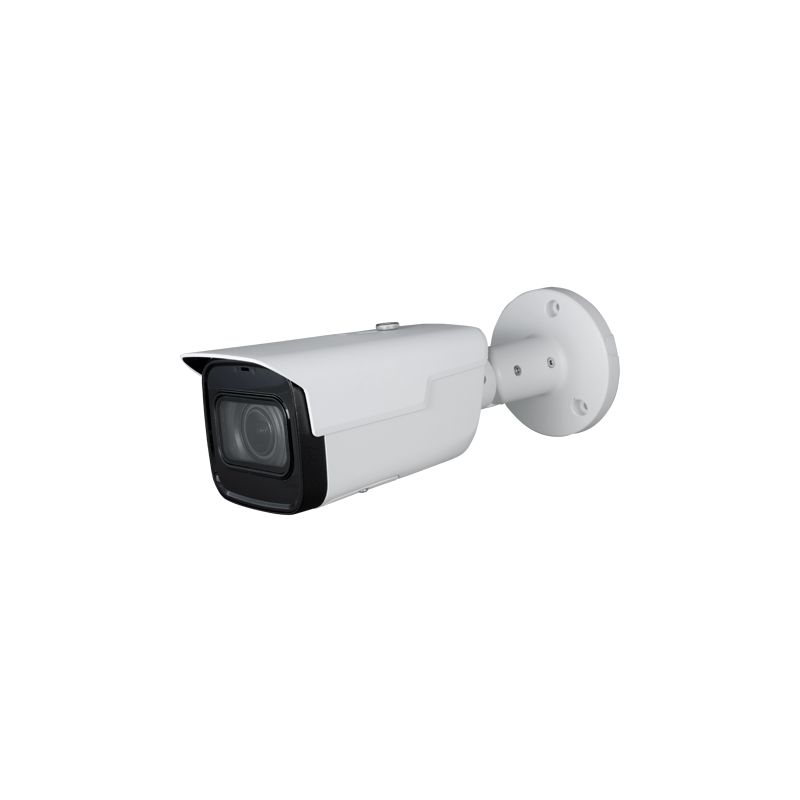

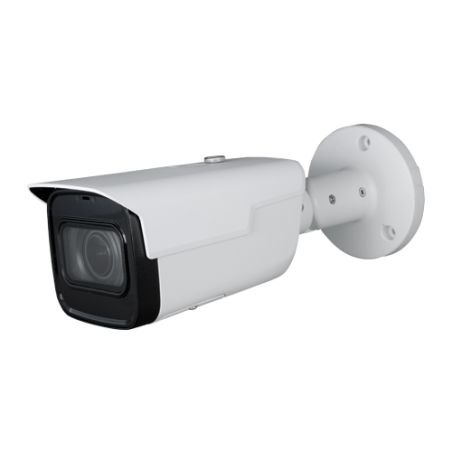

X-Security XS-IPB830ZSWHA-2P - 2Mpx IP PRO Camera, 1/2.8” Progressive CMOS,…

2Mpx IP PRO Camera - 1/2.8” Progressive CMOS - Compression H.265+ / H.265 / H.264+ / H.264 - Varifocal Motorized Lens 2.7~13.5 mm | WDR - Audio and Alarms| IR LEDs Range 60 m - Weatherproof IP67
€210.00
Tax included
Reference XS-IPB830ZSWHA-2P
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-IPB830ZSWHA-2P - 2Mpx IP PRO Camera, 1/2.8” Progressive CMOS,…

X-Security XS-IPB830ZSWHA-2P - 2Mpx IP PRO Camera, 1/2.8” Progressive CMOS,…

€210.00

You might also like

  • X-Security
  • IP camera
  • Pro range
  • 1/2.8" Progressive CMOS
  • 2 Megapixel (1920x1080)
  • 2.7~13.5 mm motorised varifocal autofocus lens
  • High sensitivity Starlight
  • 0.002 Lux
  • IR Array Range 60 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Weatherproof IP67
  • WDR
  • IR Cut
  • SD card recording
  • Intelligent detection: line crossing, intrusion
  • Audio
  • Alarms
  • WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compatible

Features

  • 2Mpx IP PRO Camera
  • 1/2.8” Progressive CMOS
  • Compression H.265+ / H.265 / H.264+ / H.264
  • Varifocal Motorized Lens 2.7~13.5 mm | WDR
  • Audio and Alarms| IR LEDs Range 60 m
  • Weatherproof IP67

Specs

Brand X-Security
Image sensor 1/2.8” Progressive CMOS
Maximum resolution 2 Megapixel (1920x1080)
Main Stream rate 1920x1080 (1~25/30 FPS)
Extra Stream rate 704x576 (1~25 FPS); 704x480 (1~30 FPS)
Compression H.265+/H.265/H.264+/H.264
Bitrate H.265: 12K ~ 6144Kbps
H.264: 32K ~ 6144Kbps
Lens 2.7~13.5mm motorized HF
Minimum illumination 0.002Lux/F1.5
Infrared lighting 0 Lux / IR LEDs Array (60 m)
Image improvements WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-DNR, Privacy Masking, Motion Detection, ROI
Video analysis Line crossing | Area intrusion
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Internal memory Slot for MicroSD card, Max 128 GB
Remote access Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR
Interoperability ONVIF
Audio 1 Input / 1 Output
Alarms 1 Input / 1 Relay
Power DC 12 V / 1000 mA, PoE IEEE802.3af
Degree of protection Weatherproof IP67
Temp. operation -30º C ~ +60º C
Dimensions 244 mm (Fo) x 79 (An) x 76 (Al) mm
Weight 0.9 Kg

Package content

  • X-SECURITY IP camera
  • 3 plugs and 3 screws for mounting
  • Installation template
  • User instructions
  • CD with software and instructions

Data sheet

Weight
0.9 Kg
Power
DC 12 V / 1000 mA, PoE IEEE802.3af
Grado de protección
Impermeable IP67
Temp. operation
-30º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
244 mm (Fo) x 79 (An) x 76 (Al) mm
Transfer Rate
H.265: 12K ~ 6144Kbps H.264: 32K ~ 6144Kbps
Power supply
DC 12 V / 1000 mA, PoE IEEE802.3af
Audio
1 input / 1 output
Image sensor
1/2.8” Progressive CMOS
Minimum illumination
0.002Lux/F1.5
Lens
2.7~13.5mm motorized HF
Maximum resolution
2 Megapixel (1920x1080)
Infrared lighting
0 Lux / IR LEDs Array (60 m)
Image improvements
WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-DNR, Privacy Masking, Motion Detection, ROI
Day / Night
Removable mechanical ICR filter
Alarms
1 Input / 1 Relay
Internal memory
Slot for MicroSD card, Max 128 GB
Remote access
Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR
Main Stream rate
1920x1080 (1~25/30 FPS)
Extra Stream rate
704x576 (1~25 FPS), 704x480 (1~30 FPS)
Compression
H.265+/H.265/H.264+/H.264
Network interface
Ethernet 10/100 BaseT
Video analysis
Line crossing | Area intrusion
Interoperability
ONVIF
Lente
2.7~13.5mm motorizada AF
